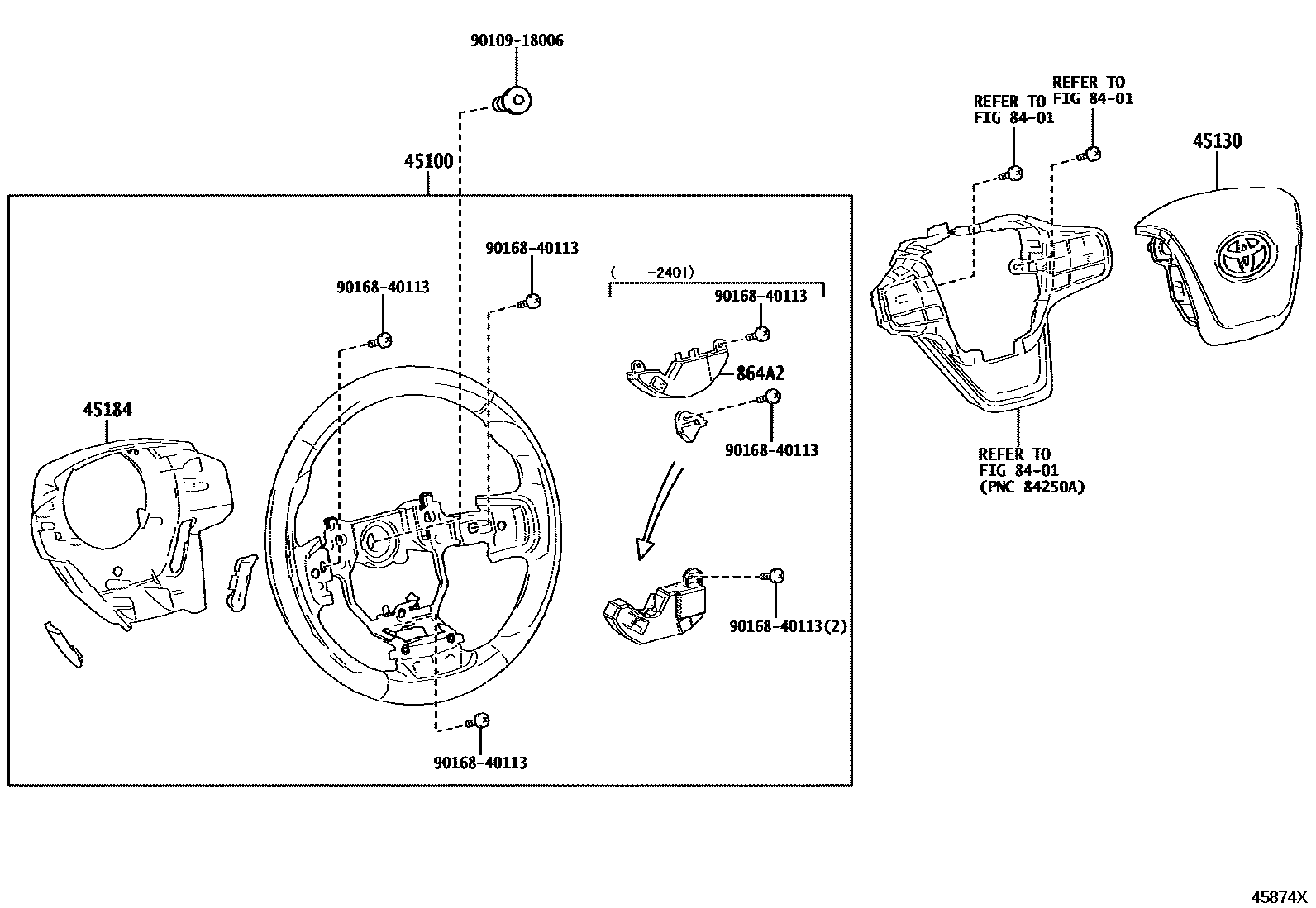

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-62080-C2iJPD20202108-202304

3-SPOKE,LEATHER,BLACK,TRIM2#

main45100-62120-C0iJPD20202401-202411

3-SPOKE,LEATHER,BLACK,TRIM2#

45130BUTTON ASSY, HORN

main45130-62040-C0iJPD20202108-202212

BLACK,TRIM2#

main45130-62070-C0iJPD20202212-202304

BLACK,TRIM2#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-62020-C0iJPD20202401-202411

BLACK,TRIM2#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

864A2COMPUTER, STEERING VIBRATION

main864A1-33010iJPD20202108-202304

main864A1-78040iJPD20202401-202411

9010918006

main90109-18006

9016840113

main90168-40113

7 parts on this diagram · 1 diagram in section
