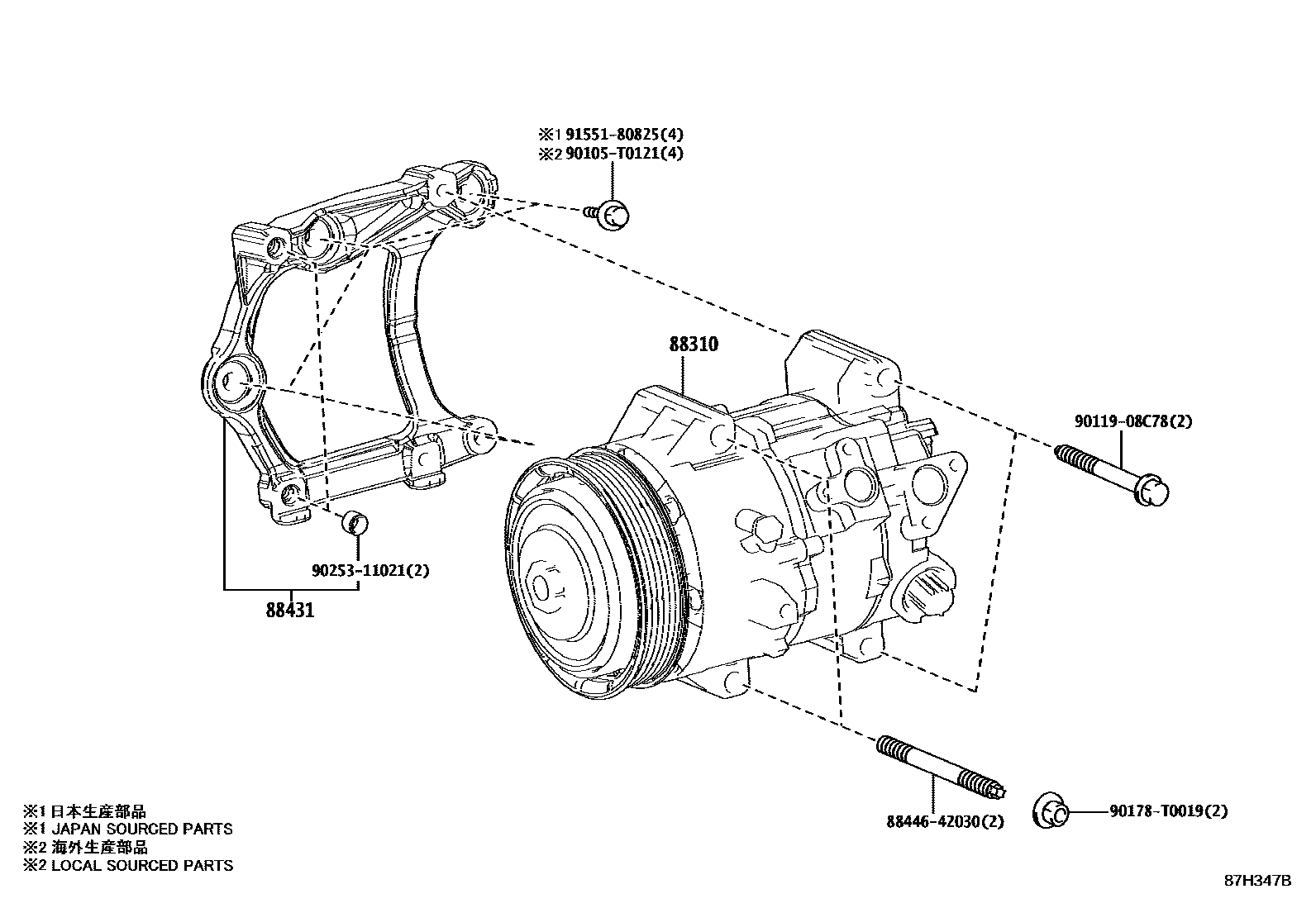

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1VARIABLE DISPLACEMENT TYPE 0002 1FIXED DISPLACEMENT TYPE 0003 1 0004 1

88310COMPRESSOR ASSY, W/PULLEY

main88310-06580iASV71..MA,VN;ASV7#..20,25G,25Q,25V201810-202110

main88310-06630iAXVA70201810-202110

main88310-06680iMXVA71202111

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main12502-36010iASV7#201810-202110

8844642030BOLT, IDLE PULLEY

main88446-42030

90105T0121

main90105-T0121

9011908C78

main90119-08C78

90178T0019

main90178-T0019

9025311021

main90253-11021

9155180825

main91551-80825

8 parts on this diagram · 4 diagrams in section
