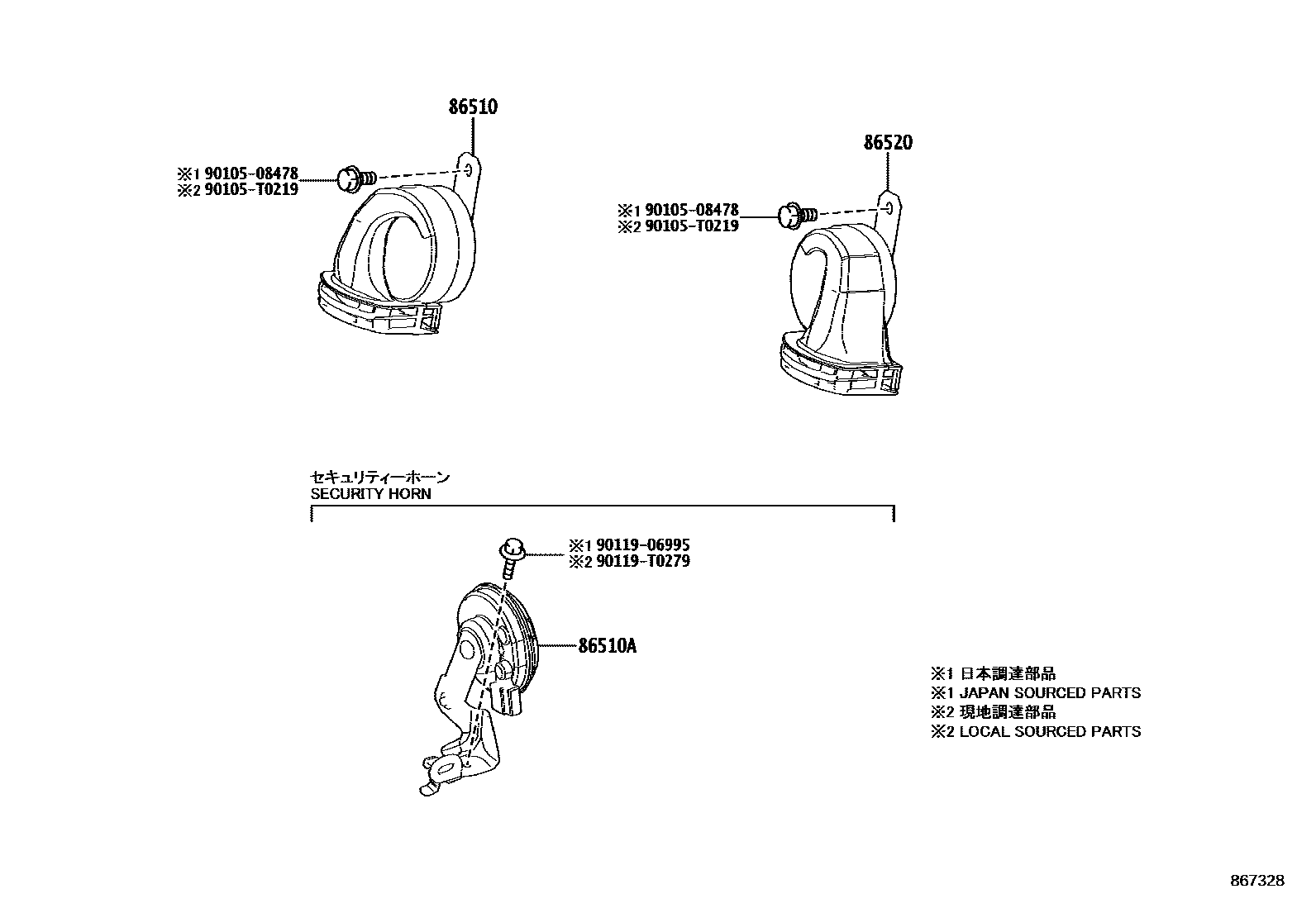

HORN

0001 1 0002 1

86510HORN ASSY, HIGH PITCHED

main86510-06260iASV7#,AXVA70,AXVH71..IDN,MA,PH,TH201810-202110

main86510-26130iAXVA70,MXVA71..LHD; AXVH71..LHD202111-202302

VIETNAM SPEC

main86510-26131iAXVA70,MXVA71..LHD; AXVH71..LHD202303

VIETNAM SPEC

main86510-33250iAXVH71..IND201812-202112

main86510-33300iASV7#..VN201810-202110

86510AHORN ASSY, SECURITY

main86560-06110iASV7#,AXVA70,AXVH71..IDN,PH,TH,VN201810-202110

main86560-06220iAXVH71..IND201812-202112

main86560-33060iASV7#..MA201810-202110

86520HORN ASSY, LOW PITCHED

main86520-06250iASV7#,AXVA70,AXVH71..IDN,MA,PH,TH201810-202110

main86520-12740iASV7#..VN201810-202110

main86520-26200iAXVA70,MXVA71..LHD; AXVH71..LHD202111-202302

VIETNAM SPEC

main86520-26201iAXVA70,MXVA71..LHD; AXVH71..LHD202303

VIETNAM SPEC

main86520-33210iAXVH71..IND202112

9010508478

main90105-08478

90105T0219

main90105-T0219

9011906995

main90119-06995

90119T0279

main90119-T0279

7 parts on this diagram · 2 diagrams in section
