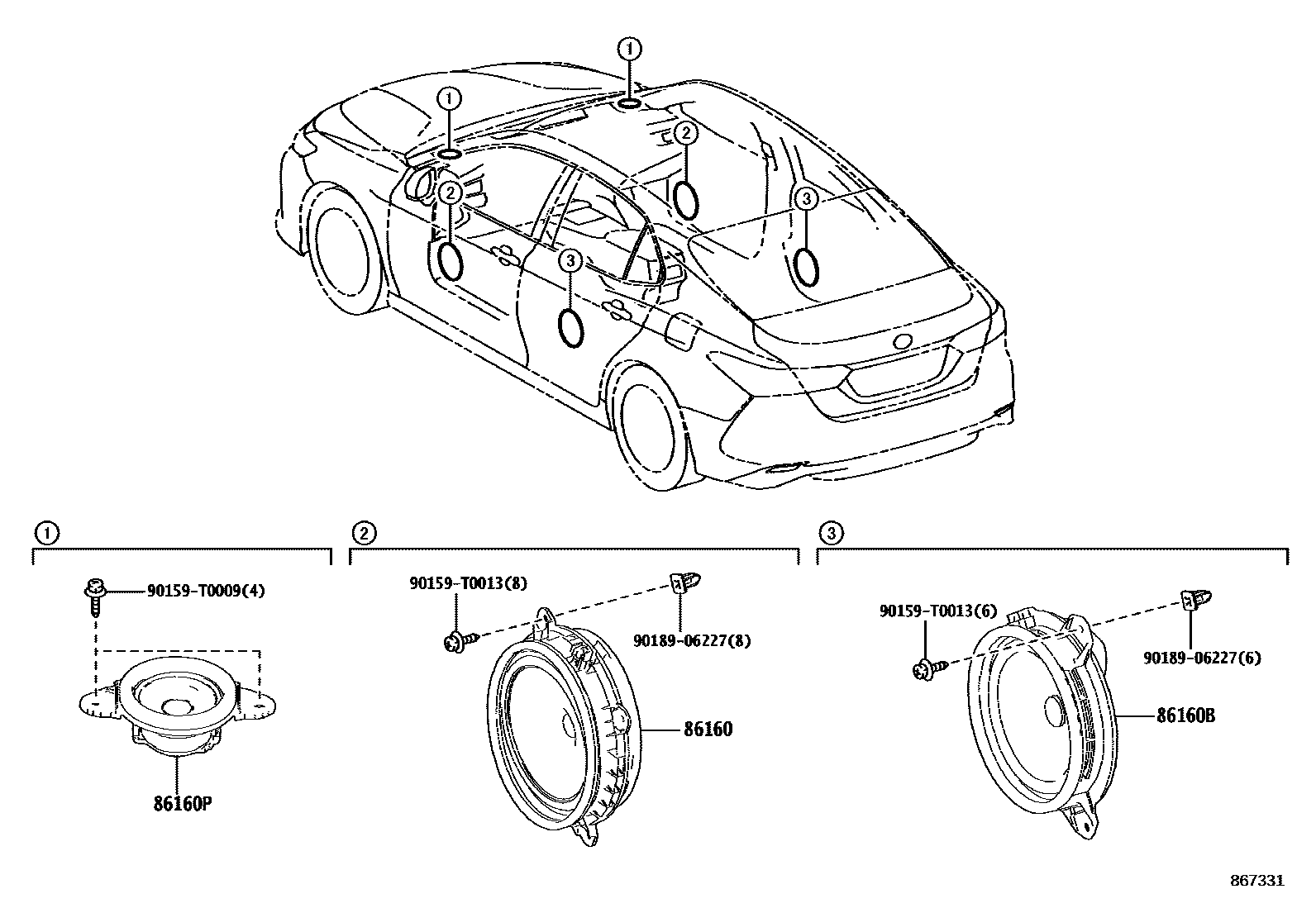

SPEAKER
86160SPEAKER ASSY, FRONT NO.1
main86160-06A00×2supersedes 86160-33A10iASV7#,AXVA70,AXVH71..(20G,25,25G,25V,HBDG)..(IDN,PH,TH,VN); ASV71..20201810-202110
SINGAPORE SPEC
main86160-33A10×2iASV70..25V..IDN; ASV71,AXVH71..IDN,MA;ASV7#..(20,25Q,25V)..(MA,TH,VN)201810-202110
BRUNEI SPEC
86160BSPEAKER ASSY, REAR
main86160-02D31×2iAXVA70,AXVH71,MXVA71..20G,25,25E,25G,HBDG; AXVA70,AXVH71,MXVA71..20Q,25Q,25V,HBD,HBDV; AXVH71..RHD..HBDV202312
AUDIO-8INCH DISPLAY & *DA & 6SPEAKAR; AUDIO-9INCH DISPLAY & *DA & 6SPEAKAR
main86160-0K220×2iASV7#,AXVA70,AXVH71..(20G,25,25G,25V,HBDG)..(IDN,PH,TH,VN); ASV71..20201810-202110
SINGAPORE SPEC
86160PSPEAKER ASSY, FRONT NO.2
main86160-06720×2supersedes 86160-33A30iASV7#,AXVA70,AXVH71..(20G,25,25G,25V,HBDG)..(IDN,PH,TH,VN); ASV71..20201810-202110
SINGAPORE SPEC
main86160-33A30×2iASV70..25V..IDN; ASV71,AXVH71..IDN,MA;ASV7#..(20,25Q,25V)..(MA,TH,VN)201810-202110
BRUNEI SPEC
90159T0009
main90159-T0009
90159T0013
main90159-T0013
9018906227
main90189-06227
6 parts on this diagram · 2 diagrams in section
