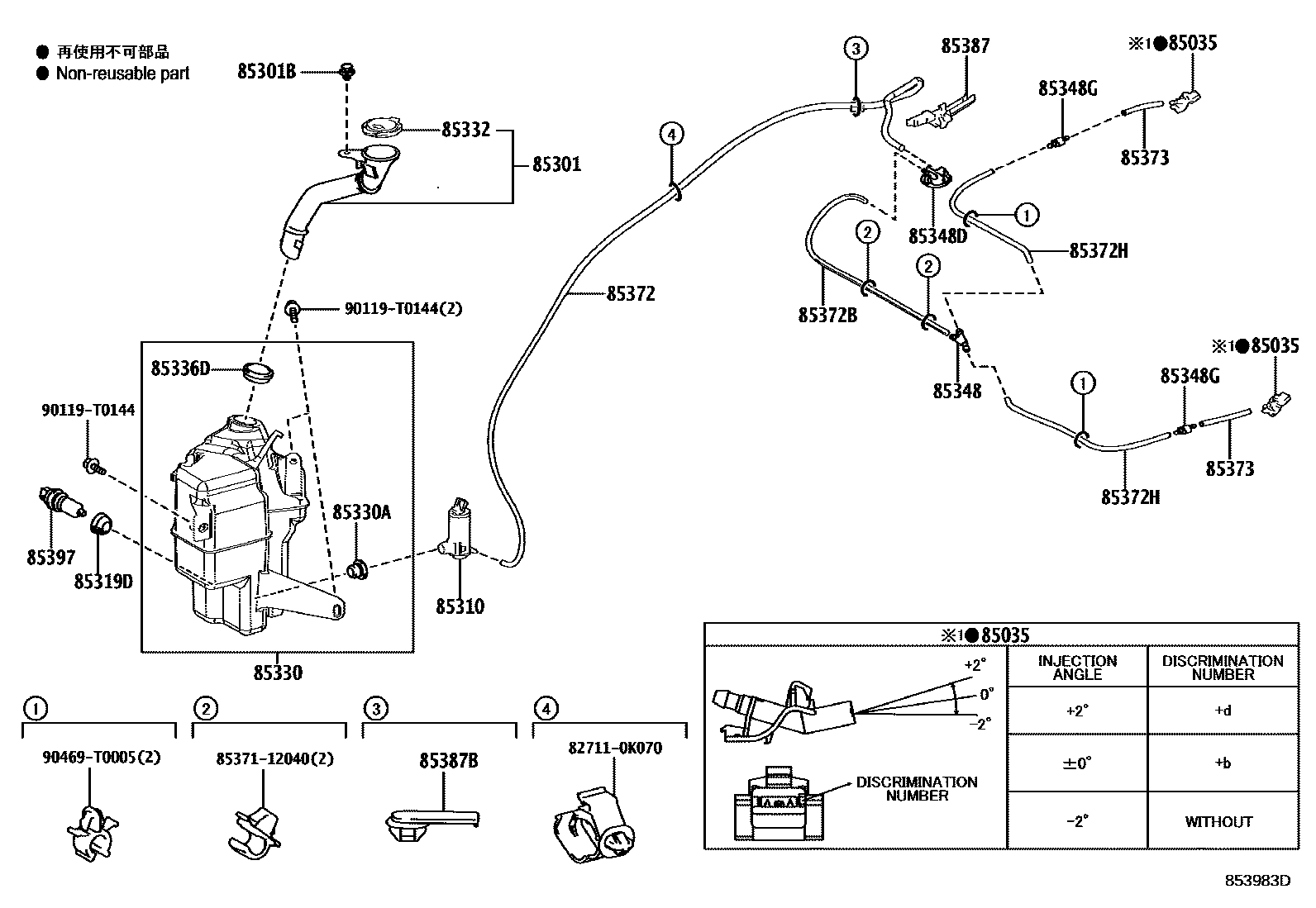

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-0K070×2iAXVA70,AXVH71,MXVA71202111

ANGLE 0

main85381-0K080×2iAXVA70,AXVH71,MXVA71202111

ANGLE -2

main85381-0K090×2iAXVA70,AXVH71,MXVA71202111

ANGLE +2

85301INLET SUB-ASSY, WASHER

main85319-06310iASV7#,AXVA70,AXVH71201810-202109

main85319-06311iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)202109-202110

85301BCLIP, WASHER

main90467-07214iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0K011iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main85330-0K012iAXVA70,AXVH71,MXVA71202207

85319DPACKING, FRONT WASHER

main85319-33230iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

85330JAR ASSY, WINDSHIELD WASHER

main85315-06310iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

85332CAP, WINDSHIELD WASHER JAR

main85316-06311iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)202109-202110

main85316-24130iASV7#,AXVA70,AXVH71201810-202109

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85378-33410iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85373-30030iAXVA70,AXVH71,MXVA71202403

main85373-33030iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85321-26020×2iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33123iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

L=4215

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-33328iAXVA70,AXVH71,MXVA71202111

L=620

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90068-33327×2iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

L=370

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33329×2iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

L=60

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85371-06040iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

85387BCLAMP, WASHER, NO.3

main82711-52090iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

85397SWITCH ASSY,LEVEL WARNING

main85397-52100iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

827110K070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-0K070

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

90119T0144

main90119-T0144

90469T0005

main90469-T0005

23 parts on this diagram · 1 diagram in section
