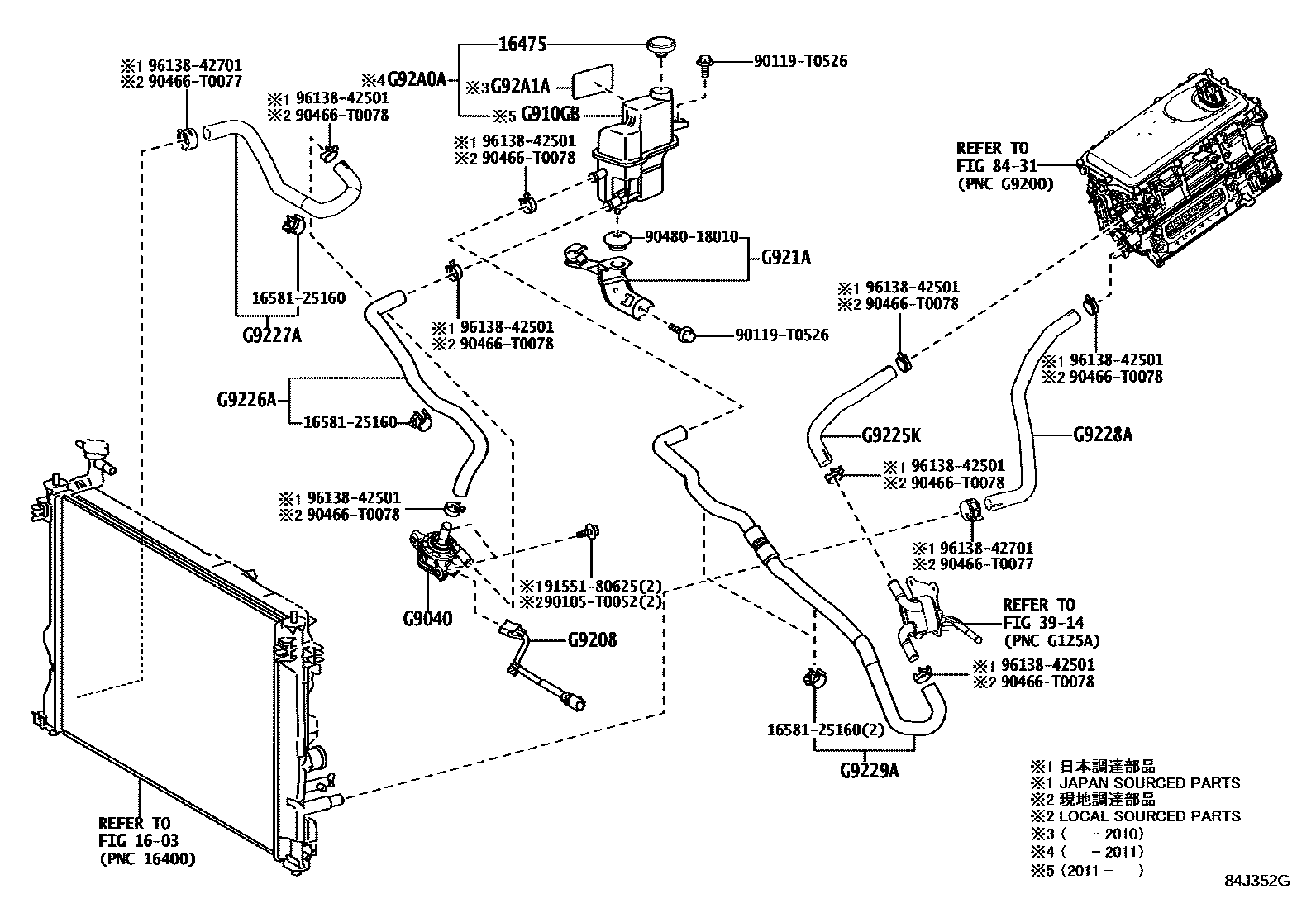

INVERTER COOLING

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16475CAP, RESERVE TANK

main16475-28140iA25AFXS..AXVH71..IDN201810-202112

3914OIL COOLER & TUBE (HEV OR BEV OR FCEV)

→ Go to FIG 39-14

8431HEV INVERTER

→ Go to FIG 84-31

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904033050iAXVH71..IDN201810-202112

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G33010iAXVH71..IDN202011-202112

G9208WIRE SUB-ASSY, INVERTER

mainG920806030iAXVH71..IDN201810-202112

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H206030iAXVH71..IDN201810-202310

mainG91H206031iAXVH71202311

G9225KHOSE, INVERTER COOLING, NO.1

mainG922506090iAXVH71..IDN201810-202112

G9226AHOSE, INVERTER COOLING, NO.2

mainG922606050iAXVH71201810-202001

mainG922606051iAXVH71..IDN202002-202112

G9227AHOSE, INVERTER COOLING, NO.3

mainG922706050iAXVH71201810-202001

mainG922706051iAXVH71..IDN202002-202112

G9228AHOSE, INVERTER COOLING, NO.4

mainG922806100iAXVH71..IDN201810-202112

G9229AHOSE, INVERTER COOLING, NO.5

mainG922906060iAXVH71201810-202008

mainG922906061iAXVH71..IDN202009-202112

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H033010iAXVH71201810-202011

G92A1ALABEL, HYBRID COOLANT SYSTEM INFORMATION

mainG92A176010iAXVH71201810-202010

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160

90105T0052

main90105-T0052

90119T0526

main90119-T0526

90466T0077

main90466-T0077

90466T0078

main90466-T0078

9048018010

main90480-18010

9155180625

main91551-80625

9613842501

main96138-42501

9613842701

main96138-42701

24 parts on this diagram · 1 diagram in section
