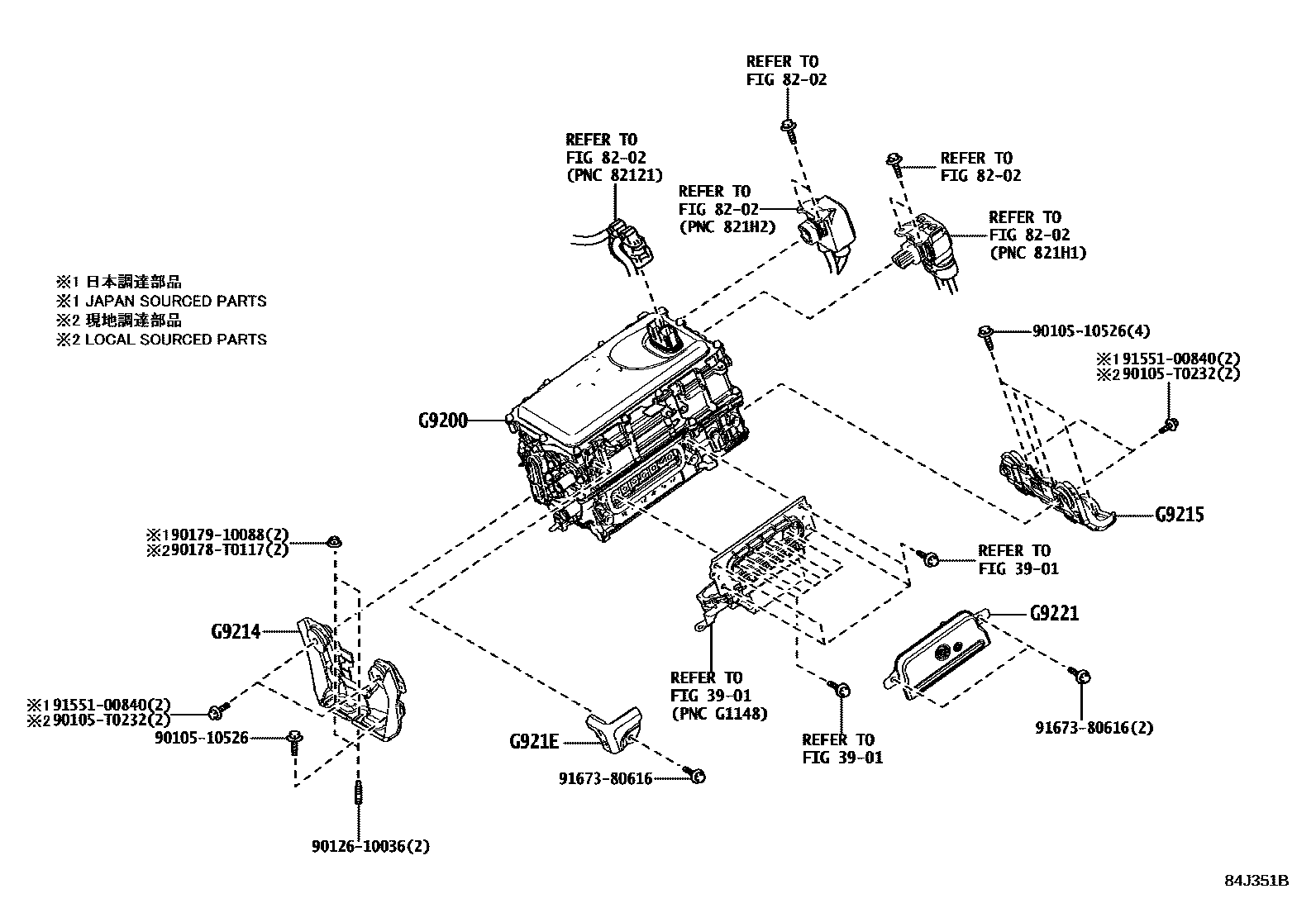

HEV INVERTER

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

G9200INVERTER ASSY, W/CONVERTER

mainG92A033031iAXVH71201810-202106

mainG92A033032iAXVH71..IDN202107-202204

mainG92A033033iAXVH71202205

G9214BRACKET, INVERTER, NO.1

mainG921433040iAXVH71..IDN201810-202112

G9215BRACKET, INVERTER, NO.2

mainG921533040iAXVH71..IDN201810-202112

G921EPROTECTOR, INVERTER

mainG921E47010iAXVH71..IDN201810-202112

G9221COVER, INVERTER

mainG902247050iAXVH71..IDN201810-202112

9010510526

main90105-10526

90105T0232

main90105-T0232

9012610036

main90126-10036

90178T0117

main90178-T0117

9017910088

main90179-10088

9155100840

main91551-00840

9167380616

main91673-80616

14 parts on this diagram · 1 diagram in section
