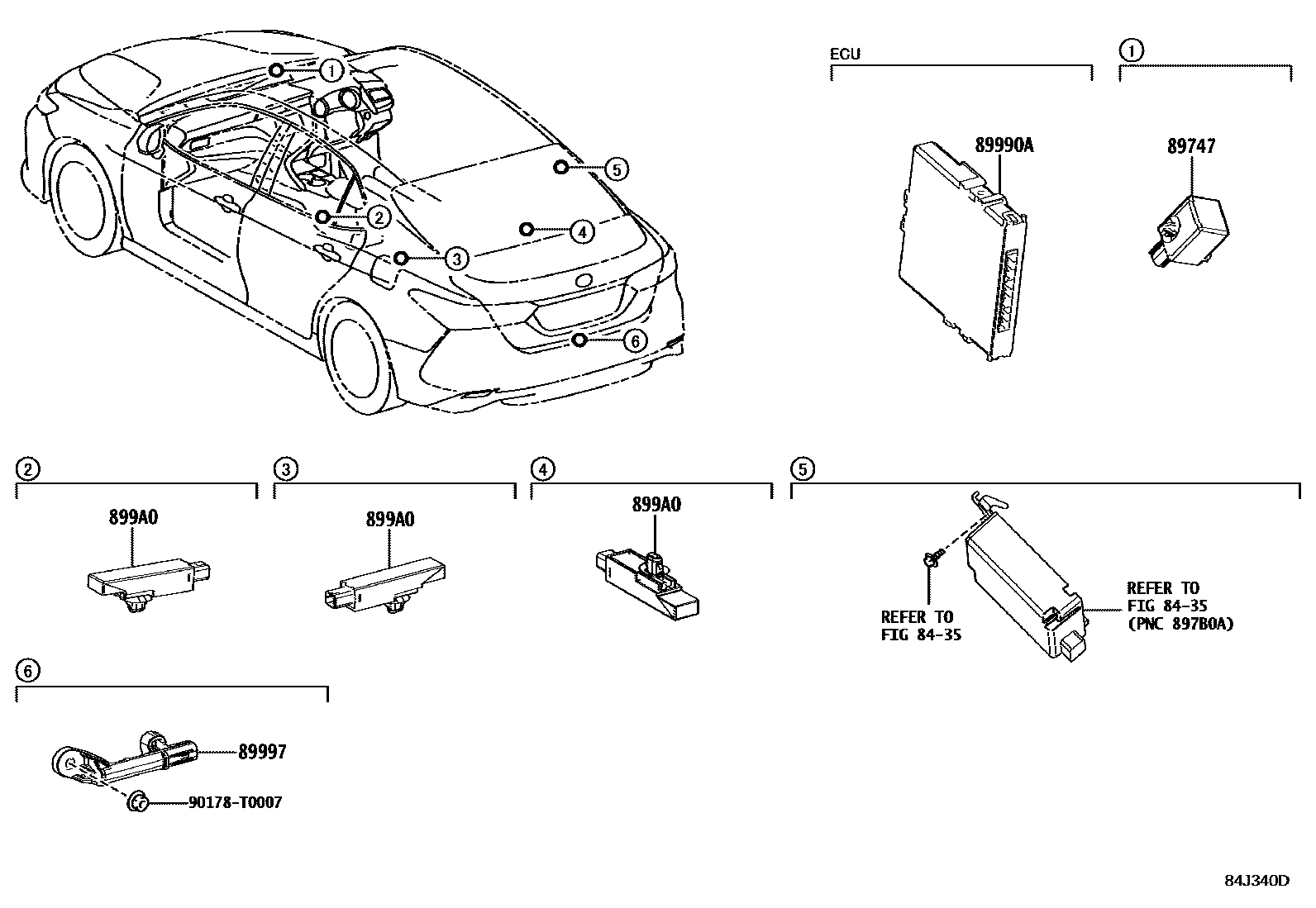

WIRELESS DOOR LOCK

0001 1 0002 1

8435TIRE PRESSURE WARNING SYSTEM

→ Go to FIG 84-35

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

89990ACOMPUTER ASSY, SMART KEY

main89990-33660iASV7#,AXVA70201810-202110

main89990-33700iAXVH71..IDN,TH201810-202110

main89990-33710iAXVH71..IND201812-202112

main89990-33790iAXVA70,MXVA71..20G,20Q,25E,25G,25Q,25V202111

main89990-33800iAXVH71..TH202111

main89990-33B40iAXVH71..IND202112

main89990-33B70iAXVA70..25202111-202212

main89990-33B71iAXVA70..25202301

main89990-33B80iAXVH71..RHD..HBDV202111-202212

INDONESIA SPEC

main89990-33B81iAXVH71..RHD..HBDV202301

INDONESIA SPEC

89997ANTENNA, ELECTRICAL KEY

main89997-30100iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-02070×3iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

90178T0007

main90178-T0007

6 parts on this diagram · 2 diagrams in section
