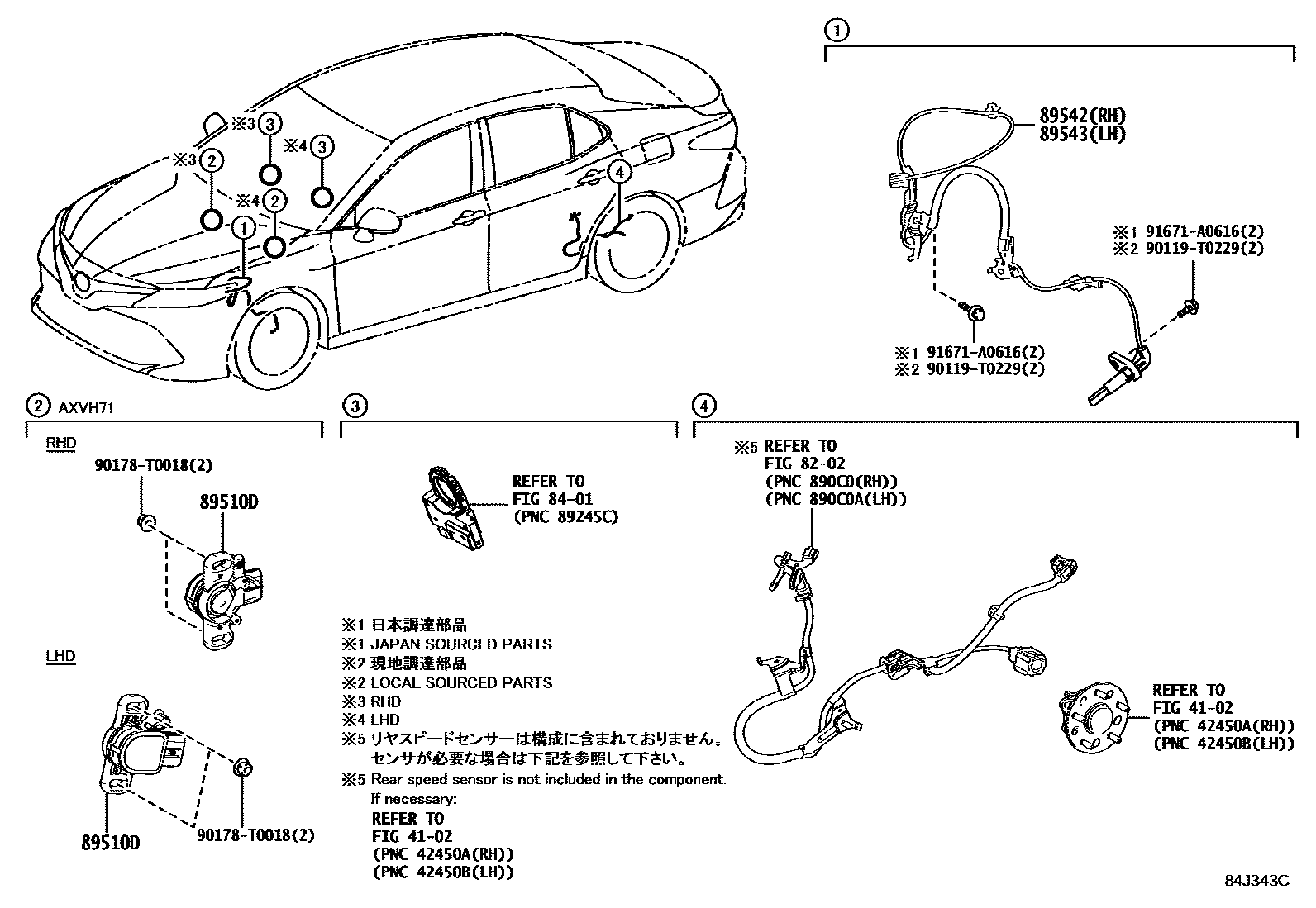

ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-47030iAXVH71..IDN201810-202110

main89510-47040iAXVH71..LHD202111

89542SENSOR, SPEED, FRONT RH

main89542-06090iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

89543SENSOR, SPEED, FRONT LH

main89543-06090iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

90119T0229

main90119-T0229

90178T0018

main90178-T0018

91671A0616

main91671-A0616

9 parts on this diagram · 1 diagram in section
