ELECTRONIC FUEL INJECTION SYSTEM

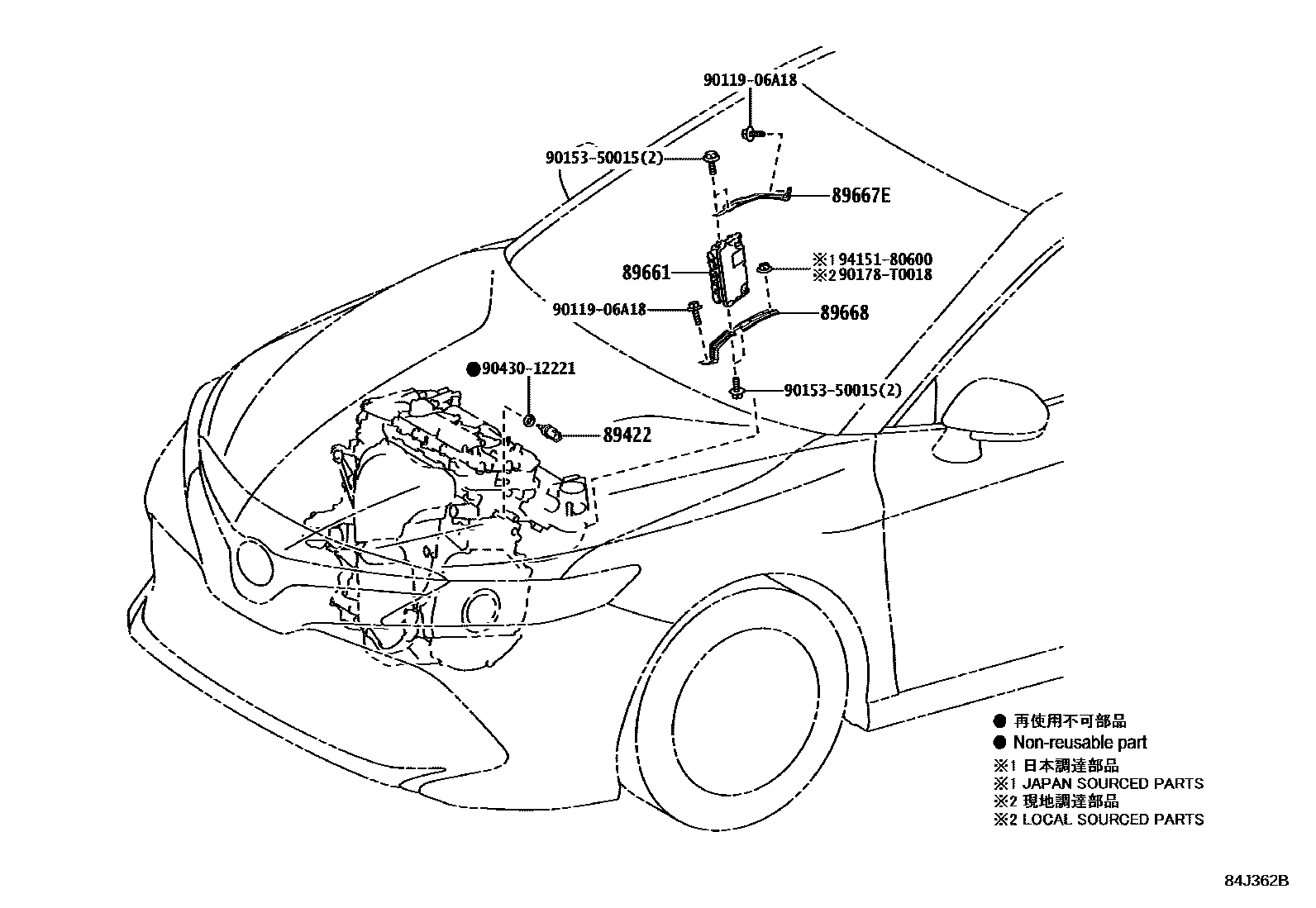

Parts diagram
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
main89422-33030i201810-202110
89661COMPUTER, ENGINE CONTROL
main89661-06P00i201812-202112
DENSO
main89661-06Y60i201810-202110
DENSO
main89661-06Y70i201810-202110
DENSO
main89661-06Z10i201810-202110
DENSO
main89661-06Z20i201810-202110
DENSO
main89661-06Z90i201810-202110
DENSO
main89661-0X150i201810-201911
DENSO
main89661-0X151i201912-202110
DENSO
main89661-0X160i201810-201911
DENSO
main89661-0X161i201912-202110
DENSO
main89661-0XA00i202111
DENSO
main89661-0XA10i202111
DENSO
main89661-0XA10i202111
DENSO,MYANMAR SPEC
main89661-0XA10i202111
DENSO,LAOS SPEC
main89661-0XA20i202111
DENSO
main89661-0XA30i202111
DENSO
main89661-0XA40i202111
DENSO,BURNEI SPEC
main89661-0XA40i202111
DENSO,INDONESIA SPEC
main89661-0XA40i202111
DENSO
main89661-0XA50i202112
DENSO
main89661-0XA60i202111
DENSO
89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1
main89667-06300i201810-202407
main89667-06300i202407
(L)
main89667-06310i202407
(L)
main89667-06310i201810-202407
main89667-06330i201810-202110
main89667-33190i202407
(J)
main89667-33200i202407
(J)
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
main89668-06300i201810-202407
main89668-06300i202407
(L)
main89668-06330i201810-202110
main89668-06360i201810-202407
main89668-06360i202407
(L)
main89668-33240i202407
(J)
main89668-33250i202407
main89668-33290i202407
(J)
9011906A18
main90119-06A18
9015350015
main90153-50015
90178T0018
main90178-T0018
9043012221
main90430-12221
9415180600
main94151-80600

9 parts on this diagram · 5 diagrams in section
