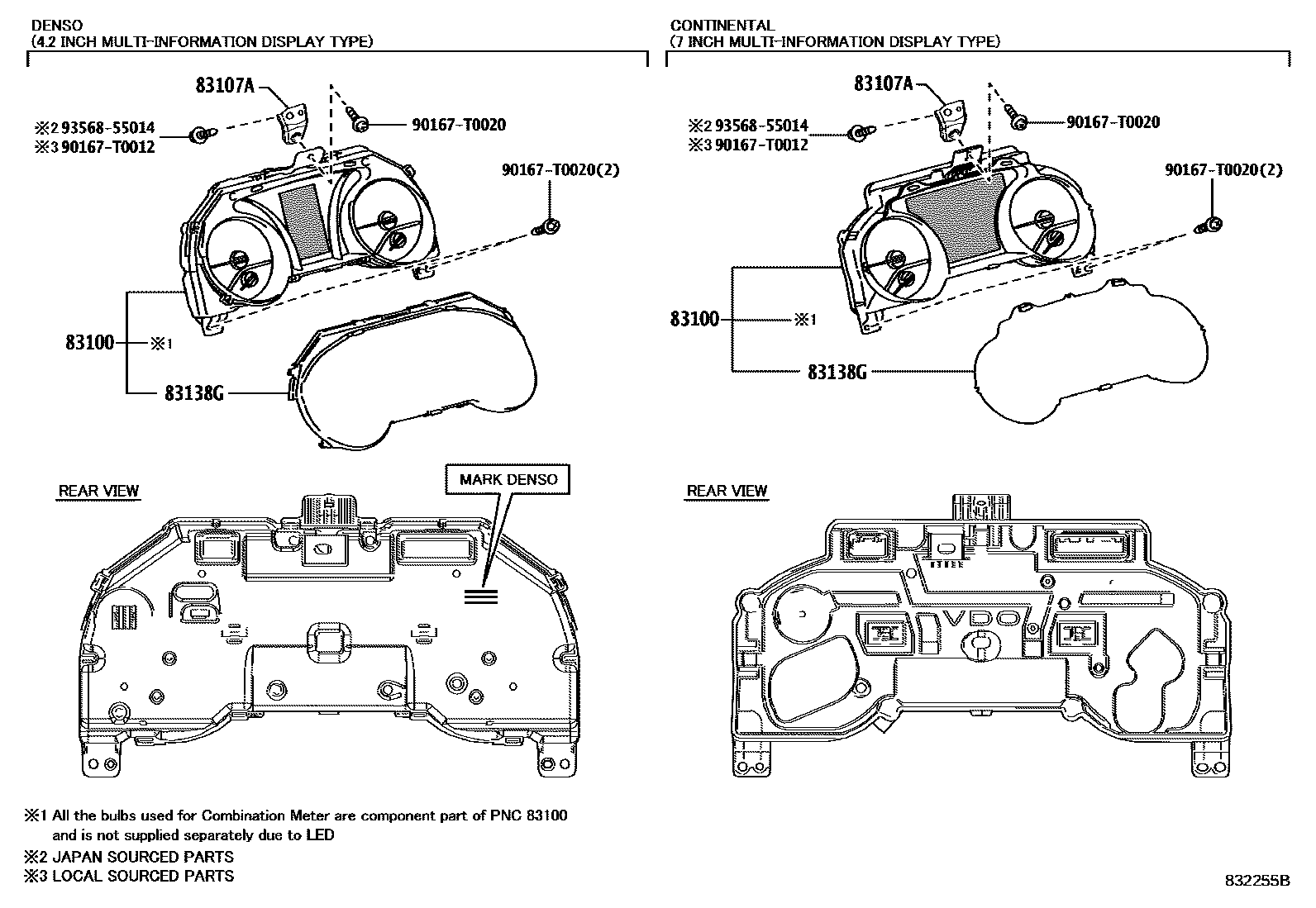

METER

0001 1COMBINATION METER 0003 1COMBINATION METER 0005 1HEAD UP DISPLAY 0006 1HEAD UP DISPLAY

83100METER ASSY, COMBINATION

main83800-0XF30iAXVH71201810-201902

CONTINENTAL

main83800-0XF31iAXVH71201903-201905

CONTINENTAL

main83800-0XF32iAXVH71..RHD..(IND,TH)201906-202112

CONTINENTAL

main83800-0XF33iAXVH71202111

CONTINENTAL

main83800-0XF50iASV70..IDN;ASV70..25G..PH201810-201811

DENSO

main83800-0XF51iASV70..IDN;ASV70..25G..PH201812-202110

DENSO

main83800-0XF62iAXVA70..25E,25G202111

CONTINENTAL

main83800-0XF70iASV71..20; ASV71..VN201810-201811

DENSO; DENSO,SINGAPORE SPEC

main83800-0XF71iASV71..20; ASV71..VN201812-202110

DENSO; DENSO,SINGAPORE SPEC

main83800-0XK70iAXVA70..25G201810-201902

CONTINENTAL

main83800-0XK71iAXVA70..25G201903-202110

CONTINENTAL

main83800-0XK72iAXVA70..25Q,25V202111

CONTINENTAL

main83800-0XK80iASV71..20;ASV71..MA201810-201902

CONTINENTAL

main83800-0XK81iASV71..20;ASV71..MA201903-202110

CONTINENTAL

main83800-0XK90iAXVA70..25201810-201811

DENSO

main83800-0XK91iAXVA70..25201812-202110

DENSO

main83800-0XK92iAXVA70,MXVA71..20G,25202111

DENSO

main83800-0XM80iASV70..(25Q,25V)..(MA,PH,VN)201810-201902

CONTINENTAL

main83800-0XM81iASV70..(25Q,25V)..(MA,PH,VN)201903-202110

CONTINENTAL

main83800-0XM82iMXVA71..20Q202111

CONTINENTAL

main83800-0XN00iASV71..20G..TH201810-201811

DENSO

main83800-0XN01iASV71..20G..TH201812-202110

DENSO

main83800-0XF60iASV70..25V..IDN201810-201902

CONTINENTAL,BRUNEI SPEC

main83800-0XF61iASV70..25V..IDN201903-202110

CONTINENTAL,BRUNEI SPEC

83107ABRACKET SUB-ASSY, METER, NO.1

main83107-06050iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main83107-33010iASV7#..LHD201810-202110

83138GGLASS, COMBINATION METER

main83852-0XF60iASV70..25V..IDN; ASV71..MA;ASV70..(25Q,25V)..(MA,PH,VN);ASV71,AXVH71..(20,HBD)..(IDN,TH)201810-202110

BRUNEI SPEC

main83852-0XN00iASV70..IDN;ASV70..25G..PH;ASV71,AXVA70..(20G,25)..(TH,VN); ASV71..20201810-202110

SINGAPORE SPEC

90167T0012

main90167-T0012

90167T0020

main90167-T0020

9356855014

main93568-55014

6 parts on this diagram · 4 diagrams in section
