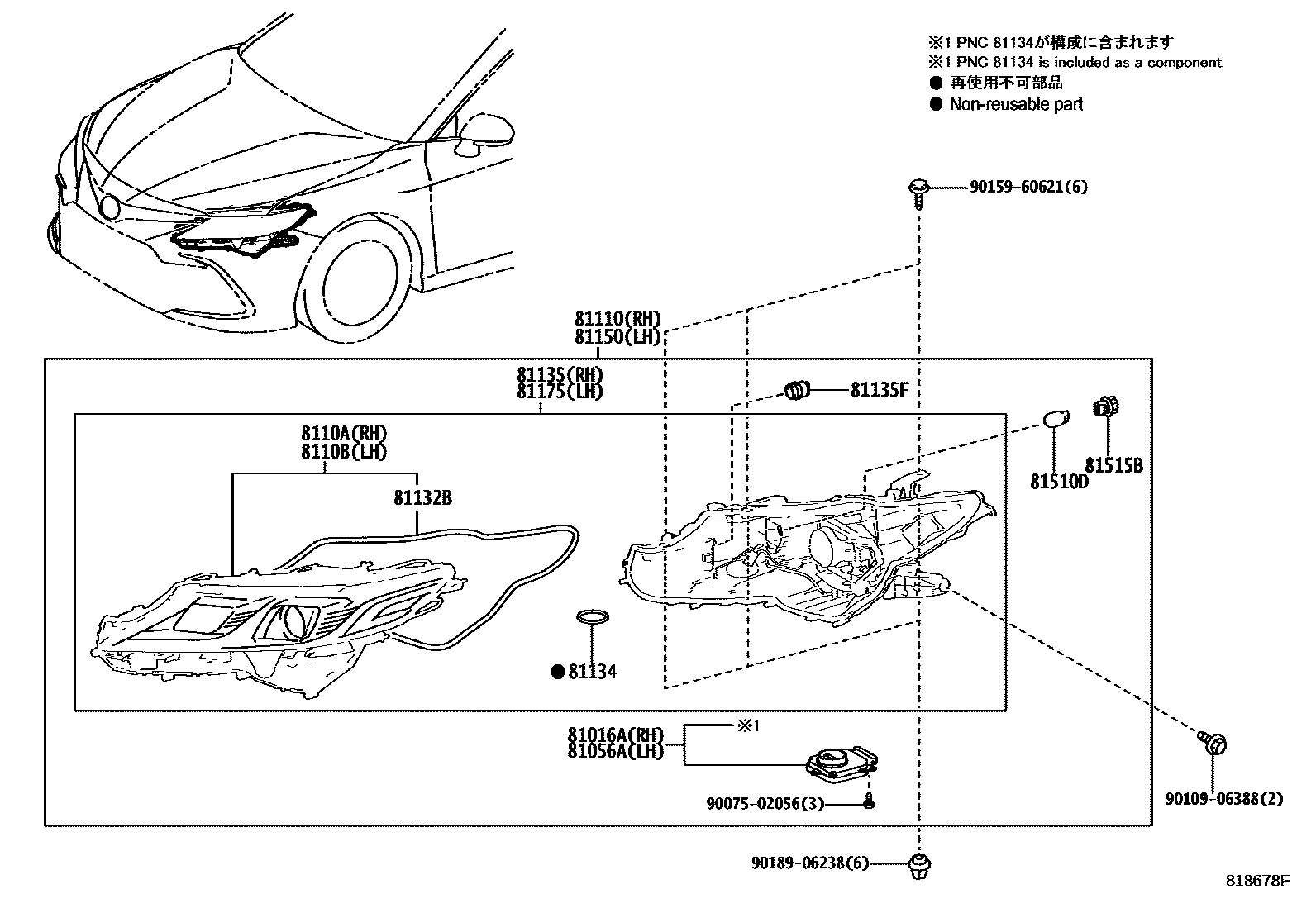

HEADLAMP

0001 1TURN SIGNAL LAMP = BULB TYPE 0002 1TURN SIGNAL LAMP = LED TYPE

81016ACOMPUTER SUB-ASSY, HEADLAMP, RH

main81016-06E80iASV70..IDN;ASV7#,AXVA70..(20,20G,25,25G)..(MA,PH,TH,VN)201810-202110

main81016-06F00iAXVH71..IDN;ASV70..(25Q,25V)..(MA,PH,VN)201810-202110

main81016-06G60iAXVA70,AXVH71,MXVA71..20Q,25E,25G,25Q,25V,HBD,HBDG,HBDV202111

81056ACOMPUTER SUB-ASSY, HEADLAMP, LH

main81056-06E80iAXVA70,MXVA71..20G,25202111

main81056-06F00iAXVH71..RHD..(IND,TH)201810-202112

main81056-06G60iAXVA70,AXVH71,MXVA71..20Q,25E,25G,25Q,25V,HBD,HBDG,HBDV202111

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-06E80iASV70..IDN;ASV7#,AXVA70..(20,20G,25,25G)..(MA,PH,TH,VN)201810-202110

main8110A-06F10iAXVH71201810-202111

main8110A-06G60iASV70..(25Q,25V)..(MA,PH,VN)201810-202110

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-06E80iASV70..IDN;ASV7#,AXVA70..(20,20G,25,25G)..(MA,PH,TH,VN)201810-202110

main8110B-06F10iAXVH71201810-202111

main8110B-06G60iAXVA70,AXVH71,MXVA71..20Q,25E,25G,25Q,25V,HBD,HBDG,HBDV202111

81110HEADLAMP ASSY, RH

main81110-06E80iAXVA70..25202111

main81110-06E90iASV7#..LHD..(20G,25G)201810-202110

main81110-06F00iASV70..LHD..(25Q,25V)201810-202110

main81110-06F10iAXVH71..IDN201810-202110

main81110-06F50iASV70..MA201810-202110

main81110-06G60iAXVA70,AXVH71..RHD..(25E,25G,25V,HBD,HBDG,HBDV)202111

main81110-06G70iAXVA70,AXVH71,MXVA71..LHD..(20Q,25Q,HBDV)202111

81132BGASKET, HEADLAMP LENS

main81132-48C30×2iASV7#,AXVA70,AXVH71201810-202111

81134GASKET, HEADLAMP

main90075-23003iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

81135UNIT ASSY, HEADLAMP, RH

main81145-06E80iAXVA70..25202111

main81145-06E90iASV7#..LHD..(20G,25G)201810-202110

main81145-06F00iASV70..LHD..(25Q,25V)201810-202110

main81145-06F10iAXVH71..IDN201810-202110

main81145-06F50iASV70..MA201810-202110

main81145-06G60iAXVA70,AXVH71..RHD..(25E,25G,25V,HBD,HBDG,HBDV)202111

main81145-06G70iAXVA70,AXVH71,MXVA71..LHD..(20Q,25Q,HBDV)202111

81135FCOVER, HEADLAMP BACK

main81135-22B70×2iAXVA70,MXVA71..20G,25202111

main90075-66017×2iAXVH71..RHD..(IND,TH)201810-202112

81150HEADLAMP ASSY, LH

main81150-06E80iASV71..RHD;ASV70,AXVA70..IDN,TH201810-202110

main81150-06E90iMXVA71..20G202111

main81150-06F00iASV70..LHD..(25Q,25V)201810-202110

main81150-06F10iAXVH71..RHD..(IND,TH)201810-202112

main81150-06F50iASV70..MA201810-202110

main81150-06G60iAXVA70,AXVH71..RHD..(25E,25G,25V,HBD,HBDG,HBDV)202111

main81150-06G70iAXVA70,AXVH71,MXVA71..LHD..(20Q,25Q,HBDV)202111

81175UNIT ASSY, HEADLAMP, LH

main81185-06E80iAXVA70..25202111

main81185-06E90iASV7#..LHD..(20G,25G)201810-202110

main81185-06F00iASV70..LHD..(25Q,25V)201810-202110

main81185-06F10iAXVH71..IDN201810-202110

main81185-06F50iASV70..MA201810-202110

main81185-06G60iAXVA70,AXVH71..RHD..(25E,25G,25V,HBD,HBDG,HBDV)202111

main81185-06G70iAXVA70,AXVH71,MXVA71..LHD..(20Q,25Q,HBDV)202111

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iASV70..IDN;ASV7#,AXVA70..(20,20G,25,25G)..(MA,PH,TH,VN)201810-202110

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iASV70..IDN;ASV7#,AXVA70..(20,20G,25,25G)..(MA,PH,TH,VN)201810-202110

9007502056

main90075-02056

9010906388

main90109-06388

9015960621

main90159-60621

9018906238

main90189-06238

17 parts on this diagram · 2 diagrams in section
