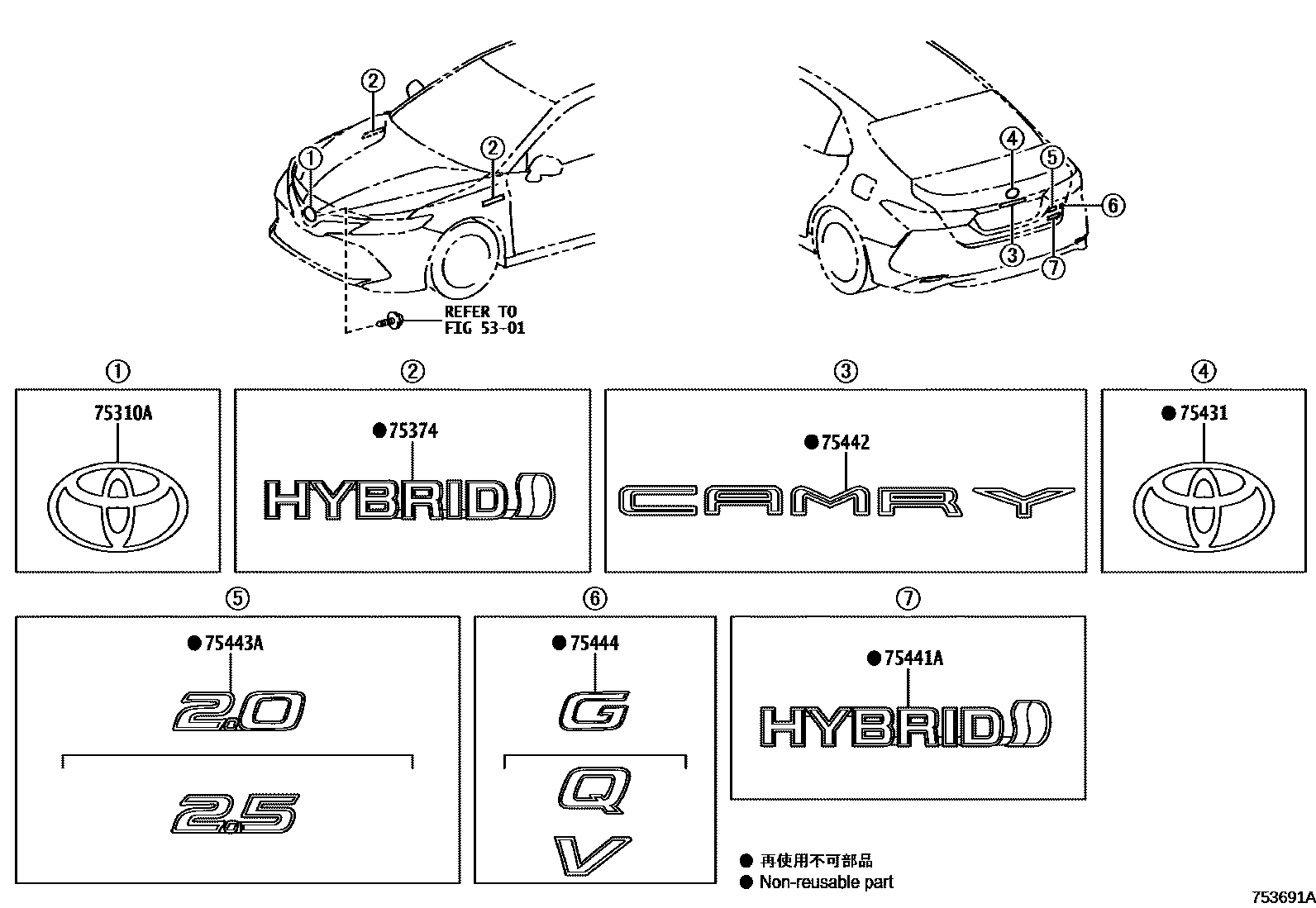

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

5301RADIATOR GRILLE

→ Go to FIG 53-01

75310AEMBLEM ASSY, RADIATOR GRILLE

main53141-33130iASV70,AXVA70..(25,25V)..(MA,TH); ASV70..25V..IDN201810-202012

BRUNEI SPEC

main53141-33140iAXVH71..HBDV201810-202012

main75310-06190iASV71;ASV70,AXVA70..(25G,25Q,25V)..(IDN,PH,TH,VN)201810-202110

main75310-06220iAXVH71..IDN201810-202110

main75310-33080iAXVA70,MXVA71..20G,25,25E202111

main75310-33090iAXVH71..IND202112

main90975-T2026iAXVH71..HBDV202012-202110

main90975-T2027iASV70,AXVA70..(25,25V)..(MA,TH); ASV70..25V..IDN202012-202110

BRUNEI SPEC

main90975-T2031iAXVA70,MXVA71..20Q,25G,25Q,25V202111

main90975-T2039iAXVH71..TH202111

75374EMBLEM, SIDE PANEL

main75374-06210iAXVH71..RHD..(IND,TH)201810-202112

RH

main75374-06220iAXVH71..RHD..(IND,TH)201810-202112

LH

75431EMBLEM, LUGGAGE COMPARTMENT DOOR

main75403-06080iAXVH71..IDN201810-202110

main75431-02090iASV7#,AXVA70201810-202110

75441APLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-06090iAXVH71202111

HYBRID

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-06330iAXVA70,MXVA71202111

CAMRY

main75442-06360iAXVH71202111

CAMRY

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-06E80iASV71201810-202110

2.0

main75443-06E90iASV70,AXVA70201810-202110

2.5

75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4

main75444-06400iASV7#,AXVA70..20G,25G201810-202110

G

main75444-06410iAXVA70,MXVA71..20Q,25Q202111

Q

main75444-06420iASV70..25V201810-202110

V

8 parts on this diagram · 1 diagram in section
