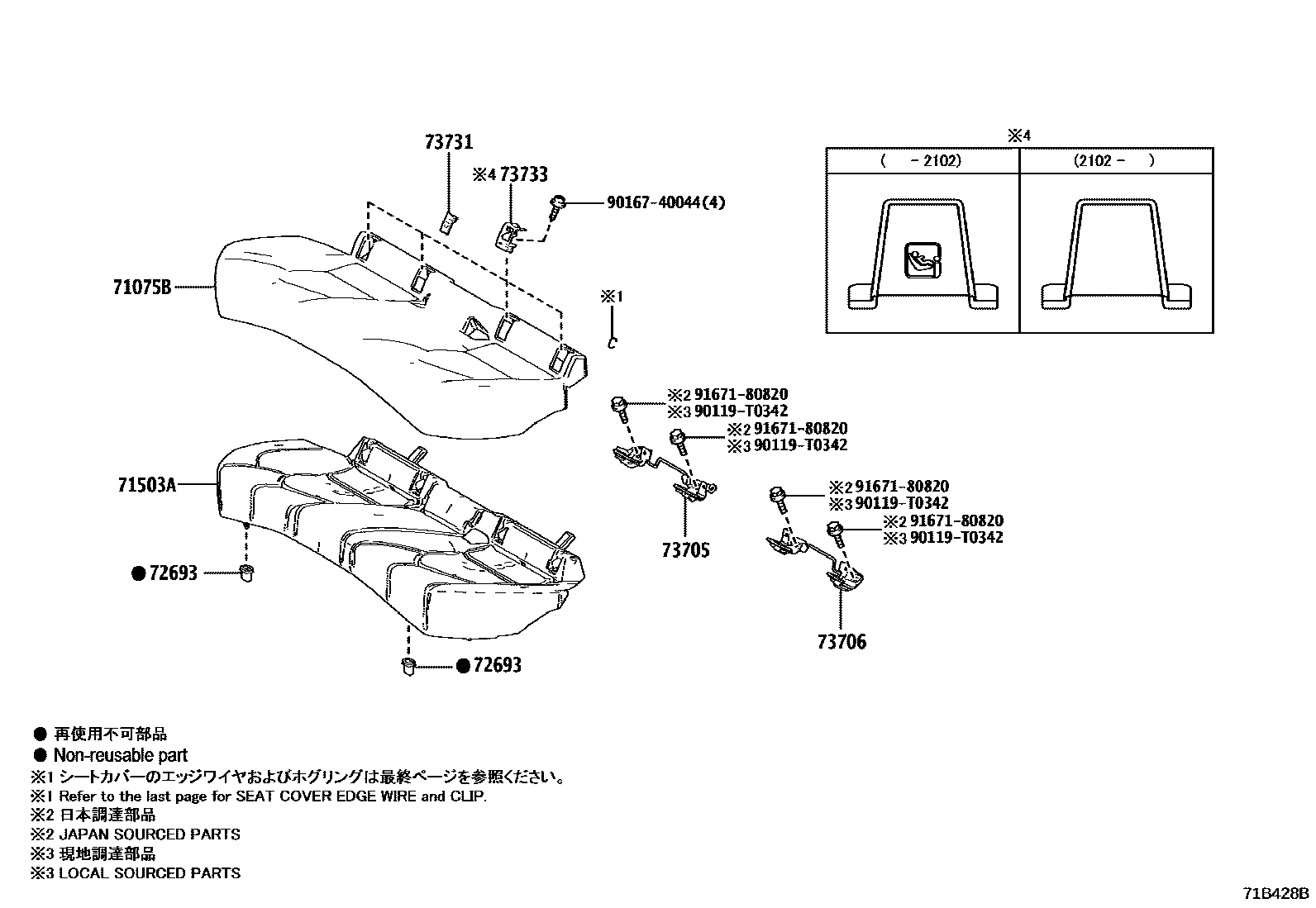

REAR SEAT & SEAT TRACK

0001 1SEAT CUSHION 0003 1SEAT CUSHION 0005 1SEAT BACK 0007 1SEAT BACK 0010 1SEAT CUSHION 0011 1SEAT CUSHION 0013 1SEAT BACK:FIXED TYPE 0015 1SEAT BACK:RECLINING TYPE 0017 1SEAT COVER EDGE WIRE & CLIP

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-06L60-A4iASV70..25G201810-202110

NEUTRAL BEIGE,TRIM4#

main71075-06L60-C4iASV70..25G201810-202110

BLACK,TRIM2#

main71075-06L70-A4iASV71,AXVA70;ASV70..25V..IDN201810-202110

NEUTRAL BEIGE,TRIM4#

main71075-06L70-C4iASV71,AXVA70;ASV70..25V..IDN201810-202110

BLACK,TRIM2#

main71075-06L80-01iASV70..(25Q,25V)..(MA,PH,VN)201810-202110

NEUTRAL BEIGE,TRIM4#

main71075-06L80-20iASV70..(25Q,25V)..(MA,PH,VN)201810-202110

BLACK,TRIM2#

main71075-06L90-01iAXVH71..HBDG201810-202110

NEUTRAL BEIGE,TRIM4#

main71075-06L90-20iAXVH71..HBDG201810-202110

BLACK,TRIM2#

main71075-06N50-A2iAXVH71..RHD..(HBD,HBDV)..(IND,TH)201810-202112

NEUTRAL BEIGE,TRIM4#

main71075-06N50-C2iAXVH71..IDN201810-202110

BLACK,TRIM2#

main71075-06S80-A3iAXVA70,MXVA71..20G,25,25E202111

NEUTRAL BEIGE,TRIM4#

main71075-06S80-C3iAXVA70,MXVA71..20G,25,25E202111

BLACK,TRIM2#

main71075-06S90-A3iAXVA70,MXVA71..20Q,25G,25Q,25V202111

NEUTRAL BEIGE,TRIM4#

main71075-06S90-C3iAXVA70,MXVA71..20Q,25G,25Q,25V202111

BLACK,TRIM2#

main71075-06T00-A3iAXVH71..LHD;AXVH71..HBDG202111

NEUTRAL BEIGE,TRIM4#

main71075-06T00-C3iAXVH71..LHD;AXVH71..HBDG202111

BLACK,TRIM2#

main71075-06T10-A3iAXVH71..RHD..(HBD,HBDV)202111

FROMAGE,TRIM4#

main71075-06T10-C3iAXVH71..RHD..(HBD,HBDV)202111

BLACK,TRIM2#

71503APAD SUB-ASSY, REAR SEAT CUSHION

main71503-06440iAXVA70,MXVA71202111

main71503-06450iAXVH71..RHD..(IND,TH)201810-202112

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080×2iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-06170iAXVA70,MXVA71202111

main73705-06180iAXVH71202111

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-06170iASV7#,AXVA70201810-202110

main73706-06180iAXVH71..RHD..(IND,TH)201810-202112

73731COVER, CHILD RESTRAINT SEAT

main73731-06010-C0×4iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

BLACK,TRIM2#

main73731-06010-E0×4iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

NEUTRAL BEIGE,TRIM4#

73733COVER, CHILD RESTRAINT SEAT BASE

main73733-06010-C0×4iASV7#,AXVA70,AXVH71201810-202102

BLACK,TRIM2#

main73733-06010-E0×4iAXVA70,AXVH71,MXVA71202310

NEUTRAL BEIGE,TRIM4#

main73733-06011-C0×4iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)202102-202112

BLACK,TRIM2#

main73733-06011-E0×4iAXVA70,AXVH71,MXVA71202111-202309

NEUTRAL BEIGE,TRIM4#

90119T0342

main90119-T0342

9016740044

main90167-40044

9167180820

main91671-80820

10 parts on this diagram · 9 diagrams in section
