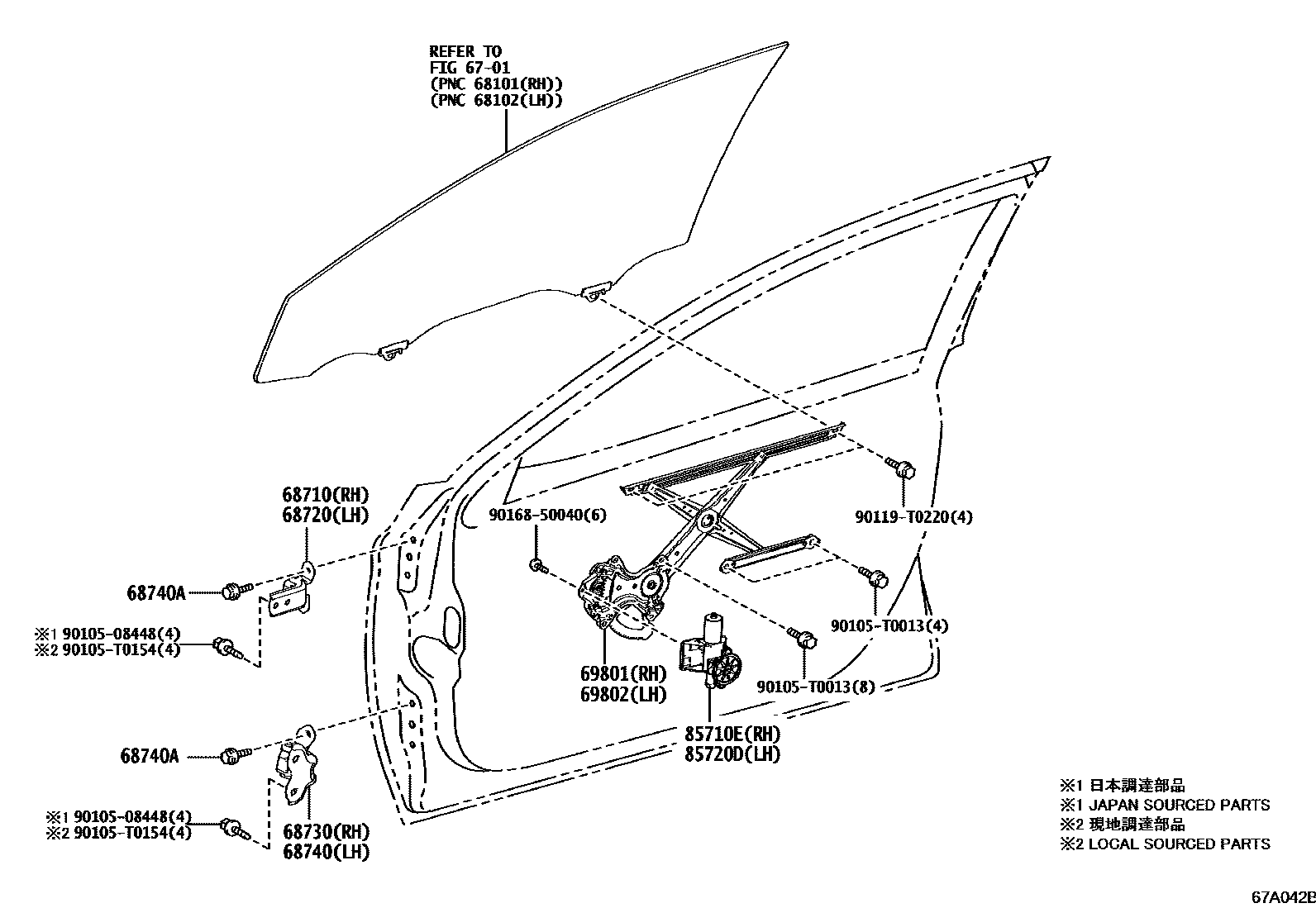

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0D050iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0D050iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02100iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02100iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

68740ABOLT(FOR FRONT DOOR HINGE)

main90105-08485iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

JAPAN SOURCED PARTS

main90105-T0153iASV7#,AXVA70,AXVH71201810-202005

LOCAL SOURCED PARTS

main90105-T0343iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)202006-202112

LOCAL SOURCED PARTS

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0K140iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0K140iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-06340iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-06360iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

9010508448

main90105-08448

90105T0013

main90105-T0013

90105T0154

main90105-T0154

90119T0220

main90119-T0220

9016850040

main90168-50040

15 parts on this diagram · 1 diagram in section
