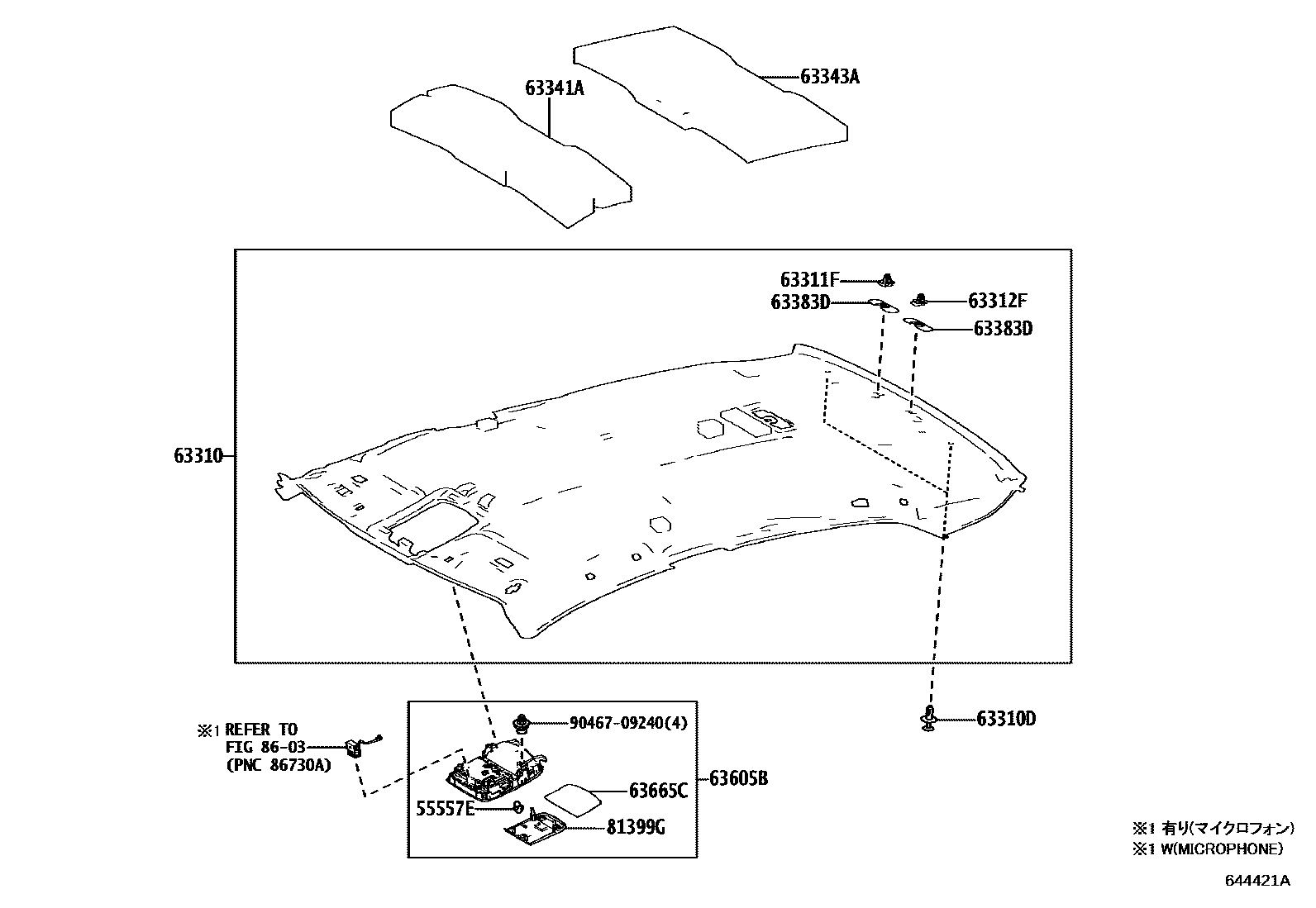

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0004 1MOON ROOF

55557ECUSHION, ROOF CONSOLE BOX

main55557-47050iASV70..25G;ASV7#,AXVA70..(20,20G,25,25V)..(PH,TH,VN); ASV70..25V..IDN201810-202110

BRUNEI SPEC

63310HEADLINING ASSY, ROOF

main63310-06D30-B0iASV7#..MA; ASV70..25G;ASV7#,AXVA70..(20,20G,25,25V)..(PH,TH,VN); ASV70..25V..IDN201810-202110

BRUNEI SPEC,GRAY,TRIM2#; GRAY,TRIM1#,2#; GRAY,TRIM2#

main63310-06D30-E0iASV70..25G;ASV7#,AXVA70..(20,20G,25,25V)..(MA,PH,TH,VN); ASV70..25V..IDN201810-202110

BRUNEI SPEC,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#

main63310-06D40-B0iAXVA70,AXVH71,MXVA71..20Q,25,25G,25Q,HBD,HBDG,HBDV202111

GRAY,TRIM2#

main63310-06D40-E0iASV70,AXVH71..(25Q,25V,HBD)..(IDN,VN)201810-202110

NEUTRAL BEIGE,TRIM4#

63310DCLIP, ROOF HEADLINING

main90467-05168-B0×2iAXVA70,AXVH71,MXVA71202111

GRAY,TRIM2#

main90467-05168-E0×2iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

NEUTRAL BEIGE,TRIM4#

63311FCLIP, ROOF HEADLINING, NO.1

main90467-10181iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

63312FCLIP, ROOF HEADLINING, NO.2

main90467-09126iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

63341ASILENCER, ROOF, NO.1

main63341-06240iASV70..25G;ASV7#,AXVA70..(20,20G,25,25V)..(MA,PH,TH,VN); ASV70..25V..IDN201810-202110

BRUNEI SPEC

63343ASILENCER, ROOF, NO.3

main63343-06240iAXVA70,MXVA71..20G,25E,25V202111

63383DRETAINER, ROOF HEADLINING, REAR

main63383-24030×2iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

63605BBOX SUB-ASSY, ROOF CONSOLE

main63605-33120-B0iASV70..25G;ASV70,AXVA70..(25,25V)..(PH,TH); ASV71..20201810-202110

GRAY,TRIM2#; SINGAPORE SPEC,GRAY,TRIM2#

main63605-33120-E0iASV70..25G;ASV70,AXVA70..(25,25V)..(PH,TH); ASV71..20201810-202110

NEUTRAL BEIGE,TRIM4#; SINGAPORE SPEC,NEUTRAL BEIGE,TRIM4#

main63605-33121-B0iMXVA71..20G202111

GRAY,TRIM2#

main63605-33121-E0iMXVA71..20G202111

NEUTRAL BEIGE,TRIM4#

main63605-33140-B0supersedes 63650-33A80-B0iASV70..25V..IDN; ASV71..TH,VN201810-202110

BRUNEI SPEC,GRAY,TRIM2#; GRAY,TRIM2#

main63605-33140-E0supersedes 63650-33A80-E0iASV70..25V..IDN; ASV71..TH,VN201810-202110

BRUNEI SPEC,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#

main63605-33141-B0iAXVA70..25E202111

GRAY,TRIM2#

main63605-33141-E0iAXVA70..25E202111

NEUTRAL BEIGE,TRIM4#

main63605-33180-B0iAXVA70,AXVH71..RHD..(25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

GRAY,TRIM2#

main63605-33180-E0iAXVA70,AXVH71..RHD..(25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

NEUTRAL BEIGE,TRIM4#

main63605-33181-B0iAXVA70,AXVH71,MXVA71..(20Q,25G,25Q,HBD,HBDG,HBDV)..(IND,TH)202111

GRAY,TRIM2#

main63605-33181-E0iAXVA70,AXVH71,MXVA71..(20Q,25G,25Q,HBD,HBDG,HBDV)..(IND,TH)202111

NEUTRAL BEIGE,TRIM4#

main63605-33290-B0iASV7#..MA201810-202110

GRAY,TRIM2#

main63605-33290-E0iASV7#..MA201810-202110

NEUTRAL BEIGE,TRIM4#

main63605-33291-B0iAXVA70..25V202111

GRAY,TRIM2#

main63605-33291-E0iAXVA70..25V202111

NEUTRAL BEIGE,TRIM4#

main63650-33A81-B0iAXVA70..25202111

GRAY,TRIM2#

main63650-33A81-E0iAXVA70..25202111

NEUTRAL BEIGE,TRIM4#

63665CMAT, ROOF CONSOLE BOX

main63665-33020iASV70..25G;ASV7#,AXVA70..(20,20G,25,25V)..(PH,TH,VN); ASV70..25V..IDN201810-202110

BRUNEI SPEC

81399GCOVER, LENS

main81399-33010iASV70..25G;ASV7#,AXVA70..(20,20G,25,25V)..(PH,TH,VN); ASV70..25V..IDN201810-202110

BRUNEI SPEC

main81399-33060iASV70,AXVH71..(25Q,25V,HBD)..(IDN,VN)201810-202110

main81399-33080iAXVA70..25V202111

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

9046709240

main90467-09240

13 parts on this diagram · 3 diagrams in section
