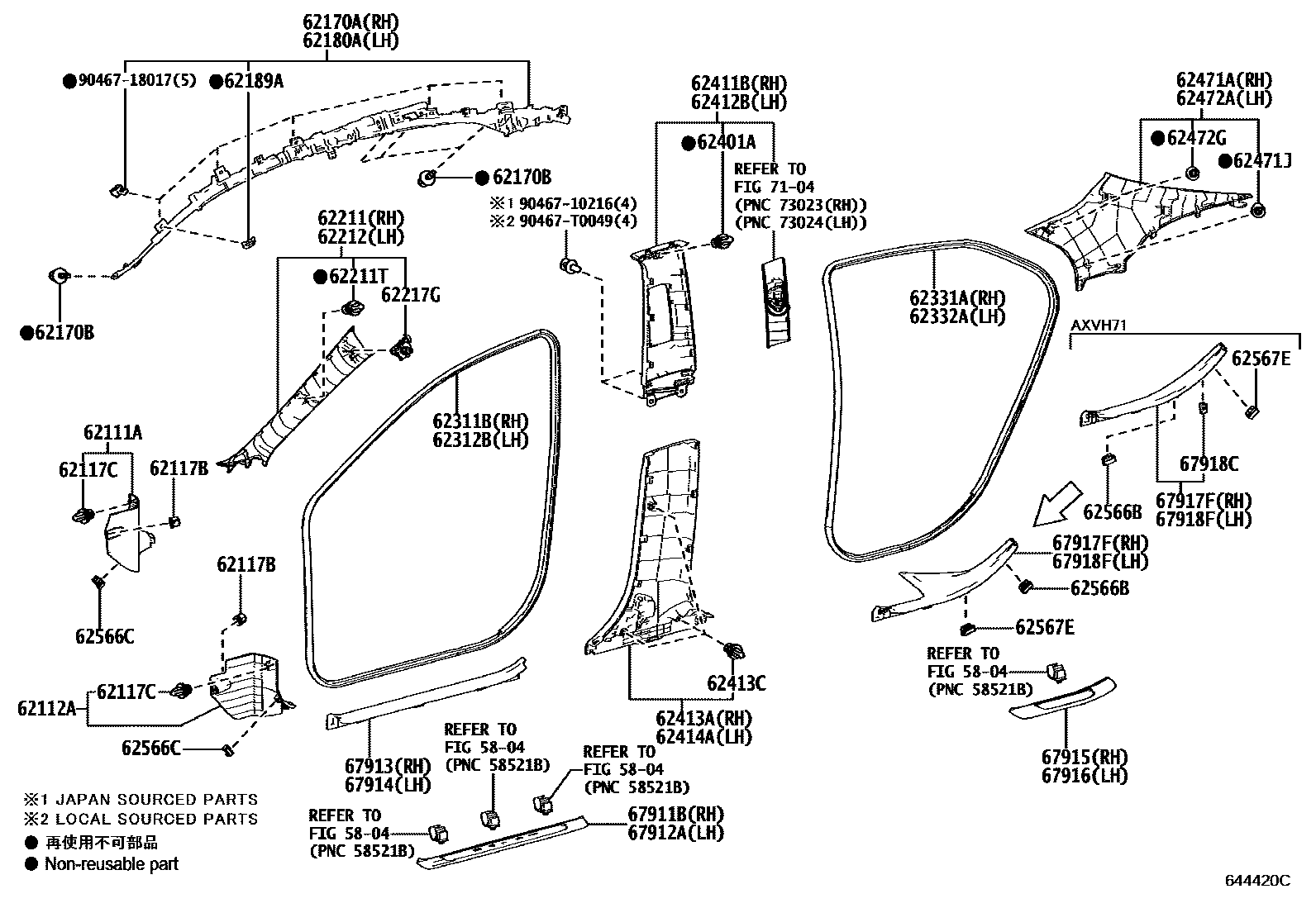

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

5804

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-06230-B0iAXVA70,AXVH71,MXVA71..LHD201810-202110

NEUTRAL WARM GRAY,TRIM4#

main62101-06230-C0iASV7#..LHD201810-202110

BLACK,TRIM1#,2#

main62101-06230-C0iAXVA70,AXVH71,MXVA71..LHD202111

BLACK,TRIM2#

main62101-06240-B0iAXVA70,AXVH71..RHD201810-202112

NEUTRAL WARM GRAY,TRIM4#

main62101-06240-C0iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

BLACK,TRIM2#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-06230-B0iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

NEUTRAL WARM GRAY,TRIM4#

main62102-06230-C0iAXVA70,AXVH71,MXVA71201810-202112

BLACK,TRIM2#

main62102-06230-C0iASV7#..LHD201810-202110

BLACK,TRIM1#,2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147iAXVA70,AXVH71,MXVA71201810-202112

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-T0021iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-06140iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

62170BBOLT, W/WASHER

main91673-80616iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-06140iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

62211GARNISH, FRONT PILLAR, RH

main62210-06320-B1iASV71..20201810-202110

GRAY, LT.GRAY,TRIM2#

main62210-06320-B1iASV71..20201810-202110

SINGAPORE SPEC,GRAY, LT.GRAY,TRIM2#

main62210-06320-E1iAXVA70,AXVH71,MXVA71..20G,25,25E,25G,HBDG201810-202110

NEUTRAL BEIGE, ECRU,TRIM4#

main62210-06320-E1iASV7#,AXVA70,AXVH71..(20G,25,25G,25V,HBDG)..(IDN,PH,TH,VN)201810-202110

SINGAPORE SPEC,NEUTRAL BEIGE, ECRU,TRIM4#

main62210-06370-B2iASV70..25V..IDN201810-202112

GRAY,TRIM2#

main62210-06370-B2iASV71,AXVH71..IDN,MA;ASV7#..(20,25Q,25V)..(MA,TH,VN)201810-202110

BRUNEI SPEC,GRAY,TRIM2#

main62210-06370-E2iASV71,AXVH71..IDN,MA;ASV7#..(20,25Q,25V)..(MA,TH,VN)201810-202110

BRUNEI SPEC,NEUTRAL BEIGE,TRIM4#

main62210-06370-E2iASV71,AXVH71..IDN,MA;ASV7#..(20,25Q,25V)..(MA,TH,VN)201810-202112

NEUTRAL BEIGE,TRIM4#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-T0021iAXVA70,AXVH71,MXVA71201810-202112

62212GARNISH, FRONT PILLAR, LH

main62220-06320-B1iASV71..20201810-202110

GRAY, LT.GRAY,TRIM2#

main62220-06320-B1iASV71..20201810-202110

SINGAPORE SPEC,GRAY, LT.GRAY,TRIM2#

main62220-06320-E1iASV7#,AXVA70,AXVH71..(20G,25,25G,25V,HBDG)..(IDN,PH,TH,VN)201810-202110

SINGAPORE SPEC,NEUTRAL BEIGE, ECRU,TRIM4#

main62220-06320-E1iAXVA70,AXVH71,MXVA71..20G,25,25E,25G,HBDG201810-202110

NEUTRAL BEIGE, ECRU,TRIM4#

main62220-06370-B2iASV71,AXVH71..IDN,MA;ASV7#..(20,25Q,25V)..(MA,TH,VN)201810-202110

BRUNEI SPEC,GRAY,TRIM2#

main62220-06370-B2iASV71,AXVH71..IDN,MA;ASV7#..(20,25Q,25V)..(MA,TH,VN)201810-202112

GRAY,TRIM2#

main62220-06370-E2iAXVH71..RHD..(HBD,HBDV)..(IND,TH)201810-202112

NEUTRAL BEIGE,TRIM4#

main62220-06370-E2iASV71,AXVH71..IDN,MA;ASV7#..(20,25Q,25V)..(MA,TH,VN)201810-202110

BRUNEI SPEC,NEUTRAL BEIGE,TRIM4#

62217GCLIP, FRONT PILLAR GARNISH

main62217-24020iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-06240iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-06240iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-06220iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-06220iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10167iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-06260-B1iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

GRAY,TRIM2#

main62410-06260-E1iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

NEUTRAL BEIGE,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-06260-B1iAXVA70,AXVH71,MXVA71201810-202112

GRAY,TRIM2#

main62420-06260-E1iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

NEUTRAL BEIGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-06220-B0iAXVA70,AXVH71,MXVA71201810-202112

NEUTRAL WARM GRAY,TRIM4#

main62413-06220-C0iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

BLACK,TRIM2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-T0021iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-06220-B0iAXVA70,AXVH71,MXVA71201810-202112

NEUTRAL WARM GRAY,TRIM4#

main62414-06220-C0iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

BLACK,TRIM2#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-06370-B1iAXVA70,AXVH71,MXVA71201810-202112

GRAY,TRIM2#

main62470-06370-E1iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

NEUTRAL BEIGE,TRIM4#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-09240iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

62472AGARNISH, ROOF SIDE, INNER LH

main62480-06370-B1iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

GRAY,TRIM2#

main62480-06370-E1iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

NEUTRAL BEIGE,TRIM4#

62472GCLIP (FOR ROOF SIDE GARNISH)

main90467-10188iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-32010iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

62566CCLAMP, COWL SIDE TRIM

main62567-33040iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62567-33040iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-06210iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-06210iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

67913PLATE, FRONT DOOR SCUFF, RH

main67913-06310-B0iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

NEUTRAL WARM GRAY,TRIM4#

main67913-06310-C0iAXVA70,AXVH71,MXVA71201810-202112

BLACK,TRIM2#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-06300-B0iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

NEUTRAL WARM GRAY,TRIM4#

main67914-06300-C0iAXVA70,AXVH71,MXVA71201810-202112

BLACK,TRIM2#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-06180iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

main67915-06220iAXVA70,MXVA71..20G,25,25E202111

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-06110iAXVA70,MXVA71..20G,25,25E202111

main67916-06200iAXVA70,AXVH71,MXVA71..20Q,25G,25Q,25V,HBD,HBDG,HBDV201810-202112

67917FPLATE, REAR DOOR SCUFF, INSIDE RH

main67917-06320-B0iASV7#,AXVA70201810-202110

NEUTRAL WARM GRAY,TRIM4#

main67917-06320-C0iAXVA70,MXVA71201810-202110

BLACK,TRIM2#

main67917-06330-B0iAXVH71..RHD..(IND,TH)201810-202112

NEUTRAL WARM GRAY,TRIM4#

main67917-06330-C0iAXVH71201810-202112

BLACK,TRIM2#

67918CCLIP(FOR REAR SCUFF PLATE)

main90467-05171iAXVH71..IDN201810-202112

67918FPLATE, REAR DOOR SCUFF, INSIDE LH

main67918-06320-B0iASV7#,AXVA70201810-202110

NEUTRAL WARM GRAY,TRIM4#

main67918-06320-C0iASV7#,AXVA70201810-202110

BLACK,TRIM2#

main67918-06330-B0iAXVH71..RHD..(IND,TH)201810-202112

NEUTRAL WARM GRAY,TRIM4#

main67918-06330-C0iAXVH71201810-202112

BLACK,TRIM2#

7104

9046710216

main90467-10216

9046718017

main90467-18017

90467T0049

main90467-T0049

43 parts on this diagram · 1 diagram in section
