MAT & CARPET

0001 1 0002 1 0003 1 0004 1

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-06210iASV7#,AXVA70,AXVH71..RHD201810-202001

W/O PART NO. MARK

main55213-06211iAXVA70,AXVH71..RHD202001-202112

W/ PART NUMBER

main55213-06221iAXVA70,AXVH71,MXVA71..LHD201810-202110

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-06180iASV7#,AXVH71..(20,20G,25G,25V,HBD)..(IDN,MA,TH)201810-202112

main55214-06190iASV7#..LHD201810-202110

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-06070iASV7#,AXVH71..(20,20G,25G,25V,HBD)..(IDN,MA,TH)201810-202112

main55215-06080iASV7#..LHD201810-202110

58510DCARPET ASSY, FLOOR, FRONT

main58510-06810-B2iAXVA70,MXVA71..LHD201810-202110

NEUTRAL WARM GRAY,TRIM4#

sub58510-06810

main58510-06810-C1iASV7#..LHD201810-202110

BLACK,TRIM2#

sub58510-06810

main58510-06820-B2iAXVA70..25E,25G,25V201810-202110

NEUTRAL WARM GRAY,TRIM4#

sub58510-06820

main58510-06820-C1iAXVA70..25E,25G,25V201810-202110

BLACK,TRIM2#

sub58510-06820

main58510-06830-B2iAXVH71..RHD201810-202112

NEUTRAL WARM GRAY,TRIM4#

sub58510-06830

main58510-06830-C1iAXVH71..RHD..(IND,TH)201810-202112

BLACK,TRIM2#

sub58510-06830

main58510-06A10-B0iAXVH71..LHD202111

NEUTRAL WARM GRAY,TRIM4#

main58510-06A10-C0iAXVH71..LHD202111

BLACK,TRIM2#

main58510-06A20-B0iAXVA70..25202111

NEUTRAL WARM GRAY,TRIM4#

main58510-06A20-C0iAXVA70..25202111

BLACK,TRIM2#

58511MAT, FLOOR, FRONT

main58511-06180iASV7#,AXVA70201810-202001

sub58511-06181

main58511-06181iASV7#,AXVA70202001-202110

main58511-06190iAXVH71201810-202001

sub58511-06191

main58511-06191iAXVH71..IDN202001-202112

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-07042-C4iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

BLACK

sub90467-07042

sub90467-06175

58521BHOOK, FLOOR CARPET

main58521-06170iAXVA70,AXVH71,MXVA71201810-202112

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07161-C1iAXVA70..RHD201810-202112

BLACK

sub90467-07161

58543BBRACKET, FLOOR CARPET, RH

main58543-06200iAXVA70,AXVH71,MXVA71..LHD201810-202110

main58543-06210iAXVA70,AXVH71..RHD201810-202112

58544BBRACKET, FLOOR CARPET, LH

main58544-06210iASV7#..LHD201810-202110

main58544-06220iASV7#,AXVH71..(20,20G,25G,25V,HBD)..(IDN,MA,TH)201810-202112

58565BCLIP

main90467-07076-C0iAXVA70,AXVH71,MXVA71202311

BLACK,(J)

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-T0027-C0iAXVA70,AXVH71,MXVA71201810-202311

BLACK

main90467-T0027-C0iAXVA70,AXVH71,MXVA71202311

BLACK,(L)

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-06100-B0iASV7#..LHD201810-202110

NEUTRAL WARM GRAY,TRIM1#,40

main58569-06100-B0iASV7#..LHD201810-202112

NEUTRAL WARM GRAY,TRIM40

main58569-06100-B0iAXVA70,AXVH71,MXVA71202111

NEUTRAL WARM GRAY,TRIM4#

main58569-06100-C0iAXVA70,AXVH71,MXVA71202111

BLACK,TRIM2#

main58569-06100-C0iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

BLACK,TRIM2#,40

58694BPLATE, MAT SET, UPPER

main58694-0K010iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

58698CPLATE, MAT SET, LOWER

main58698-0K070iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

9046713079

main90467-13079

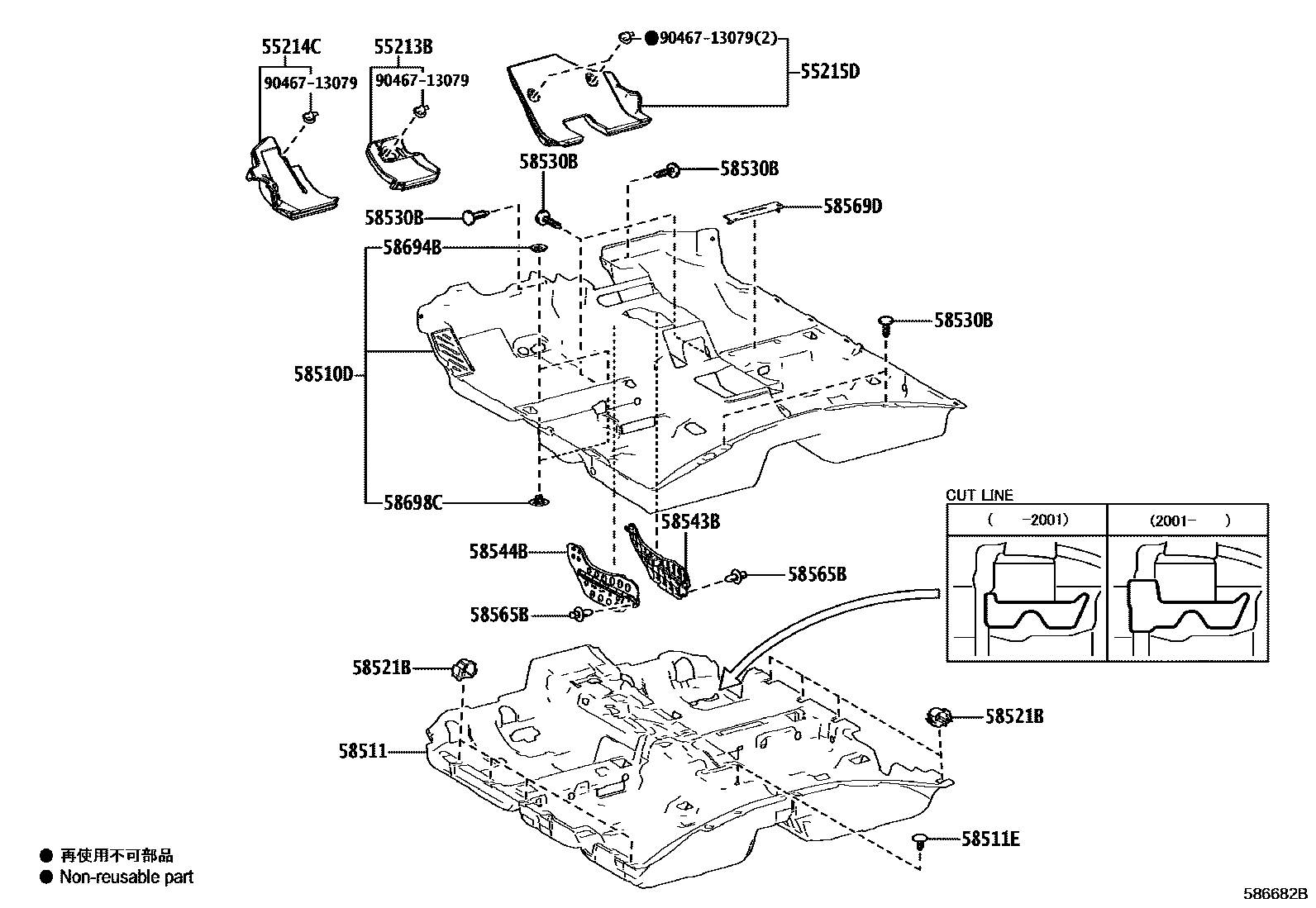

15 parts on this diagram · 4 diagrams in section
