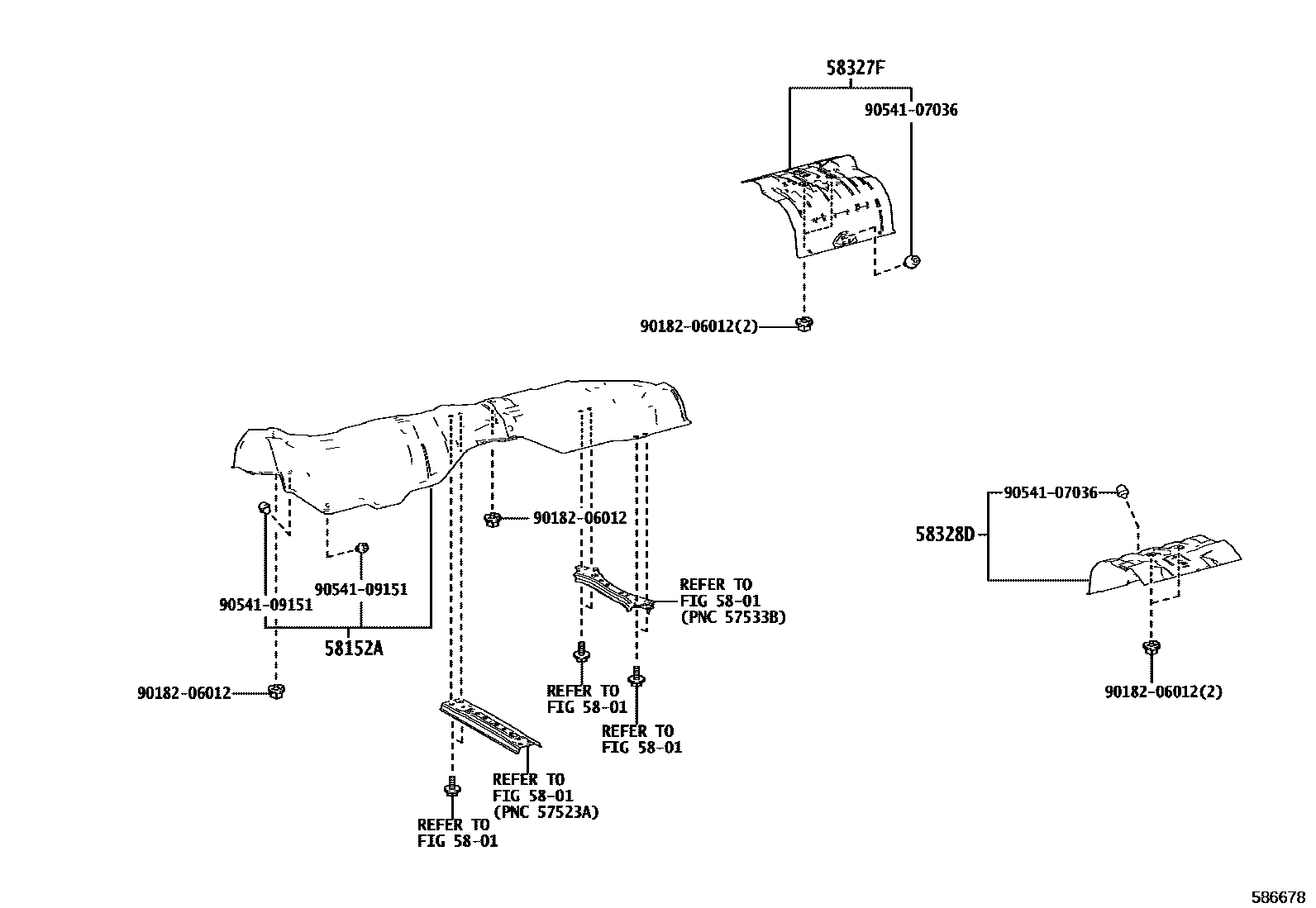

FLOOR INSULATOR

0001 1 0002 1 0003 1 0004 1

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-06190iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58327-06160iASV7#,AXVA70201810-202110

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58327-06160iASV70,AXVH71..IDN,MA,PH,VN201810-202110

9018206012

main90182-06012

9054107036

main90541-07036

9054109151

main90541-09151

7 parts on this diagram · 4 diagrams in section
