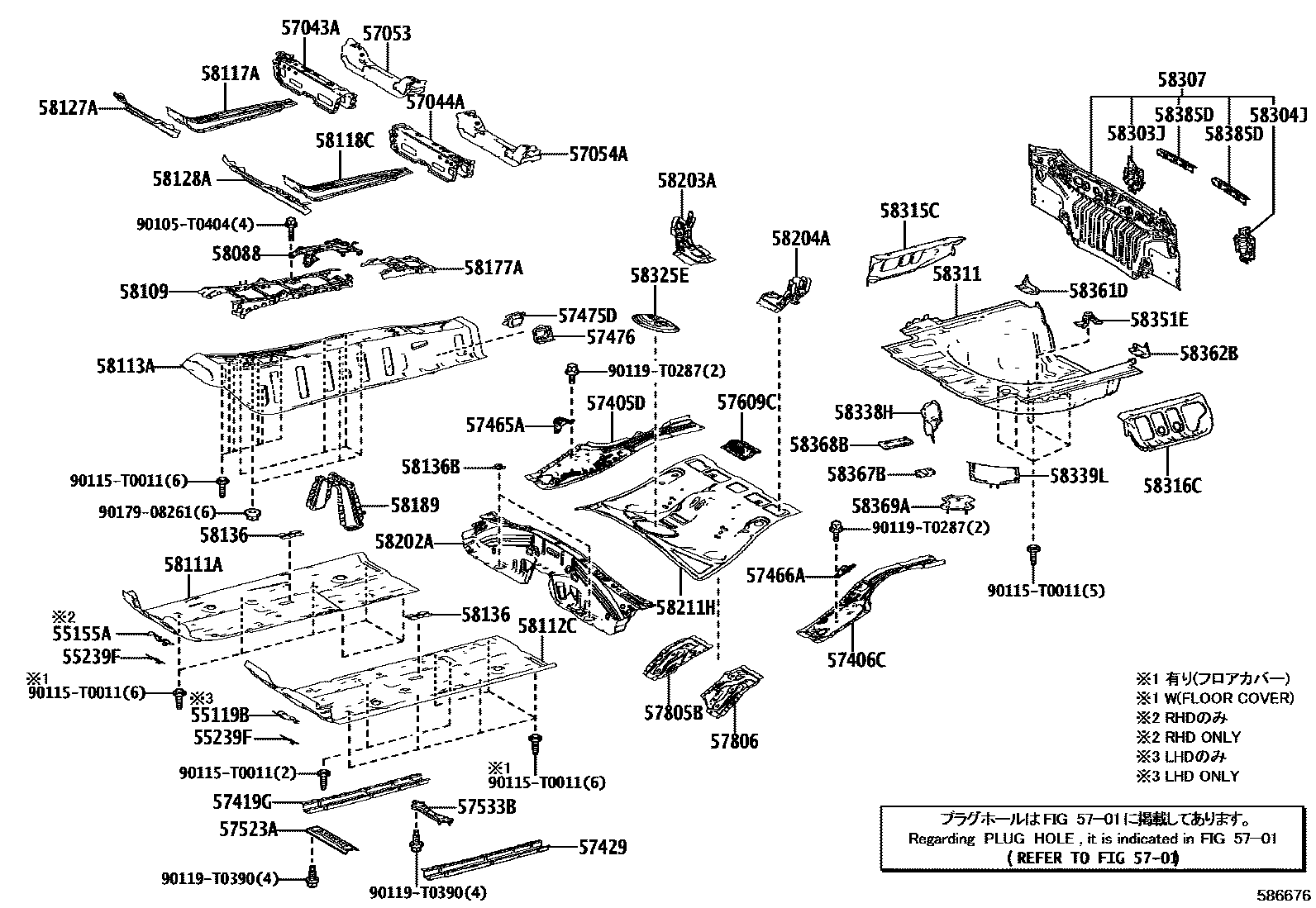

FLOOR PAN & LOWER BACK PANEL
55119BEXTENSION, DASH PANEL, LH
55155ABRACKET, ACCELERATOR PEDAL
55239FPLATE, DASH PANEL INSULATOR, NO.3
5701HOLE PLUG
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
(L)
(J)
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
(L)
(J)
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
(L)
(J)
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
(L)
(J)
57405DRAIL SUB-ASSY, FLOOR SIDE, CENTER RH
57406CRAIL SUB-ASSY, FLOOR SIDE, CENTER LH
57419GREINFORCEMENT, FRONT FLOOR UNDER, REAR RH
(L)
(J)
57429REINFORCEMENT, FRONT FLOOR UNDER, REAR LH
(L)
(J)
57465AGUSSET, CENTER FLOOR CROSSMEMBER, RH
57466AGUSSET, CENTER FLOOR CROSSMEMBER, LH
57475DPLATE, FRONT FLOOR CROSSMEMBER, RH
(L)
(J)
57476PLATE, FRONT FLOOR CROSSMEMBER, LH
(L)
(J)
57523ABRACE, CENTER FLOOR CROSSMEMBER
57533BBRACE, FRONT FLOOR, CENTER
57609CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5
57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH
58088BRACKET SUB-ASSY, FLOOR SHIFT LINK
58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58117AREINFORCEMENT, FRONT FLOOR SIDE, RH
(L)
(J)
58118CREINFORCEMENT, FRONT FLOOR SIDE, LH
(L)
(J)
58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH
(L)
(J)
58128AREINFORCEMENT, FRONT CROSS TO FRONT PANEL MEMBER, LH
(L)
(J)
58136COVER, FRONT FLOOR HOLE
58136BCOVER, CENTER FLOOR HOLE
58177AEXTENSION, FRONT FLOOR PANEL, RH
58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET
(L)
(J)
58202APAN SUB-ASSY, CENTER FLOOR, FRONT
58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58211HPAN, CENTER FLOOR
58303JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH
58304JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58315CEXTENSION, REAR FLOOR SIDE PANEL, RH
58316CEXTENSION, REAR FLOOR SIDE PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58338HREINFORCEMENT, REAR FLOOR PAN, NO.2 RH
58339LREINFORCEMENT, REAR FLOOR PAN, NO.2 LH
58351EBRACKET, SPARE WHEEL CLAMP
58361DREINFORCEMENT, REAR FLOOR PANEL, NO.1 RH
58362BREINFORCEMENT, REAR FLOOR PANEL, NO.1 LH
58367BBRACKET, FUEL TUBE
58368BBRACKET, FUEL TUBE, NO.2
58369ABRACKET, FUEL TUBE, NO.3
58385DBRACKET, REAR BUMPER COVER
90105T0404
main90105-T0404
90115T0011
main90115-T0011
90119T0287
main90119-T0287
90119T0390
main90119-T0390
9017908261
main90179-08261
59 parts on this diagram · 2 diagrams in section
