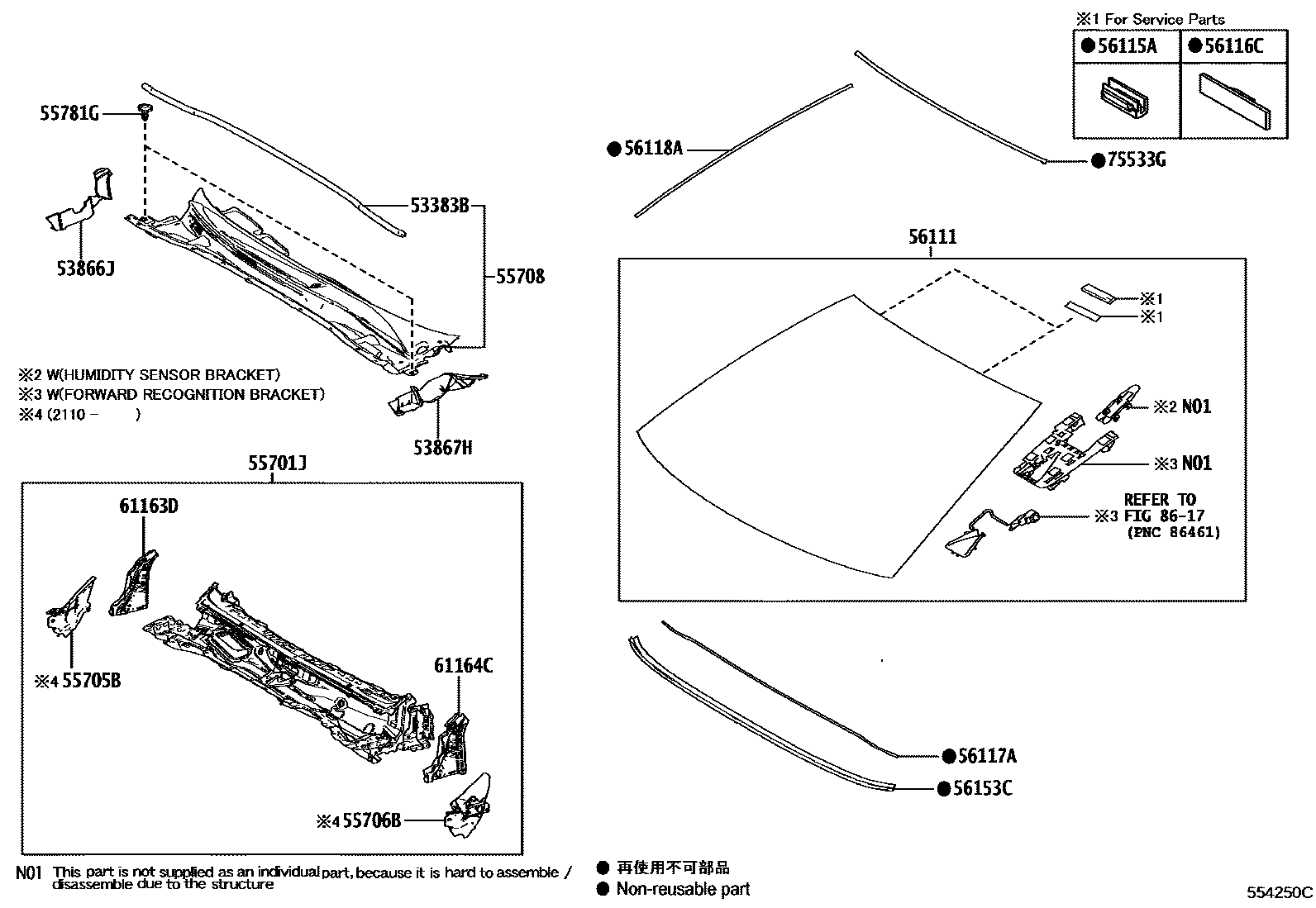

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-33140iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-06170iAXVA70,AXVH71..RHD202111

main53866-33090iAXVA70,AXVH71,MXVA71..LHD202111

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-06170iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main53867-33090iAXVA70,AXVH71,MXVA71..LHD202111

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-06380iAXVA70,AXVH71,MXVA71..LHD202111

main55701-06390iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-06050iAXVA70,AXVH71,MXVA71202111

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-06050iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-06320iAXVA70,AXVH71,MXVA71..LHD202111-202402

main55708-06321iAXVA70,AXVH71,MXVA71..LHD202403

main55708-06330iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main55708-06331iAXVA70,AXVH71..RHD202410

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242×2iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

56111GLASS, WINDSHIELD

main56101-06993iASV70..LHD..(25Q,25V)201810-202110

main56101-06994iASV70..25V..IDN; AXVA70..25201810-202110

BRUNEI SPEC

main56101-06995iASV70..25V..IDN;ASV71,AXVA70,AXVH71..RHD..(20,20G,25G,HBDG)201810-202110

main56101-06996iAXVH71..IDN201810-202110

main56101-06997iASV70,AXVH71..(25V,HBDV)..(MA,TH)201810-202110

main56101-06998iASV7#..LHD..(20G,25G)201810-202110

main56101-06999iASV70..25G..IDN201810-202110

main56101-0X900iAXVH71..IND201812-202101

main56101-0X904iAXVA70,AXVH71..25G,HBDG202111

main56101-0X905iAXVA70..25,25E202111

main56101-0X906iAXVA70,AXVH71..RHD..(25V,HBDV)202111

main56101-0X907iMXVA71..20G202111

main56101-0X909iAXVA70,AXVH71,MXVA71..LHD..(20Q,25Q,HBDV)202111

main56101-0X917iAXVH71..IND202102-202112

main56101-0X918iAXVH71..IND202112

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iAXVA70,AXVH71,MXVA71202111

56117ADAM, WINDOW GLASS ADHESIVE

main56117-06230iASV7#,AXVA70,AXVH71..IDN,MA,PH,TH,VN; ASV70..25V..IDN201810-202110

L=1298; L=1298,BRUNEI SPEC

main56117-06260iAXVH71..IND202112

L=1298

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-06050×2iASV7#,AXVA70,AXVH71..IDN,MA,PH,TH,VN; ASV70..25V..IDN201810-202110

L=725; L=725,BRUNEI SPEC

main56118-06090×2iAXVH71..IND202112

L=725

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-33010iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

61163DPILLAR, FRONT BODY, LOWER INNER RH

main61163-06040iAXVA70,AXVH71,MXVA71202111

61164CPILLAR, FRONT BODY, LOWER INNER LH

main61164-06040iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-06220iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

8617PRE-COLLISION SYSTEM

→ Go to FIG 86-17

18 parts on this diagram · 1 diagram in section
