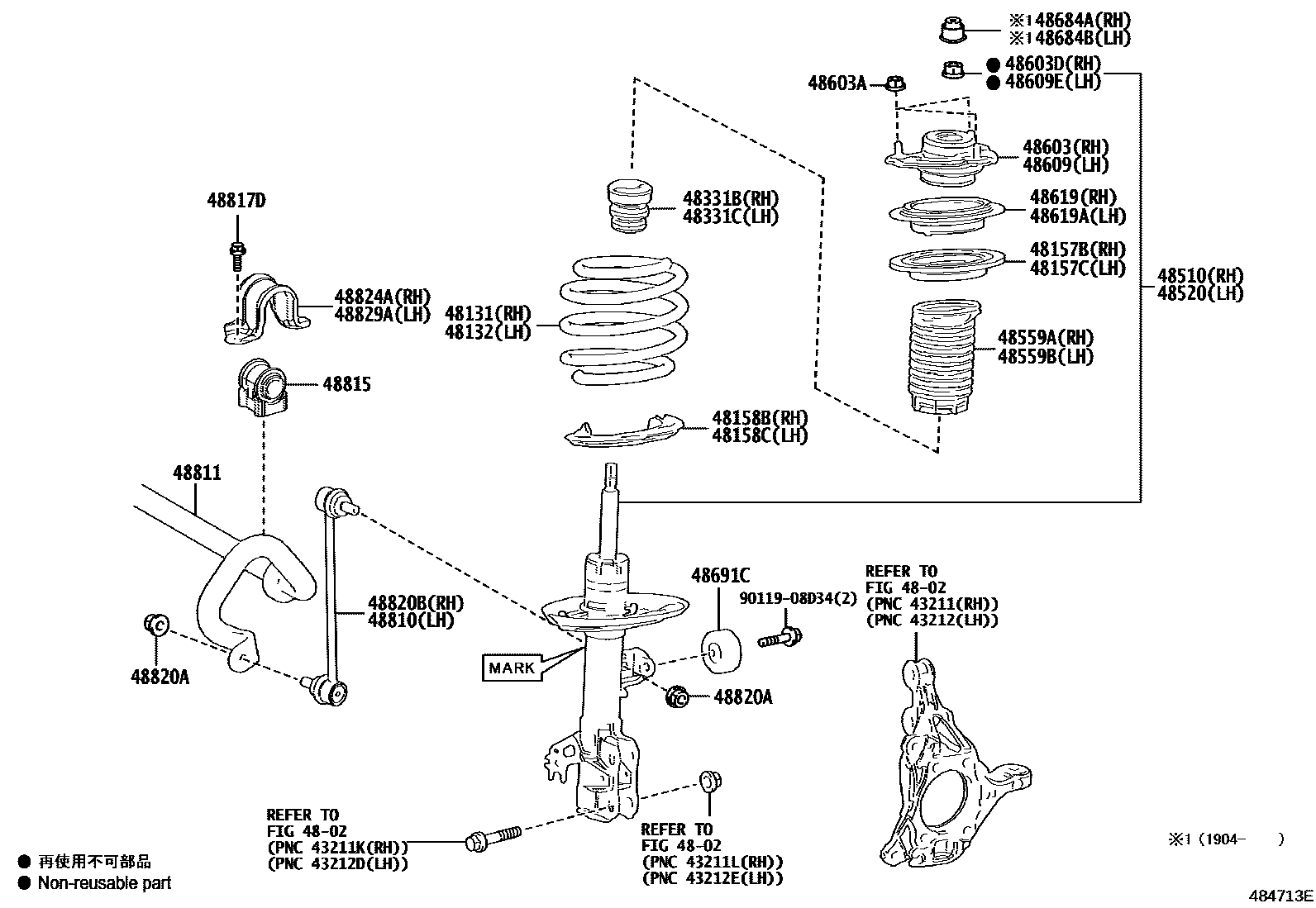

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-06J50iASV7#,AXVA70201810-202110

main48131-06J51iAXVA70,MXVA71202111

main48131-06J80iAXVH71..IDN,TH201810-202110

main48131-06J81iAXVH71..TH202111

main48131-06K00iAXVH71..IND201812-202112

48132SPRING, FRONT COIL, LH

main48131-06J50iASV7#,AXVA70201810-202110

main48131-06J51iAXVA70,MXVA71202111

main48131-06J80iAXVH71..IDN,TH201810-202110

main48131-06J81iAXVH71..TH202111

main48131-06K00iAXVH71..IND201812-202112

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-06240iASV7#,AXVA70,AXVH71..IDN,MA,PH,TH,VN201810-202110

main48157-06270iAXVH71..IND201812-202112

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-06240iASV7#,AXVA70,AXVH71..IDN,MA,PH,TH,VN201810-202110

main48157-06270iAXVH71..IND202112

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-06280iAXVA70,AXVH71,MXVA71..TH202111

main48158-06310iAXVH71..IND202112

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-06280iAXVA70,AXVH71,MXVA71..TH202111

main48158-06310iAXVH71..IND201812-202112

48331BBUMPER, FRONT SPRING, RH

main48331-33090iASV7#,AXVA70,AXVH71201810-201912

main48331-33091iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)202001-202110

main48331-33101iAXVA70,AXVH71,MXVA71202211

48331CBUMPER, FRONT SPRING, LH

main48331-33090iASV7#,AXVA70,AXVH71201810-201912

main48331-33091iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)202001-202110

main48331-33101iAXVA70,AXVH71,MXVA71202211

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80863iAXVH71..IND202112

MARK 48510-33740

main48510-8Z405iASV7#,AXVA70201810-202110

MARK 48510-06B30

main48510-8Z406iAXVH71..IDN,TH201810-202110

MARK 48510-06B50

main48510-8Z526iAXVA70,MXVA71202111

MARK 48510-06E10

main48510-8Z527iAXVH71..TH202111

MARK 48510-06E20

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80536iAXVH71..IND202112

MARK 48520-33740

main48520-8Z259iASV7#,AXVA70201810-202110

MARK 48520-06B30

main48520-8Z260iAXVH71..IDN,TH201810-202110

MARK 48520-06B50

main48520-8Z367iAXVA70,MXVA71202111

MARK 48520-06E10

main48520-8Z368iAXVH71..TH202111

MARK 48520-06E20

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-33020iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-33020iAXVA70,AXVH71,MXVA71202111

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-06410iAXVA70,AXVH71,MXVA71202111

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10029×6iAXVA70,AXVH71,MXVA71202111

(J)

main90178-T0129×6iAXVA70,AXVH71,MXVA71202111

(L)

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-14007iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-06410iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-14007iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

48619BEARING, STRUT MOUNTING, RH

main48619-33010iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

48619ABEARING, STRUT MOUNTING, LH

main48619-33010iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-33030iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201904-202110

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-33030iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201904-202110

48691CDAMPER, SUSPENSION TOWER

main48691-06070iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

48810LINK ASSY, FRONT STABILIZER, LH

main48820-06110iAXVA70,AXVH71,MXVA71..TH202111

main48820-06140iAXVH71..IND202112

48811BAR, STABILIZER, FRONT

main48811-06320iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-06280×2iASV7#,AXVA70,AXVH71..IDN,MA,PH,TH,VN201810-202110

main48815-06310×2iAXVH71..IND202112

48817DBOLT(FOR FRONT STABILIZER)

main90119-10994×4iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

(J)

main90119-T0582×4iAXVA70,AXVH71,MXVA71..TH202111

(L)

48820ANUT(FOR FRONT STABILIZER LINK)

main90178-T0087×4iAXVA70202111

(L)

main94151-21241×4iAXVA70202111

(J)

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-06110iASV7#,AXVA70,AXVH71..IDN,MA,PH,TH,VN201810-202110

main48820-06140iAXVH71..IND201812-202112

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48809-33010iAXVA70201810-202001

main48824-33040iAXVH71..RHD..(IND,TH)201810-202112

main48824-33050iAXVA70202001-202110

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-33040iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

9011908D34

main90119-08D34

32 parts on this diagram · 1 diagram in section
