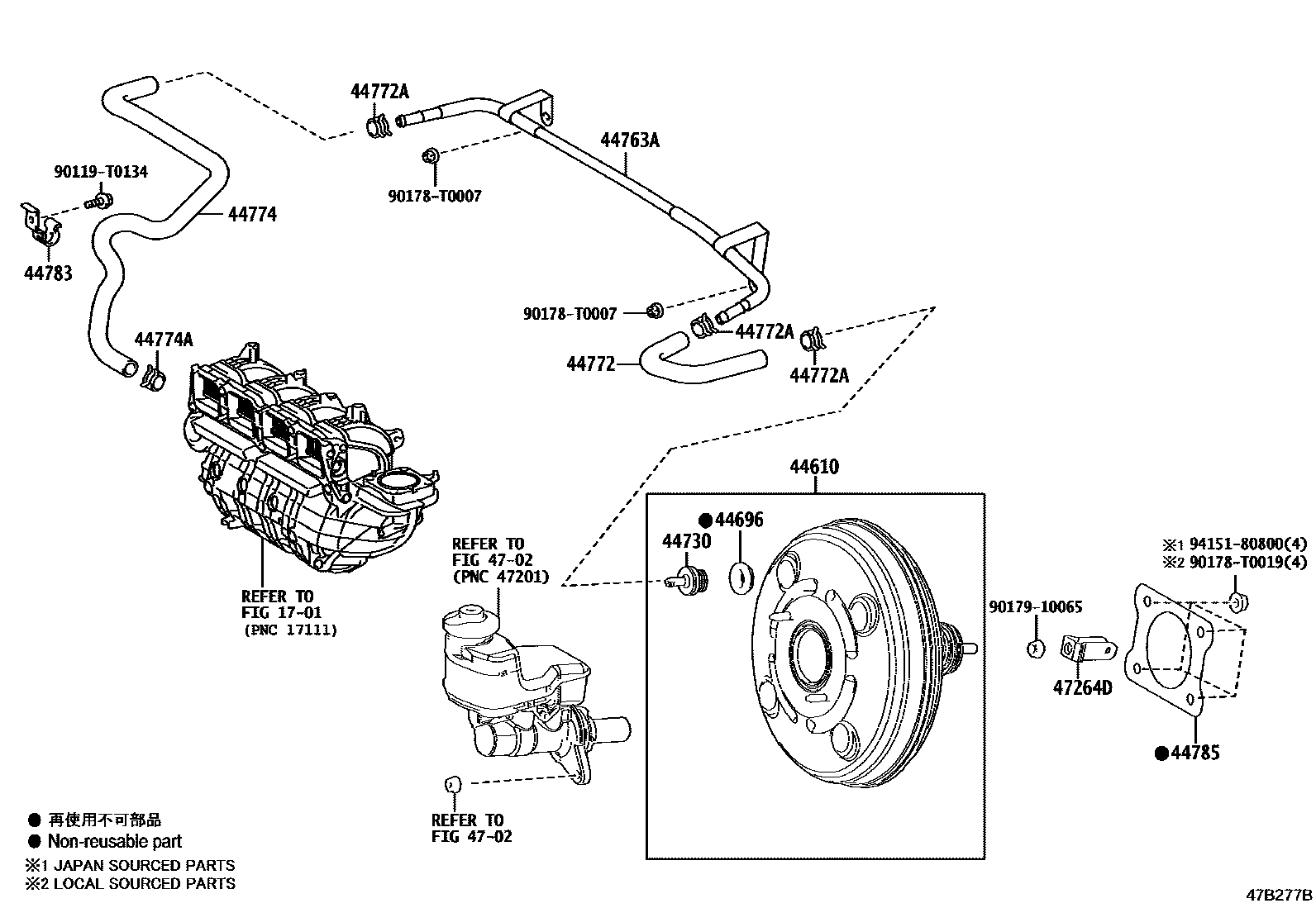

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-06680iASV71..VN201810-202110

main44610-06690iASV70..LHD201810-202110

main44610-06710iAXVA70..RHD201810-202110

main44610-06720iASV70..RHD201810-202110

main44610-06730iASV71..20201810-202110

SINGAPORE SPEC

44696GROMMET, CHECK VALVE

main90480-24015iASV7#,AXVA70201810-202110

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10020iASV7#,AXVA70..RHD201810-202110

main44730-28030iAXVA70,MXVA71..LHD201810-202110

44763ATUBE, HOSE TO HOSE, NO.1

main44763-06110iASV70..LHD201810-202110

main44763-06130iASV71,AXVA70..RHD201810-202110

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-06380iASV70..LHD201810-202110

main44772-06400iASV71,AXVA70..RHD201810-202110

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90466-T0054iAXVA70..RHD202403

(L)

main90467-16014iASV70,AXVA70..PH,TH,VN201810-202403

main90467-16014iAXVA70..RHD202403

(J)

44774HOSE, UNION TO CONNECTOR TUBE

main44774-06150iASV70..LHD201810-202110

main44774-06180iAXVA70201810-202110

main44774-06190iASV71..RHD201810-202110

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90466-T0054iAXVA70..RHD202403

(L)

main90467-16014iASV70,AXVA70..PH,TH,VN201810-202403

main90467-16014iAXVA70..RHD202403

(J)

44783CLAMP, VACUUM HOSE

main44783-42030iASV70201810-202110

44785GASKET, BRAKE BOOSTER

main44785-0D040iAXVA70,MXVA71201810-202110

(L)

main44785-12040iAXVA70,MXVA71201810-202110

(J)

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-33030iASV7#,AXVA70201810-202110

90119T0134

main90119-T0134

90178T0007

main90178-T0007

90178T0019

main90178-T0019

9017910065

main90179-10065

9415180800

main94151-80800

18 parts on this diagram · 6 diagrams in section
