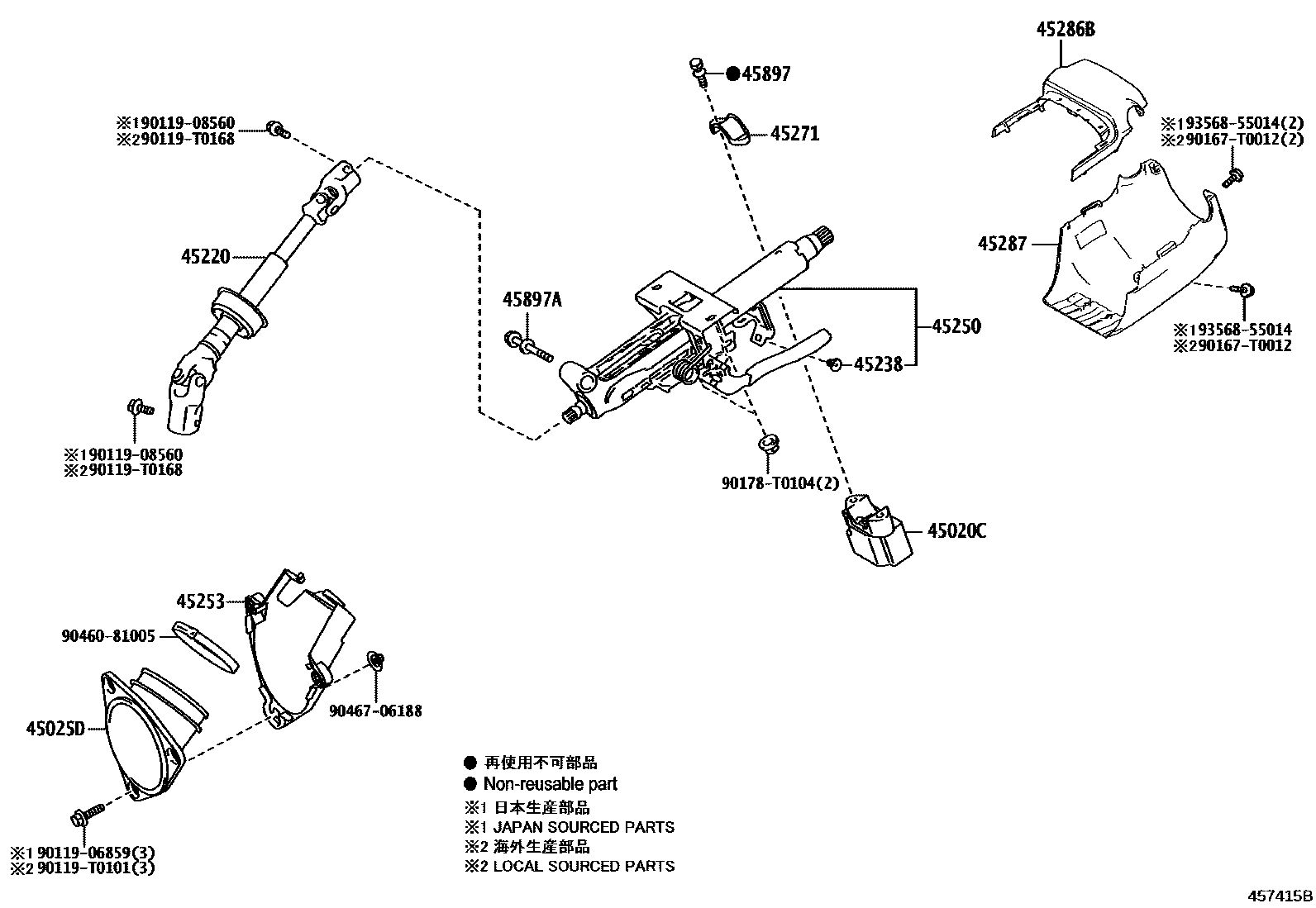

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-06260iASV70..IDN;ASV7#,AXVA70..(20,20G,25G)..(MA,PH,TH,VN)201810-202110

main45020-06270iASV70..25V..IDN201810-202110

BRUNEI SPEC

main45020-06270iAXVA70,AXVH71..RHD..(25,HBD,HBDG,HBDV)..(IND,TH)201810-202112

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-06220iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-06260iASV7#..LHD201810-202110

main45220-06270iASV7#,AXVH71..(20,20G,25G,25V,HBD)..(IDN,MA,TH)201810-202112

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-11010iAXVA70,AXVH71..RHD..(25,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main45238-11010iAXVH71..IDN;ASV70..(25Q,25V)..(MA,PH,VN)201810-202110

BRUNEI SPEC

main45238-52010iASV70..IDN;ASV7#,AXVA70..(20,20G,25G)..(MA,PH,TH,VN)201810-202110

45250COLUMN ASSY, STEERING

main45250-06B60iASV70..IDN;ASV7#,AXVA70..(20,20G,25G)..(MA,PH,TH,VN)201810-202110

main45250-33D60iASV70..(25Q,25V)..(MA,PH,VN);AXVA70,AXVH71..25,HBD,HBDG,HBDV201810-202005

BRUNEI SPEC

main45250-48430iASV70..25V..IDN202006-202110

BRUNEI SPEC

main45250-48430iAXVA70,AXVH71..RHD..(25,HBD,HBDG,HBDV)..(IND,TH)202006-202112

45253COVER, STEERING COLUMN HOLE

main45253-06200iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iASV70..IDN;ASV7#,AXVA70..(20,20G,25G)..(MA,PH,TH,VN)201810-202110

45286BCOVER, STEERING COLUMN, UPR

main45286-06350-C0iASV70..IDN,VN;ASV70..25G..PH;ASV71,AXVH71..(20,20G,HBD)..(IDN,MA,TH,VN)201810-202110

BLACK,TRIM2#,4#

main45286-06350-C0iASV70,AXVA70..(25,25V)..(MA,PH,TH)201810-202112

BLACK,TRIM1#,2#,4#

45287COVER, STEERING COLUMN, LWR

main45287-06470-C0iAXVA70,MXVA71..20G,25,25E,25G202111

BLACK,TRIM2#,4#

main45287-06470-C0iASV70..IDN;ASV7#,AXVA70..(20,20G,25G)..(MA,PH,TH,VN)201810-202110

BLACK,TRIM1#,2#,4#

main45287-06480-C0iASV70,AXVA70..(25,25V)..(MA,PH,TH)201810-202112

BLACK,TRIM1#,2#,4#

main45287-06480-C0iASV70,AXVA70..(25,25V)..(MA,PH,TH)201810-202110

BRUNEI SPEC,BLACK,TRIM2#,4#

main45287-06480-C0iASV70,AXVH71..(25Q,HBD)..(IDN,VN)201810-202110

BLACK,TRIM2#,4#

45897BOLT, STEERING LOCK SET

main45897-12020iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

45897ABOLT, TILT STEERING PAWL SET

main90119-T0441iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

9011906859

main90119-06859

9011908560

main90119-08560

90119T0101

main90119-T0101

90119T0168

main90119-T0168

90167T0012

main90167-T0012

90178T0104

main90178-T0104

9046081005

main90460-81005

9046706188

main90467-06188

9356855014

main93568-55014

20 parts on this diagram · 4 diagrams in section
