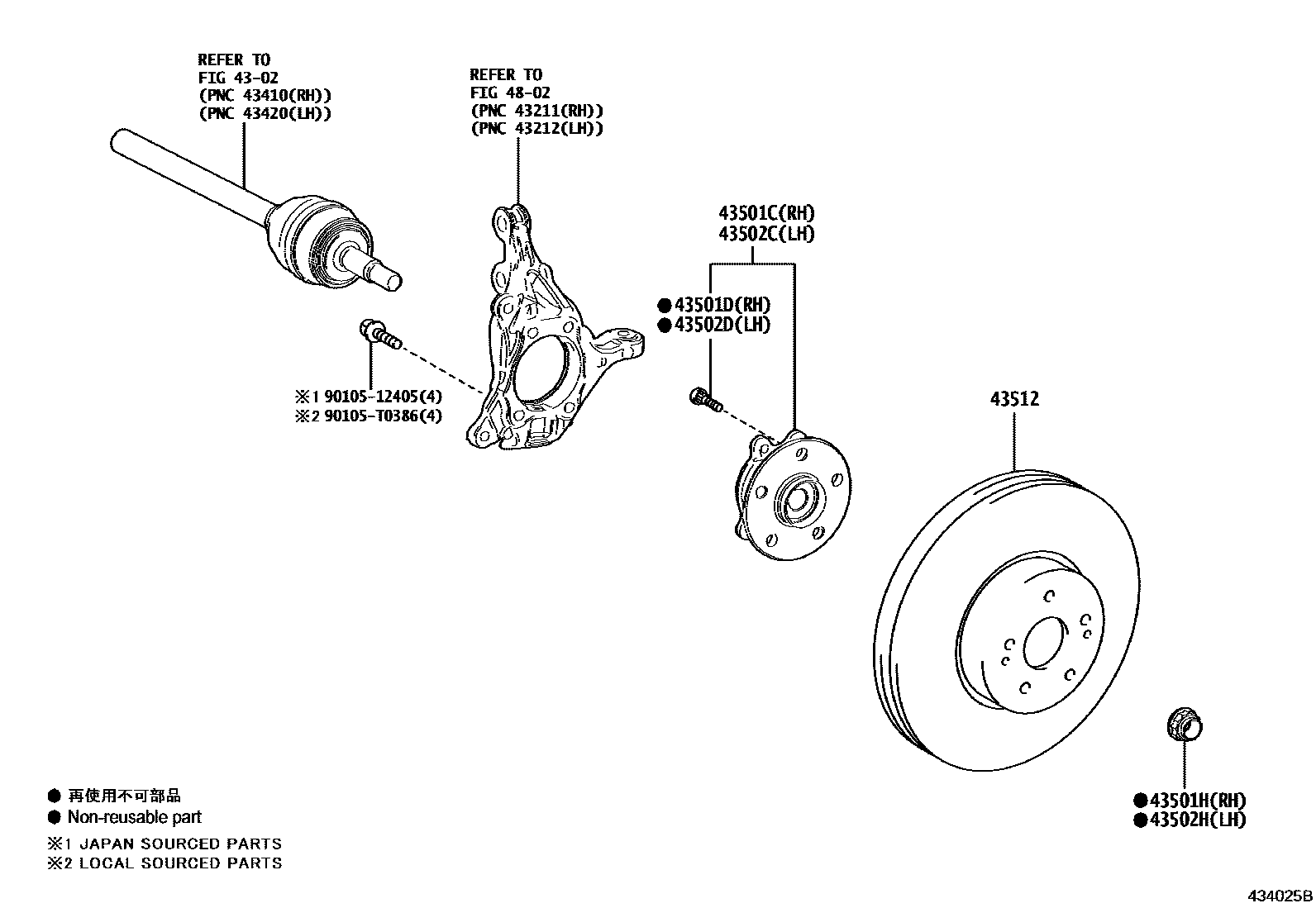

FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-06020iAXVA70,AXVH71,MXVA71..TH202111

main43550-06060iAXVH71..IND201812-202112

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

(J)

main90177-T0017iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

(L)

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-06020iAXVA70,AXVH71,MXVA71..TH202111

main43550-06060iAXVH71..RHD..(IND,TH)201810-202112

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iAXVA70,AXVH71,MXVA71202111

(J)

main90177-T0017iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

(L)

43512DISC, FRONT

main43512-06180×2iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9010512405

main90105-12405

90105T0386

main90105-T0386

11 parts on this diagram · 1 diagram in section
