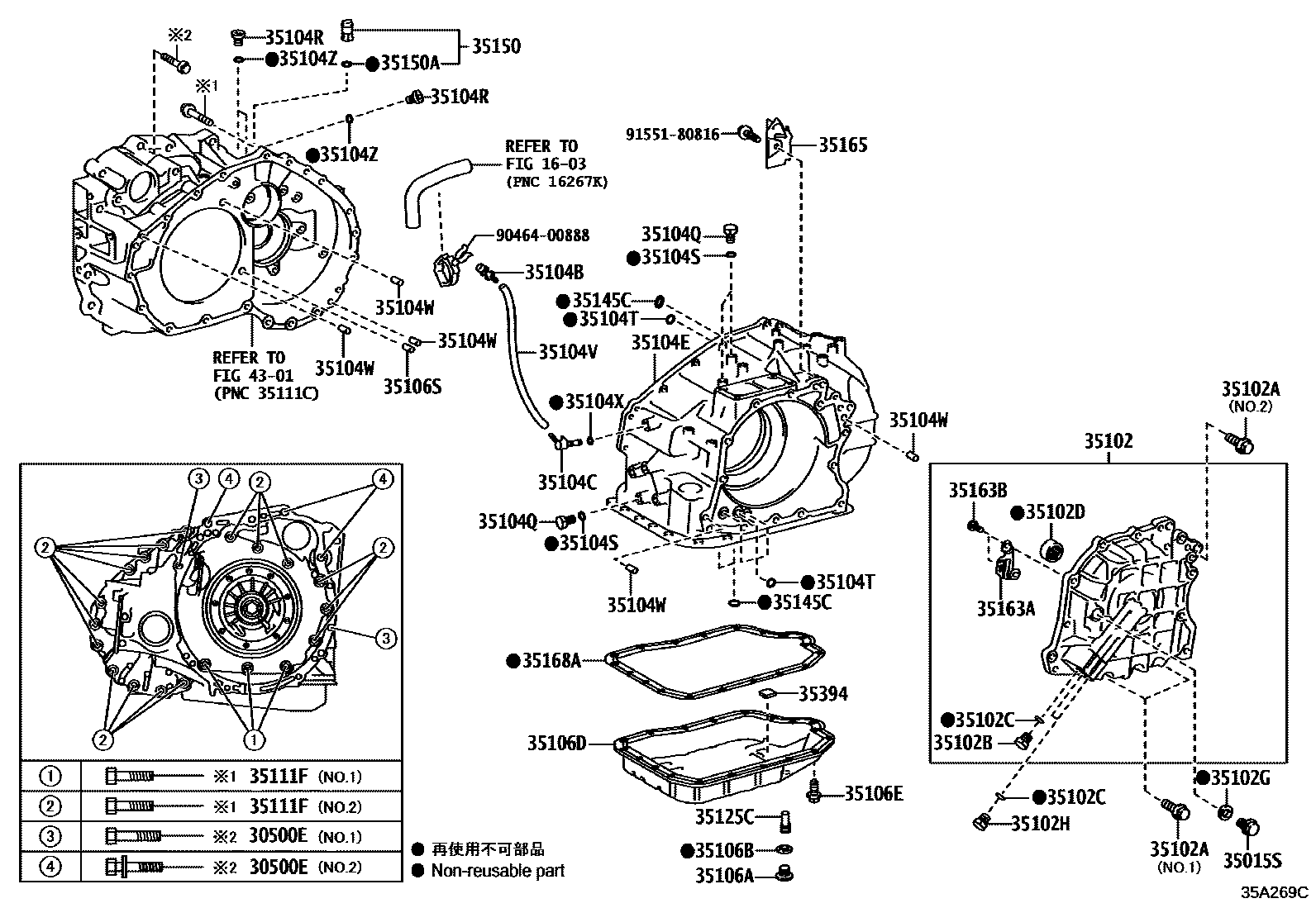

TRANSMISSION CASE & OIL PAN (ATM)
1603
30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)
*10-1.25PX45-36,(J),NO.2
*10-1.25PX45-36,NO.2
*8-1.25PX35-22,(L),NO.3
*10-1.25PX50-30,(L),NO.1
*10-1.25PX45-36,(L),NO.2
*12-1.25PX50-30,(L),NO.1
*12-1.25PX55-30,(J),NO.2
*12-1.25PX55-30,(L),NO.2
*10-1.25PX50-30,(J),NO.1
*12-1.25PX50-30,(J),NO.1
*8-1.25PX35-22,(J),NO.3
35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)
35102COVER SUB-ASSY, TRANSAXLE REAR
35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)
*8-1.25PX28-22,NO.1:REFER ILLUST.
*8-1.25PX28-22,NO.1
*8-1.25PX28-22,SINGAPORE SPEC,NO.1:REFER ILLUST.
*8-1.25PX28-22,SINGAPORE SPEC,NO.2:REFER ILLUST.
*8-1.25PX28-22,NO.2:REFER ILLUST.
*8-1.25PX28-22,NO.2
35102BPLUG(FOR TRANSAXLE REAR COVER)
35102CRING, O(FOR TRANSAXLE REAR COVER PULG)
SINGAPORE SPEC
35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)
35102GGASKET (FOR TRANSAXLE REAR COVER )
35102HPLUG, NO.2 (FOR TRANSAXLE REAR COVER)
35104BPLUG, BREATHER, NO.1 (ATM)
NO.1
NO.2
35104CPLUG, BREATHER, NO.2 (ATM)
35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE
AISIN:REFER 35-01
SINGAPORE SPEC
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
NO.1
35104RPLUG, NO.2 (FOR TRANSAXLE CASE)
NO.1
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
SINGAPORE SPEC
NO.2
NO.1
35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)
NO.1
35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)
35104ZGASKET (FOR TRANSAXLE CASE)
35106APLUG SUB-ASSY, DRAIN (ATM)
35106BGASKET, DRAIN PLUG (ATM)
35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106EBOLT (FOR TRANSAXLE OIL PAN)
35106SPIN, RING (FOR TRANSAXLE CASE)
35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
*8-1.25PX45-22,NO.1:REFER ILLUST.
*8-1.25PX45-22,NO.1
*8-1.25PX45-22,SINGAPORE SPEC,NO.1:REFER ILLUST.
*8-1.25PX35-22,NO.2
*8-1.25PX40-22,NO.1
*8-1.25PX45-22,NO.2
*8-1.25PX45-22,NO.2:REFER ILLUST.
*8-1.25PX45-22,SINGAPORE SPEC,NO.2:REFER ILLUST.
35125CTUBE, TRANSMISSION OIL FILLER, NO.1
35150PLUG ASSY, TRANSMISSION CASE
35150ARING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)
35163APLATE, TRANSAXLE REAR COVER
35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)
35165PLATE, TRANSMISSION CASE, NO.1
35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
4301
9046400888
main90464-00888
9155180816
main91551-80816
39 parts on this diagram · 3 diagrams in section
