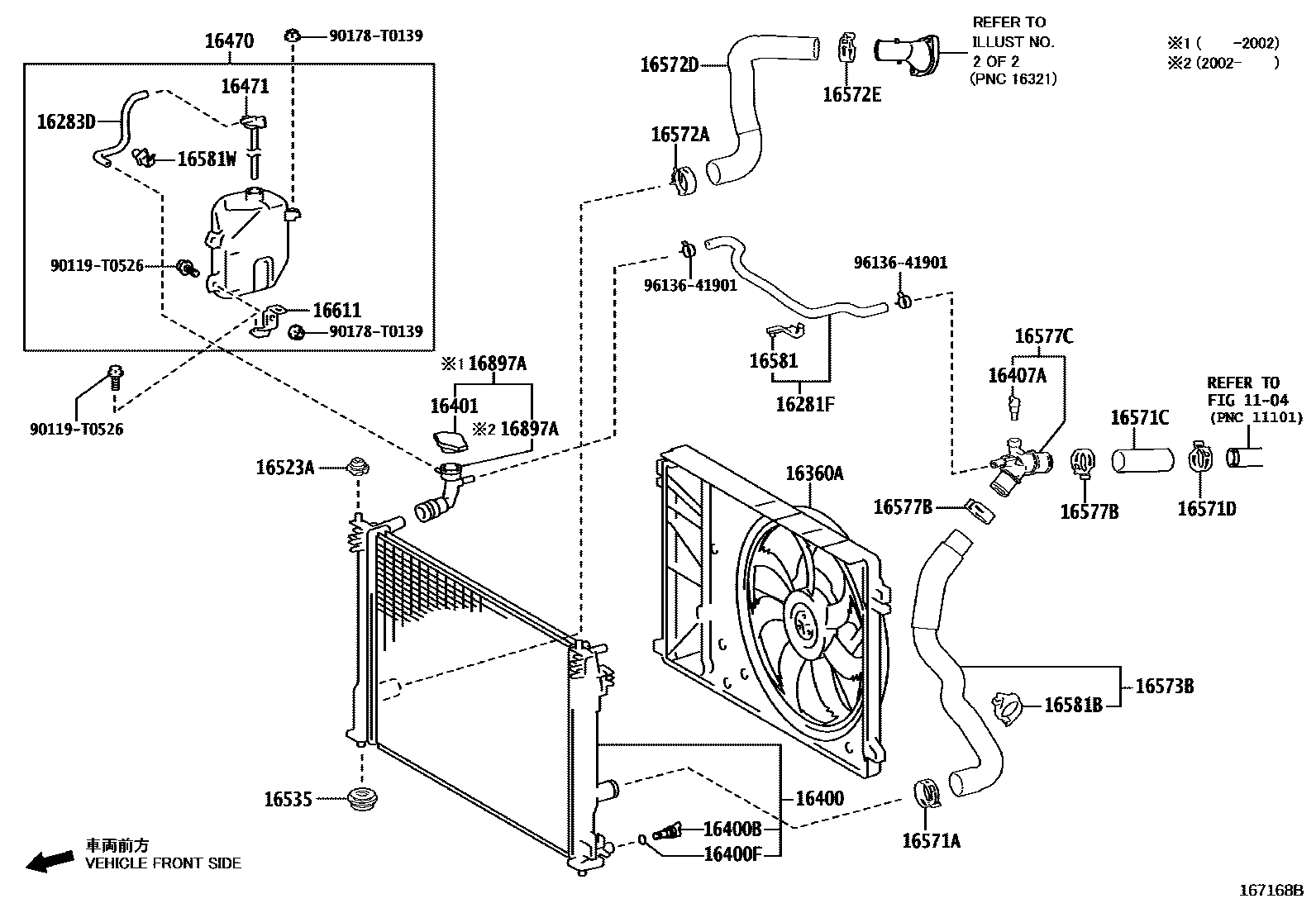

RADIATOR & WATER OUTLET

0001 1RADIATOR SIDE 0002 1RADIATOR SIDE 0003 1RADIATOR SIDE 0004 1ENGINE SIDE 0005 1ENGINE SIDE 0006 1ENGINE SIDE 0007 1ENGINE SIDE,W(ENGINE OIL COOL0009 1ENGINE SIDE,W/O(ENGINE OIL CO0011 1ENGINE SIDE 0012 1ENGINE SIDE 0014 1RADIATOR SIDE 0015 1ENGINE SIDE

1104CYLINDER HEAD

→ Go to FIG 11-04

16281HOSE, WATER BY-PASS, NO.4

main16281-24030iM20AFKS..MXVA71202111

main16281-25020iA25AFXS..AXVH71..IND201812-201906

main16281-25021iA25#..AXVA70,AXVH71..RHD..(25,25G,HBDG,HBDV)201810-202112

main16281-36140i6AR#..ASV71201810-202110

main99555-10200iA25#..AXVA70,AXVH71202111

16281FHOSE, WATER BY-PASS, NO.5

main16282-0V040i2ARFE,6AR#..ASV7#201810-202110

main16282-F0030iA25AFKB,A25AFKS..AXVA70202111

main16282-F0040iA25AFXS..AXVH71..IDN201810-202110

main16282-F0310iM20AFKS..MXVA71202111

16283HOSE, WATER BY-PASS, NO.6

main16283-24010iM20AFKS..MXVA71202111

main16283-25010iA25AFKB,A25AFKS..AXVA70; A25AFKS..AXVA70..25Q202111

LAOS SPEC; MYANMAR SPEC

main16283-25020iA25AFXS..AXVH71..RHD..(IND,TH)201810-202112

16283DHOSE, WATER BY-PASS, NO.6

main16283-F0080iA25#..AXVA70,AXVH71; M20AFKS..MXVA71202111

16360AFAN ASSY, W/MOTOR

main16360-31510iA25AFXS..AXVH71..RHD..(IND,TH)201810-202112

main16360-F0030iA25AFKB,A25AFKS..AXVA70; M20AFKS..MXVA71202111

16400RADIATOR ASSY

main16400-25141iA25AFXS..AXVH71..RHD..(IND,TH)201810-202112

main16400-F0030iA25AFKB,A25AFKS..AXVA70; M20AFKS..MXVA71202111

16400BPLUG, RADIATOR DRAIN COCK

main16417-0C180iA25AFKB,A25AFKS..AXVA70; M20AFKS..MXVA71202111

main16417-21280×2iA25AFXS..AXVH71202111

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-0L060iA25AFKB,A25AFKS..AXVA70; M20AFKS..MXVA71202111

main16492-21050×2iA25AFXS..AXVH71202111

16401CAP SUB-ASSY, RADIATOR

main16401-36030iA25AFXS..AXVH71..IDN201810-202110

main16401-F0010iA25AFKB,A25AFKS..AXVA70; M20AFKS..MXVA71202111

16407ACOCK SUB-ASSY, RADIATOR DRAIN

main16407-36160i2ARFE,6AR#..ASV7#201810-202110

16470TANK ASSY, RADIATOR RESERVE

main16470-0V100iA25AFXS,2ARFE,6AR#..ASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

16471CAP SUB-ASSY, RESERVE TANK

main16405-0V070iA25AFXS,2ARFE,6AR#..ASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

16523ACUSHION, RADIATOR SUPPORT

main16523-F0030×2iA25#..AXVA70,AXVH71; M20AFKS..MXVA71202111

16535SUPPORT, RADIATOR, LOWER

main16535-20010×2iA25AFXS..AXVH71202111

main16535-20030×2iA25AFKB,A25AFKS..AXVA70; M20AFKS..MXVA71202111

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-T0067i6AR#..ASV71201810-202110

(L)

main90466-T0068iA25AFXS,2ARFE..ASV70,AXVH71..IDN,MA,PH,VN201810-202110

(L)

main96136-44301i6AR#..ASV71201810-202110

(J)

main96136-44801iA25#..AXVA70,AXVH71202111

(J)

16571CHOSE, RADIATOR, NO.1

main16571-0V250i2ARFE..ASV70201810-202110

main16571-0V260i6AR#..ASV71201810-202110

main16571-F0030iA25AFKB,A25AFKS..AXVA70202111

main16571-F0040iA25AFXS..AXVH71202111

main16571-F0180iM20AFKS..MXVA71202111

16571DCLIP, RADIATOR HOSE, NO.1

main90466-T0067iA25AFXS,2ARFE..ASV70,AXVH71..IDN,MA,PH,VN201810-202110

(L)

main90466-T0068i6AR#..ASV71201810-202110

(L)

main96136-44301iA25#..AXVA70,AXVH71202111

(J)

main96136-44801×2iM20AFKS..MXVA71202111

(J)

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-T0067i6AR#..ASV71201810-202110

(L)

main90466-T0068iA25#..AXVA70,AXVH71202111

(L)

main96136-44301i6AR#..ASV71201810-202110

(J)

main96136-44801iA25AFXS,2ARFE..ASV70,AXVH71..IDN,MA,PH,VN201810-202110

(J)

16572DHOSE, RADIATOR, NO.2

main16572-0V250i2ARFE,6AR#..ASV7#201810-202110

main16572-F0030iA25AFKB,A25AFKS..AXVA70201810-202110

main16572-F0040iA25AFXS..AXVH71..RHD..(IND,TH)201810-202112

main16572-F0290iM20AFKS..MXVA71202111

16572ECLIP, RADIATOR HOSE, NO.2

main90466-T0067iA25#..AXVA70,AXVH71; M20AFKS..MXVA71202111

(L)

main90466-T0068i6AR#..ASV71201810-202110

(L)

main96136-44301iA25AFXS,2ARFE..ASV70,AXVH71..IDN,MA,PH,VN201810-202110

(J)

main96136-44801i6AR#..ASV71201810-202110

(J)

16573BHOSE, RADIATOR, NO.3

main16573-0V030i2ARFE,6AR#..ASV7#201810-202110

16577BCLAMP OR CLIP, HOSE(FOR RADIATOR PIPE)

main90466-T0067×2i2ARFE,6AR#..ASV7#201810-202110

16577CPIPE, RADIATOR

main16577-0V030i2ARFE,6AR#..ASV7#201810-202110

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-36090i2ARFE,6AR#..ASV7#201810-202110

16581BCLAMP, HOSE(FOR RADIATOR HOSE)

main16581-25120iA25AFXS..AXVH71..IDN201810-202110

NO.2:REFER ILLUST.

main16581-F0120i2ARFE,6AR#..ASV7#; A25AFXS..AXVH71..IDN201810-202110

NO.1:REFER ILLUST.

main16581-F0130iA25AFKB,A25AFKS..AXVA70202111

NO.2:REFER ILLUST.

16581WCLAMP, HOSE(FOR WATER HOSE)

main16581-25050iA25#..AXVA70,AXVH71; M20AFKS..MXVA71202111

16611BRACKET, RADIATOR RESERVE TANK

main16611-0V040iA25#..AXVA70,AXVH71; M20AFKS..MXVA71202111

16897ANECK, FILLER

main16897-25030iA25AFXS..AXVH71201810-202002

main16897-25031iA25AFXS..AXVH71..IDN202002-202110

main16897-F0020iA25AFKB,A25AFKS,2ARFE,6AR#..ASV7#,AXVA70201810-202002

main16897-F0021iA25AFKB,A25AFKS..AXVA70; M20AFKS..MXVA71202111

90119T0526

main90119-T0526

90178T0139

main90178-T0139

9613641901

main96136-41901

32 parts on this diagram · 12 diagrams in section
