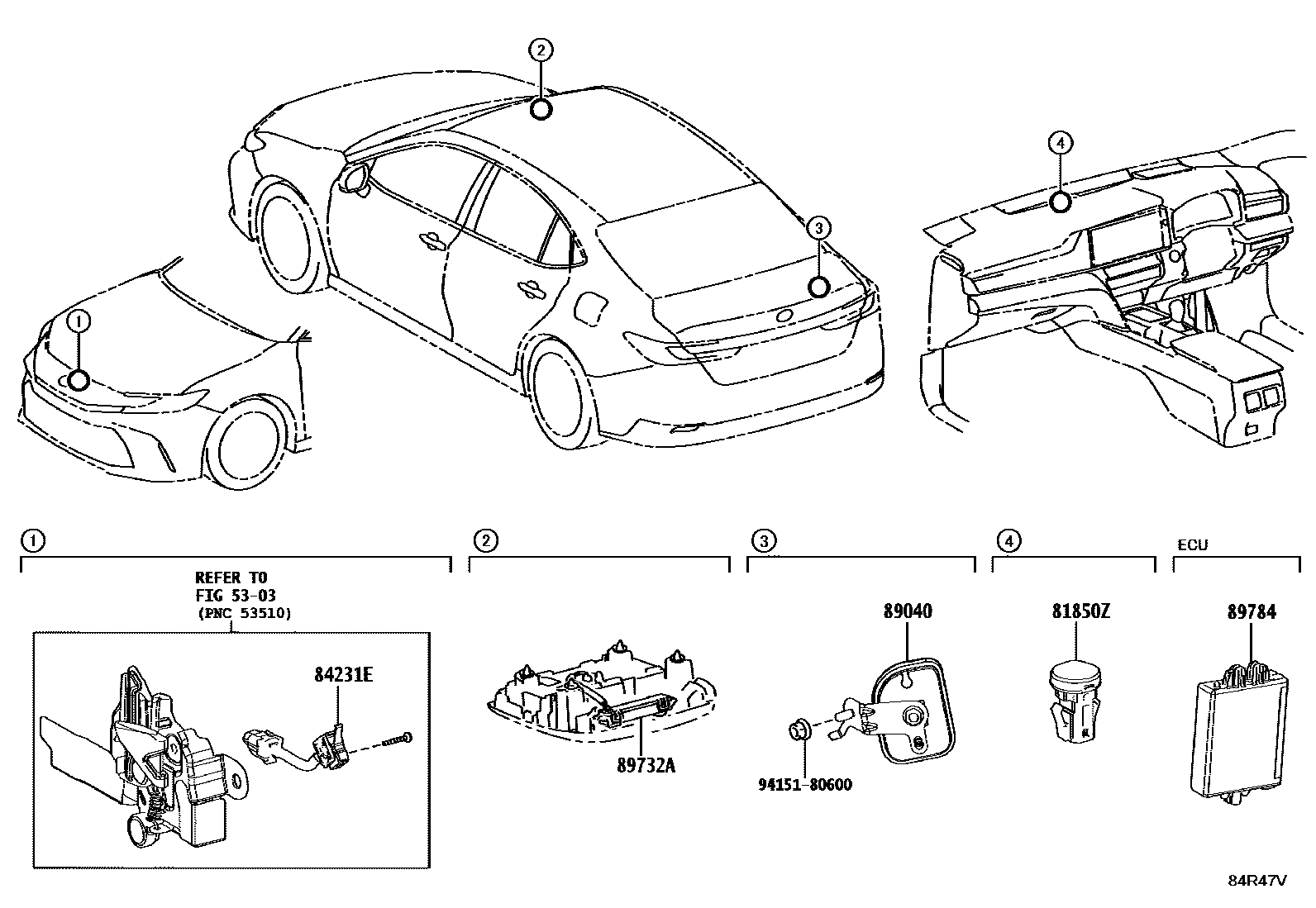

ANTI-THEFT DEVICE

0001 1 0002 1

5303HOOD LOCK & HINGE

→ Go to FIG 53-03

81850ZLAMP ASSY, THEFT WARNING INDICATOR

main81850-55200iAXVA80,AXVH80,MXVA80202410

84231ESWITCH, COURTESY(FOR SECURITY)

main84237-06130iAXVA80,AXVH80..RHD202410

main84237-06160iAXVH80,MXVA80..LHD202410

89040SIREN ASSY, THEFT WARNING

main89040-06010iAXVH80..RHD..V..THAI202410

MOON ROOF-WITHOUT

89732ASENSOR, THEFT WARNING ULTRASONIC

main89732-33080iAXVH80..RHD..V..THAI202410

MOON ROOF-WITHOUT

89784COMPUTER, IMMOBILIZER CODE

main89784-06100iAXVA80,AXVH80,MXVA80202410

9415180600

main94151-80600

7 parts on this diagram · 2 diagrams in section
