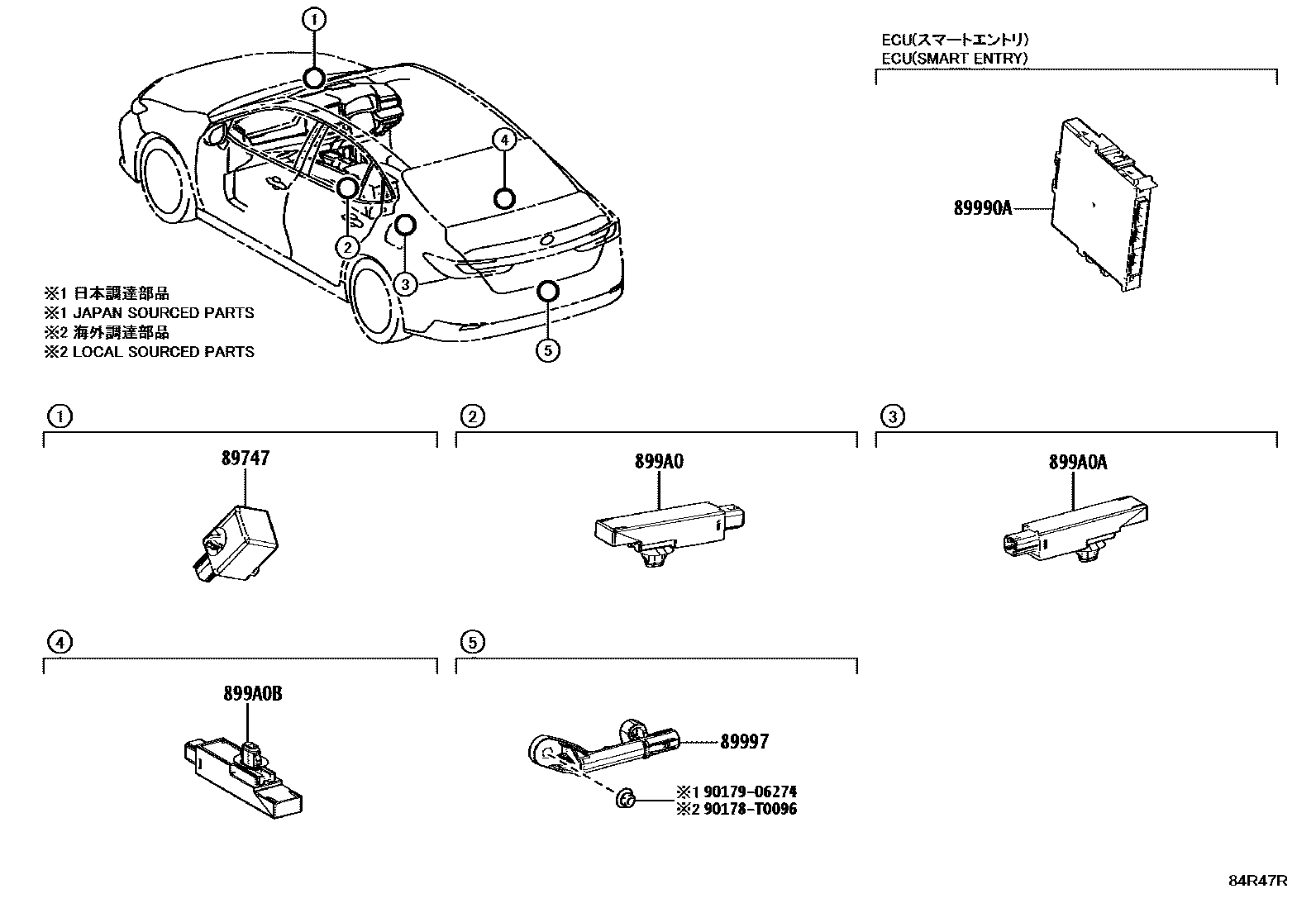

WIRELESS DOOR LOCK

0001 1 0002 1

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iAXVA80,AXVH80,MXVA80..THAI202410

89990ACOMPUTER ASSY, SMART KEY

main899H0-06130iAXVH80..THAI202410

main899H0-06140iAXVA80..V; MXVA80202410

BRUNEI SPEC; MALAYSIA SPEC

main899H0-06160iAXVA80202410

main899H0-33240iAXVH80..IND202412

main899H0-06150iAXVH80..RHD..V..THAI202410

INDONESIA SPEC

89997ANTENNA, ELECTRICAL KEY

main89997-30100iAXVA80,AXVH80,MXVA80202410

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-0A010iAXVA80,AXVH80,MXVA80202410

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-0A010iAXVA80,AXVH80,MXVA80202410

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-0A010iAXVA80,AXVH80,MXVA80202410

90178T0096

main90178-T0096

9017906274

main90179-06274

8 parts on this diagram · 2 diagrams in section
