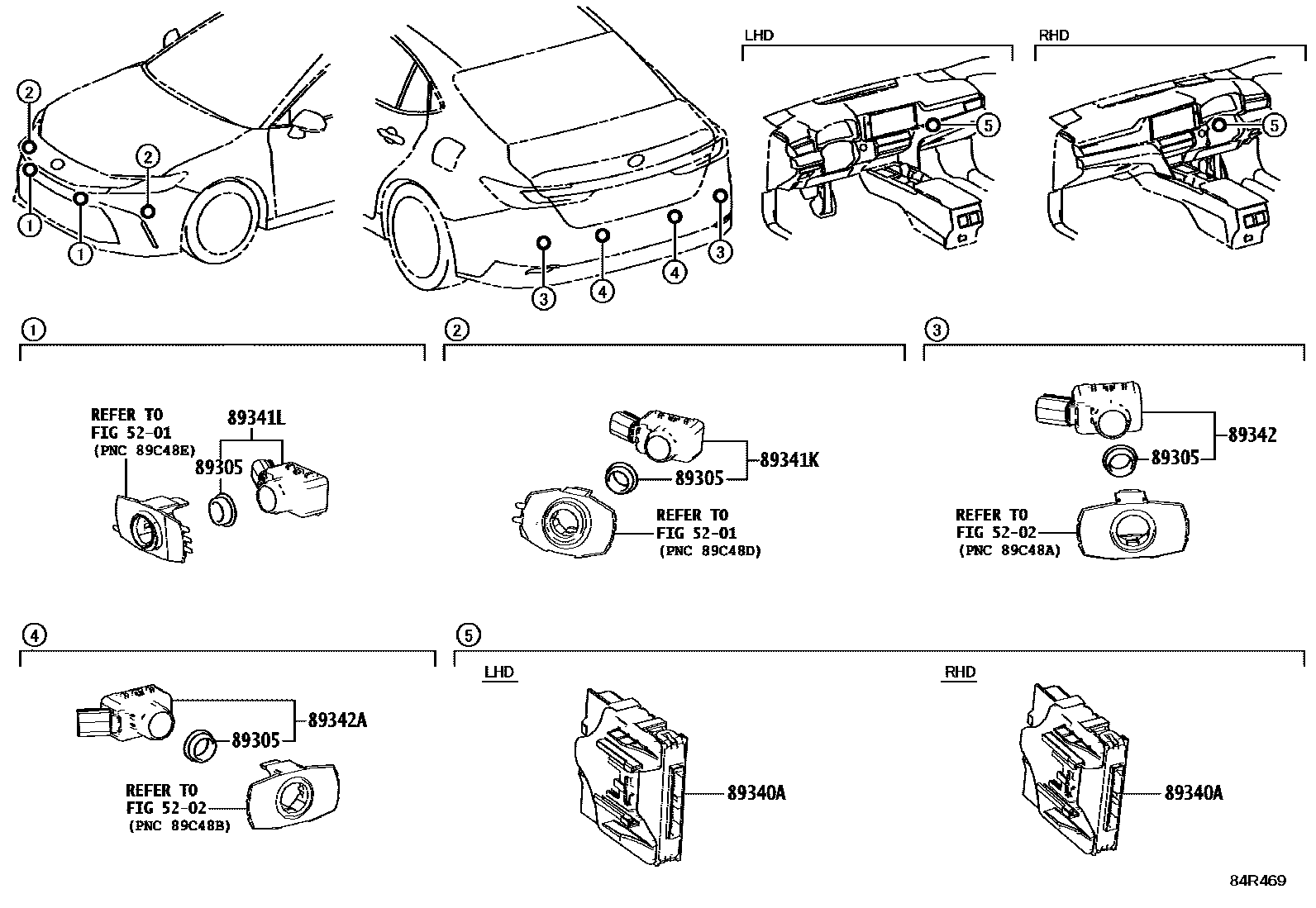

CLEARANCE & BACK SONAR
5201FRONT BUMPER & BUMPER STAY
5202REAR BUMPER & BUMPER STAY
89305CUSHION SET, ULTRASONIC SENSOR
89340ACOMPUTER ASSY, CLEARANCE WARNING
89341KSENSOR, ULTRASONIC, FRONT CORNER
PLATINUM WHITE PEARL MC.,089
ATTITUDE BLACK MC.,218
EMOTIONAL RED 2,3U5
DK. BLUE MC.,8X8
PRECIOUS METAL,1L5
CEMENT GRAY ME.,1H5
89341LSENSOR, ULTRASONIC, FRONT CENTER
PLATINUM WHITE PEARL MC.,089
ATTITUDE BLACK MC.,218
EMOTIONAL RED 2,3U5
DK. BLUE MC.,8X8
PRECIOUS METAL,1L5
CEMENT GRAY ME.,1H5
89342SENSOR, ULTRASONIC, REAR CORNER
PLATINUM WHITE PEARL MC.,089
ATTITUDE BLACK MC.,218
EMOTIONAL RED 2,3U5
DK. BLUE MC.,8X8
PRECIOUS METAL,1L5
CEMENT GRAY ME.,1H5
89342ASENSOR, ULTRASONIC, REAR CENTER
PLATINUM WHITE PEARL MC.,089
ATTITUDE BLACK MC.,218
EMOTIONAL RED 2,3U5
DK. BLUE MC.,8X8
PRECIOUS METAL,1L5
CEMENT GRAY ME.,1H5
8 parts on this diagram · 1 diagram in section
