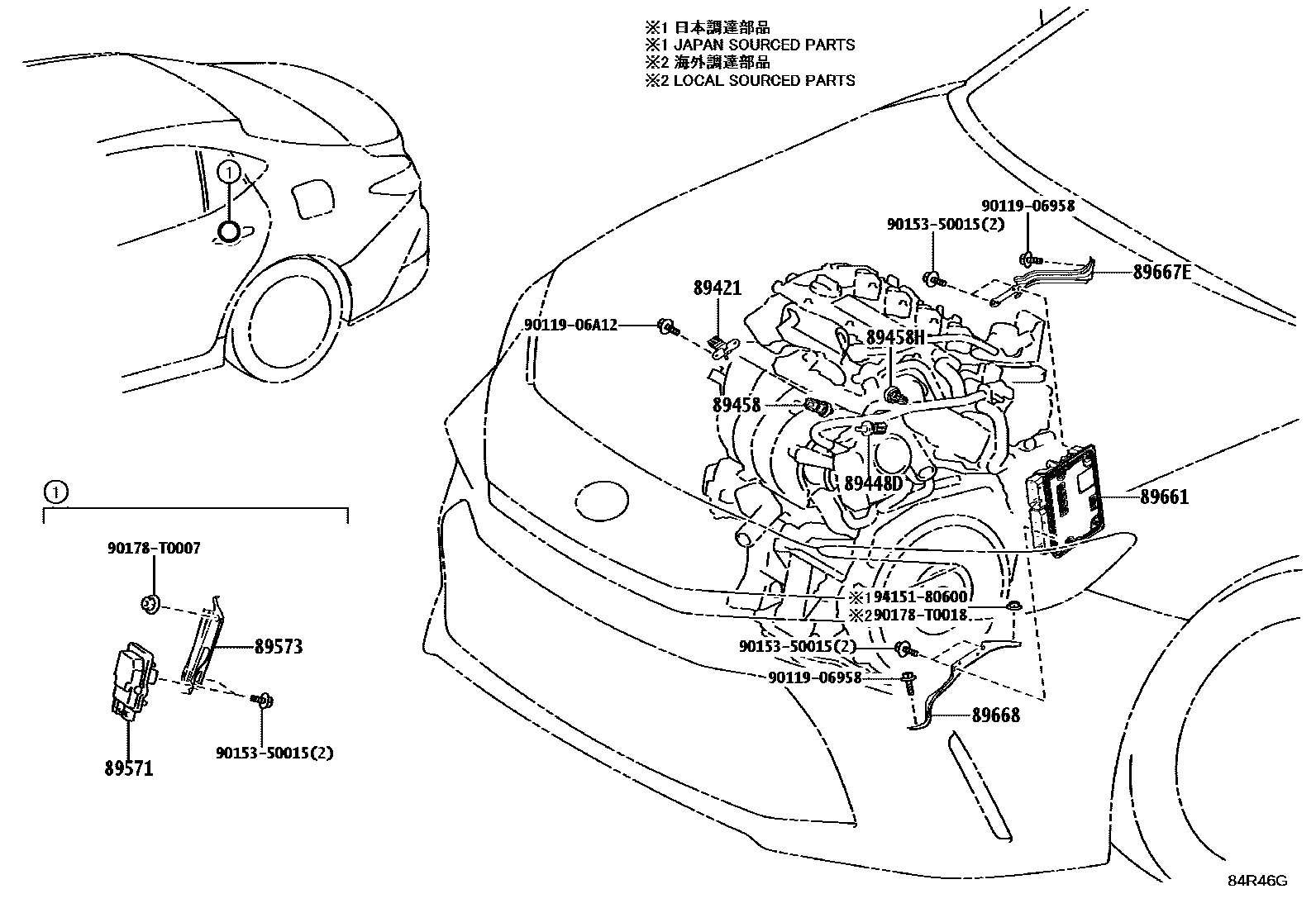

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iAXVA80,AXVH80,MXVA80202410

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iAXVA80,AXVH80,MXVA80202410

89458SENSOR, FUEL PRESSURE

main89458-33030iAXVA80,AXVH80,MXVA80202410

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33042iAXVA80,AXVH80,MXVA80202410

89571COMPUTER, FUEL PUMP CONTROL

main89571-42010iAXVA80,AXVH80,MXVA80202410

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-06070iAXVA80,AXVH80,MXVA80202410

89661COMPUTER, ENGINE CONTROL

main89661-0X690iAXVH80202410

DENSO

main89661-0X790iAXVA80202410

DENSO

main89661-0X800iMXVA80202410

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-06300iAXVA80,MXVA80202410

main89667-06360iAXVH80202410

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-06300iAXVA80,MXVA80202410

main89668-06390iAXVH80..LHD202410

main89668-06400iAXVH80..RHD202410

9011906958

main90119-06958

9011906A12

main90119-06A12

9015350015

main90153-50015

90178T0007

main90178-T0007

90178T0018

main90178-T0018

9415180600

main94151-80600

15 parts on this diagram · 3 diagrams in section
