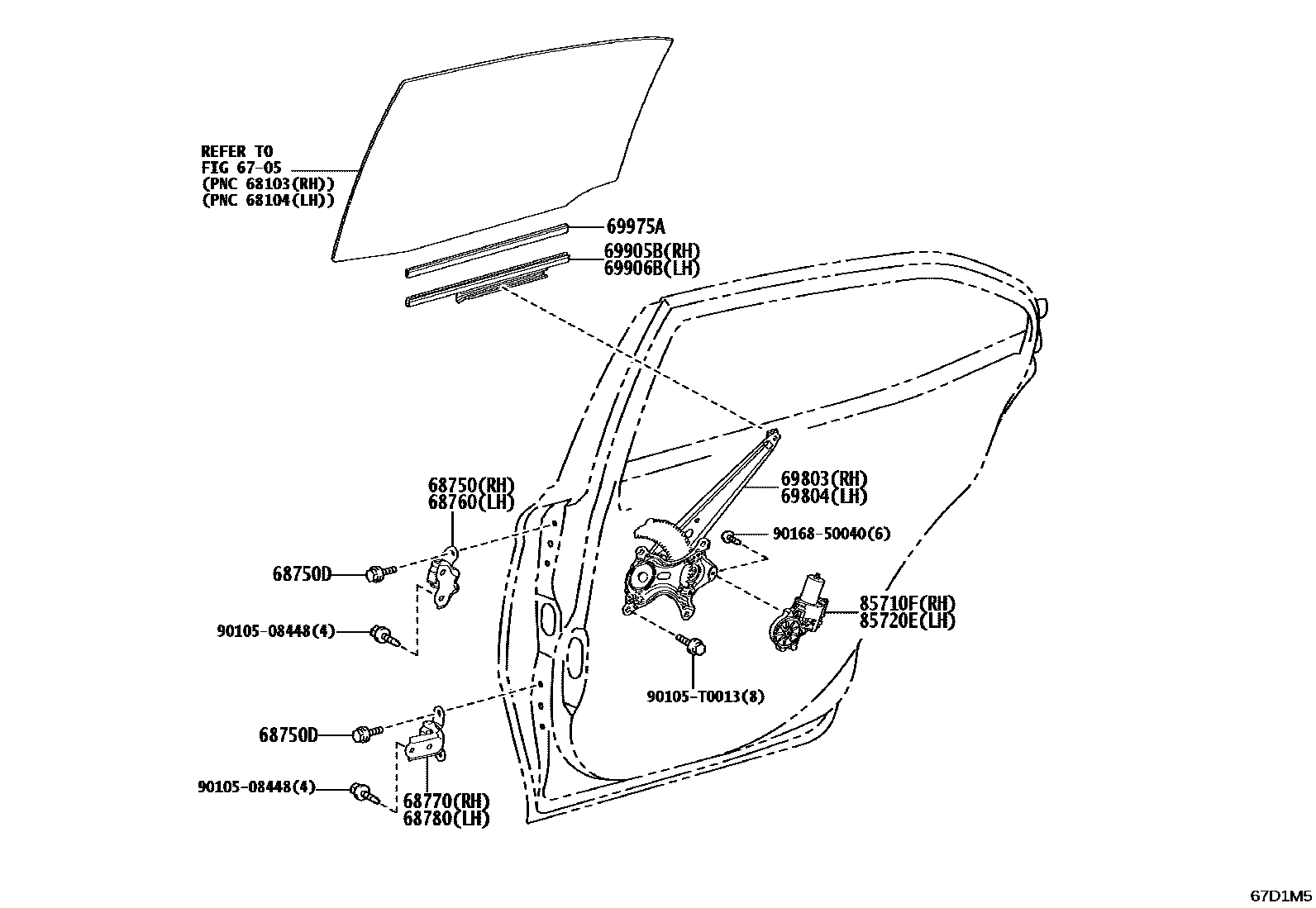

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0D030iAXVA80,AXVH80,MXVA80202410

68750DBOLT NO.1(FOR REAR DOOR HINGE)

main90105-08485×8iAXVA80,AXVH80,MXVA80202410

JAPAN SOURCED PARTS

main90105-T0343×8iAXVA80,AXVH80,MXVA80202410

LOCAL SOURCED PARTS

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0D030iAXVA80,AXVH80,MXVA80202410

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-06070iAXVA80,AXVH80,MXVA80202410

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-06070iAXVA80,AXVH80,MXVA80202410

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0K110iAXVA80,AXVH80,MXVA80202410

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0K110iAXVA80,AXVH80,MXVA80202410

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-33020iAXVA80,AXVH80,MXVA80202410

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-33020iAXVA80,AXVH80,MXVA80202410

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-33010×2iAXVA80,AXVH80,MXVA80202410

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-0A190iAXVA80,AXVH80,MXVA80202410

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-0A200iAXVA80,AXVH80,MXVA80202410

9010508448

main90105-08448

90105T0013

main90105-T0013

9016850040

main90168-50040

15 parts on this diagram · 1 diagram in section
