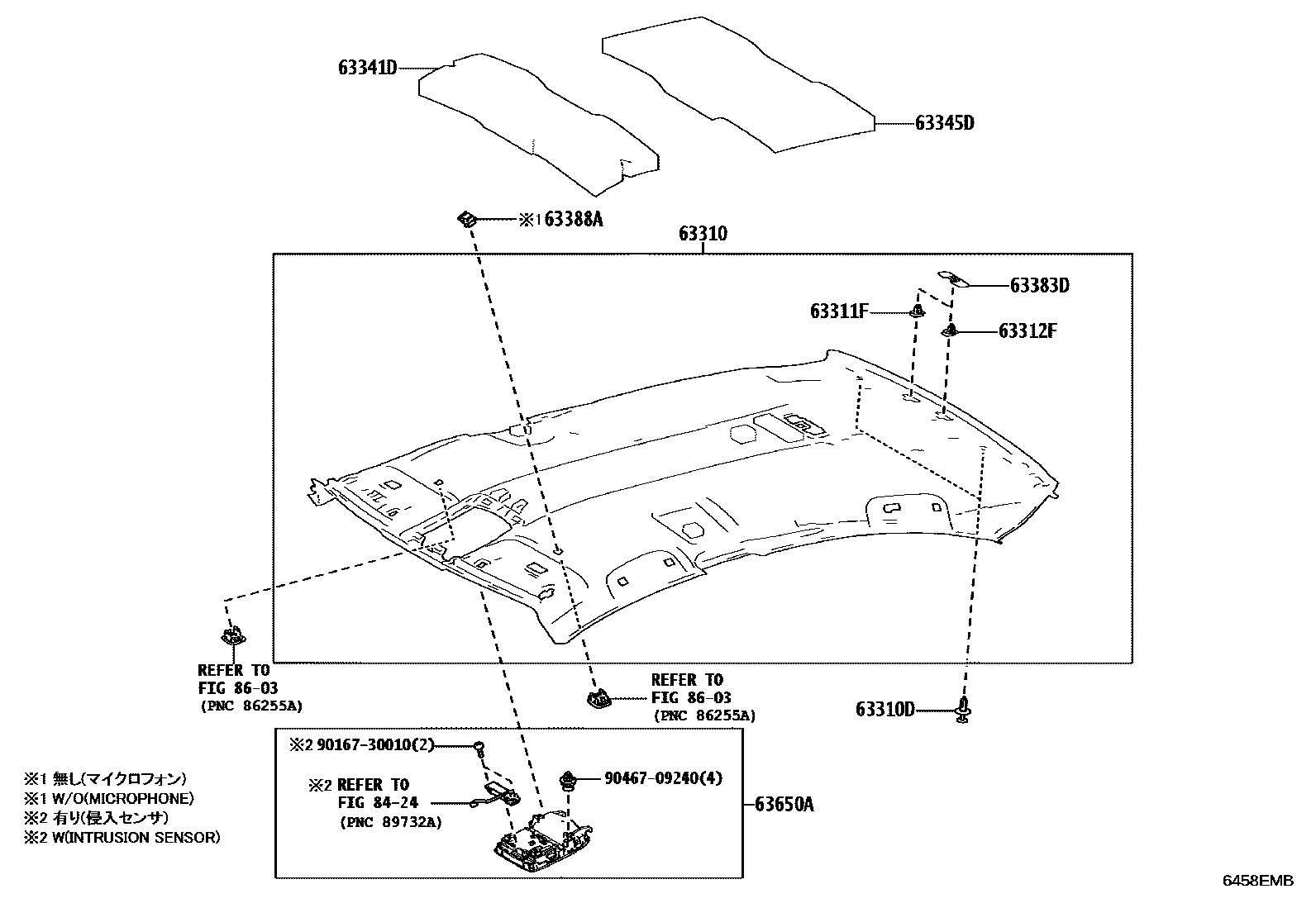

ROOF HEADLINING & SILENCER PAD

0001 1NORMAL ROOF 0002 1MOON ROOF 0003 1PANORAMA ROOF

63310HEADLINING ASSY, ROOF

main63310-06J50-C0iAXVA80,AXVH80..G; AXVA80,AXVH80..RHD..V..THAI202410

BLACK,TRIM2#,4#; MOON ROOF-WITHOUT,BLACK,TRIM2#,4#

main63310-06J60-C0iAXVH80..LHD; MXVA80;AXVH80..IND202410

BLACK,TRIM2#,4#

main63310-33B80-C0iAXVA80,AXVH80..(Q,V)..THAI202410

BLACK,TRIM2#,4#

63310DCLIP, ROOF HEADLINING

main90467-05168-C0×2iAXVA80,AXVH80,MXVA80202410

BLACK,TRIM2#,4#

63311FCLIP, ROOF HEADLINING, NO.1

main90467-10181iAXVA80,AXVH80,MXVA80202410

63312FCLIP, ROOF HEADLINING, NO.2

main90467-09126iAXVA80,AXVH80,MXVA80202410

63341DPAD, ROOF SILENCER, FRONT

main63341-06240iAXVA80,AXVH80..G; AXVA80,AXVH80..RHD..V..THAI202410

MOON ROOF-WITHOUT

63345DPAD, ROOF SILENCER, CENTER

main63343-06240iAXVA80,AXVH80..G; AXVA80,AXVH80..RHD..V..THAI202410

MOON ROOF-WITHOUT

63383DRETAINER, ROOF HEADLINING, REAR

main63383-24030×2iAXVA80,AXVH80,MXVA80202410

63388ACOVER, ROOF HEADLINING HOLDER

main63388-52030iAXVA80..G202410

63650ABOX ASSY, ROOF CONSOLE

main63650-33B30-C0iAXVA80,AXVH80..G; AXVA80..V202410

BLACK,TRIM2#,4#; MOON ROOF-WITHOUT,BLACK,TRIM2#,4#

main63650-33B80-C0iAXVH80..LHD; MXVA80202410

BLACK,TRIM2#,4#

main63650-33B90-C0iAXVA80,AXVH80..(Q,V)..THAI202410

BLACK,TRIM2#,4#

main63650-33C50-C0iAXVH80..IND202412

BLACK,TRIM2#,4#

main63650-33C40-C0iAXVH80..RHD..V..THAI202410

MOON ROOF-WITHOUT,BLACK,TRIM2#,4#

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

9016730010

main90167-30010

9046709240

main90467-09240

13 parts on this diagram · 3 diagrams in section
