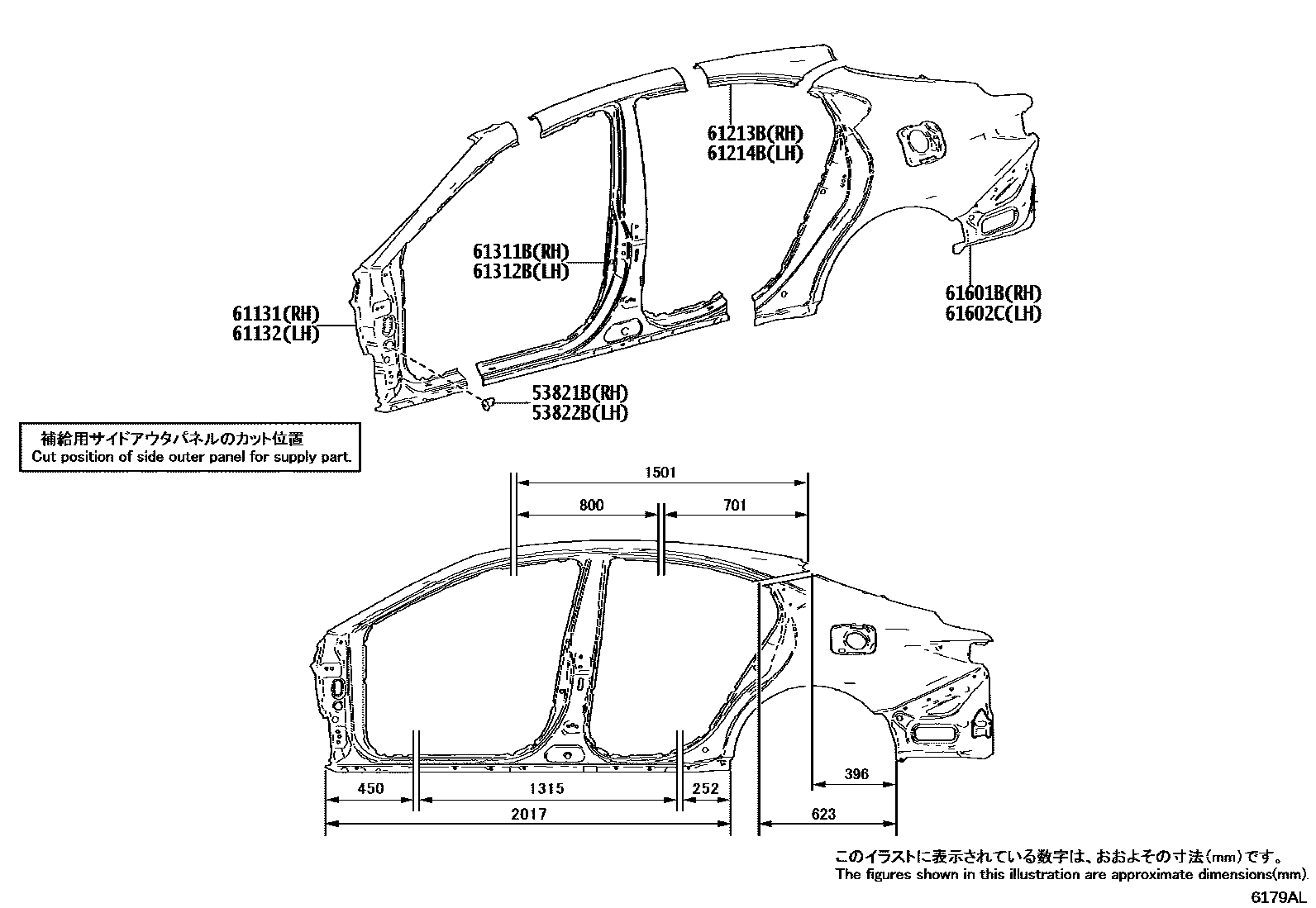

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL, LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-06210iAXVA80,AXVH80,MXVA80202410

53822BBRACKET, FRONT FENDER, REAR LH

main53821-06210iAXVA80,AXVH80,MXVA80202410

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-06200iAXVA80,AXVH80,MXVA80202410

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-06200iAXVA80,AXVH80,MXVA80202410

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-06310iAXVA80,AXVH80,MXVA80202410

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-06300iAXVA80,AXVH80,MXVA80202410

61311BPILLAR, CENTER BODY, OUTER RH

main61311-06180iAXVA80,AXVH80,MXVA80202410

61312BPILLAR, CENTER BODY, OUTER LH

main61312-06180iAXVA80,AXVH80,MXVA80202410

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-06450iAXVH80..THAI;AXVA80,MXVA80..Q,V202410

main61601-06460iAXVA80..G;AXVH80..IND202410

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-06450iAXVH80..THAI;AXVA80,MXVA80..Q,V202410

main61602-06460iAXVA80..G;AXVH80..IND202410

10 parts on this diagram · 3 diagrams in section
