EPC Data

RADIATOR GRILLE

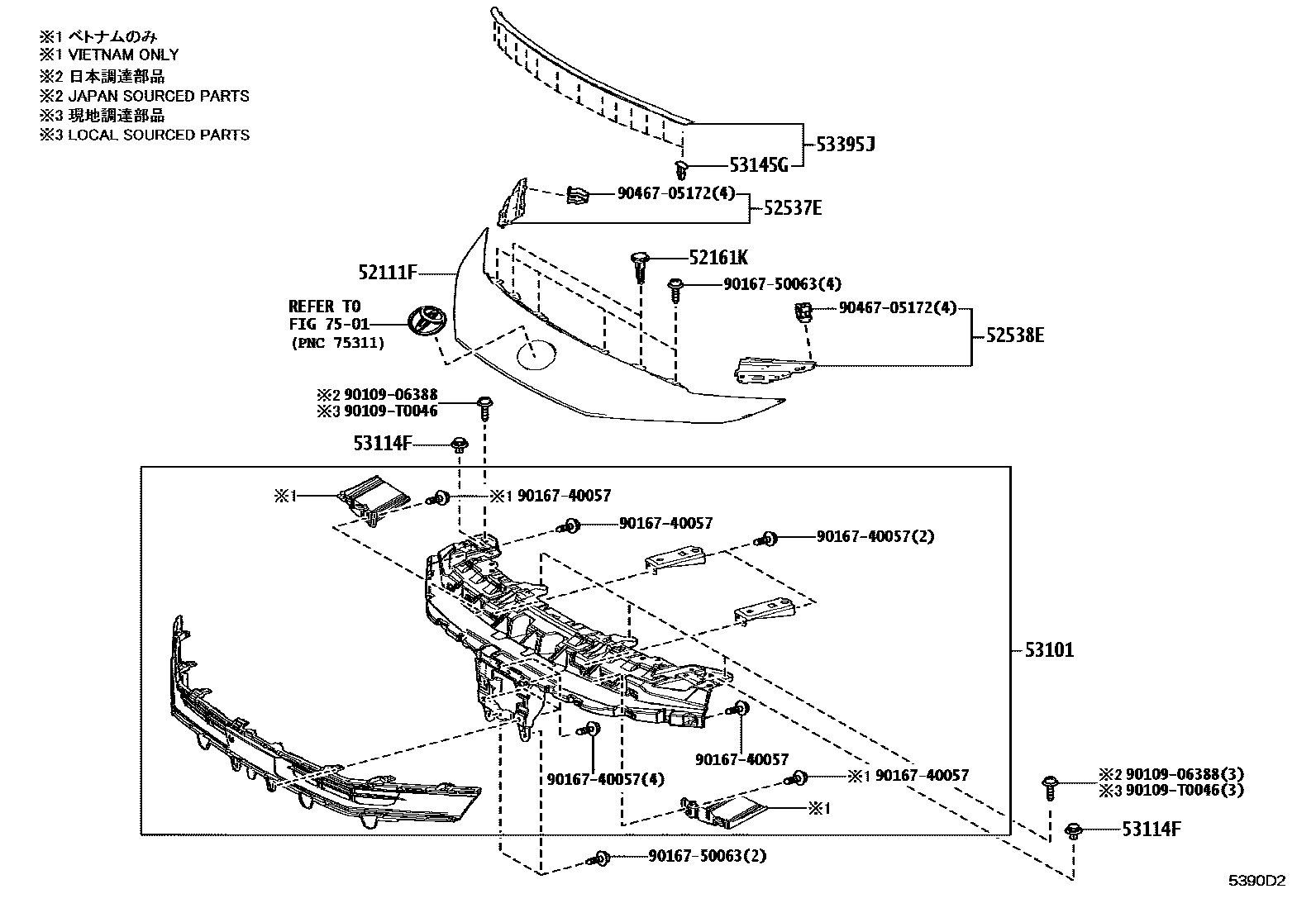

Parts diagram
52111FBAR, FRONT BUMPER, CENTER
main52111-06905i202410
52161KPIECE, FRONT BUMPER
main52161-0K040×2i202410
52537ERETAINER, FRONT BUMPER END, RH
main52537-06040i202410
52538ERETAINER, FRONT BUMPER END, LH
main52538-06040i202410
53101GRILLE SUB-ASSY, RADIATOR
main53101-06E80i202410
NO PAINT REQ.
main53101-06G20i202410
NO PAINT REQ.
main53101-06J50supersedes 53101-06J80i202410
NO PAINT REQ.; NO PAINT REQ.,LAOS SPEC; NO PAINT REQ.,PHILIPPINES SPEC
main53101-06J70i202410
NO PAINT REQ.
main53101-06J60supersedes 53101-06J80i202410
NO PAINT REQ.
53114FCLIP, RADIATOR GRILLE
main90467-07215×2i202410
(J)
main90467-T0050×2i202410
(L)
53145GCLIP, RADIATOR GRILLE
main53145-0K010×14i202410
53395JSEAL, HOOD TO FRONT END PANEL
main53395-06180i202410
7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)
→ Go to FIG 75-01
9010906388
main90109-06388
90109T0046
main90109-T0046
9016740057
main90167-40057
9016750063
main90167-50063
9046705172
main90467-05172

14 parts on this diagram · 1 diagram in section
