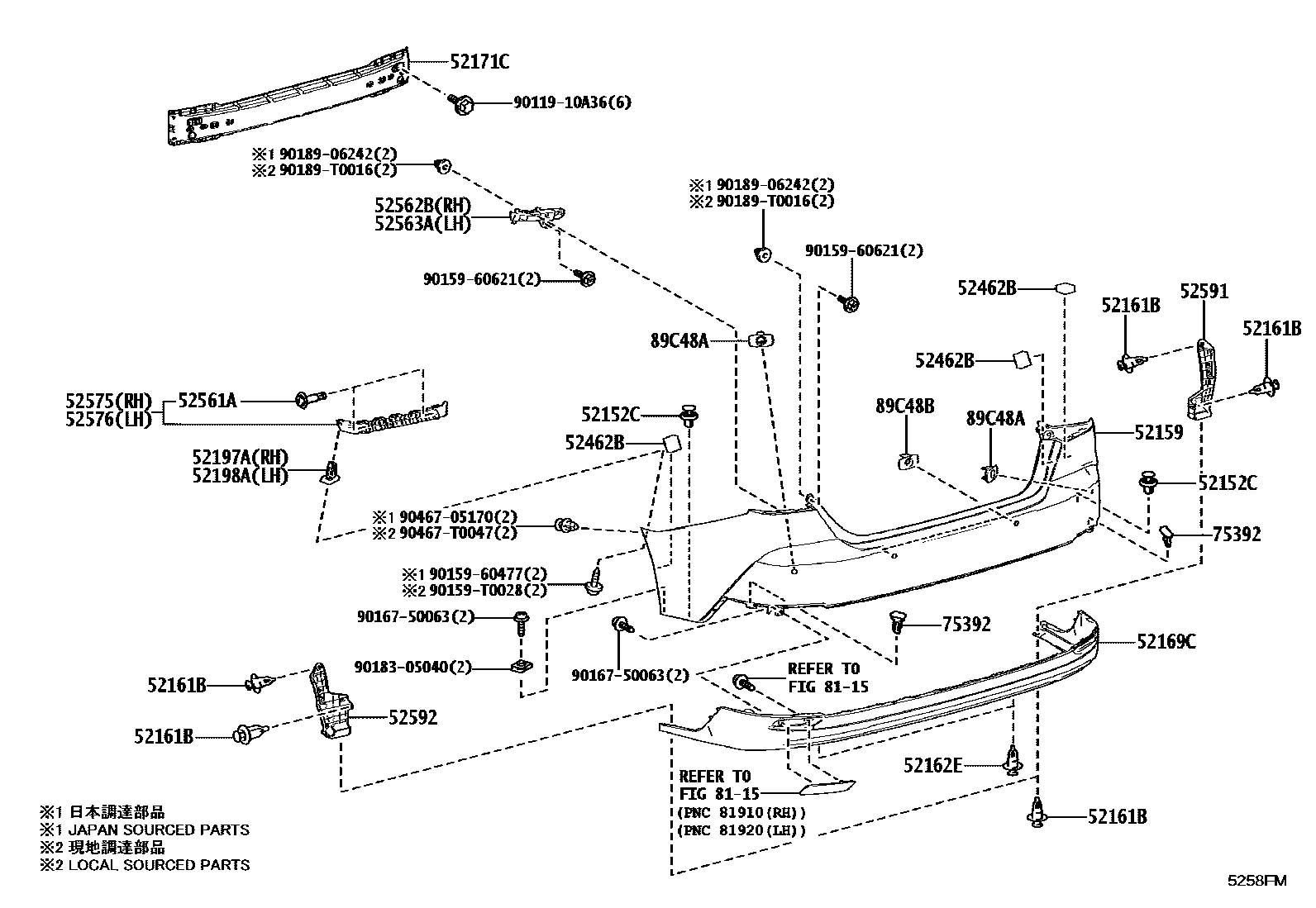

REAR BUMPER & BUMPER STAY
52152CCLIP, REAR BUMPER SIDE
(J)
(L)
52159COVER, REAR BUMPER
PAINT REQ.
52161BPIECE, REAR BUMPER
52162EPIECE, REAR BUMPER
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.
52171CREINFORCEMENT, REAR BUMPER
52197ABRACKET, REAR BUMPER SEAL, RH
52198ABRACKET, REAR BUMPER SEAL, LH
52462BPAD, REAR BUMPER
52561ACLIP(FOR REAR BUMPER RETAINER)
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
75392RETAINER, OUTSIDE MOULDING
(L)
(J)
8115REFLEX REFLECTOR
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
9011910A36
main90119-10A36
9015960477
main90159-60477
9015960621
main90159-60621
90159T0028
main90159-T0028
9016750063
main90167-50063
9018305040
main90183-05040
9018906242
main90189-06242
90189T0016
main90189-T0016
9046705170
main90467-05170
90467T0047
main90467-T0047
30 parts on this diagram · 1 diagram in section
