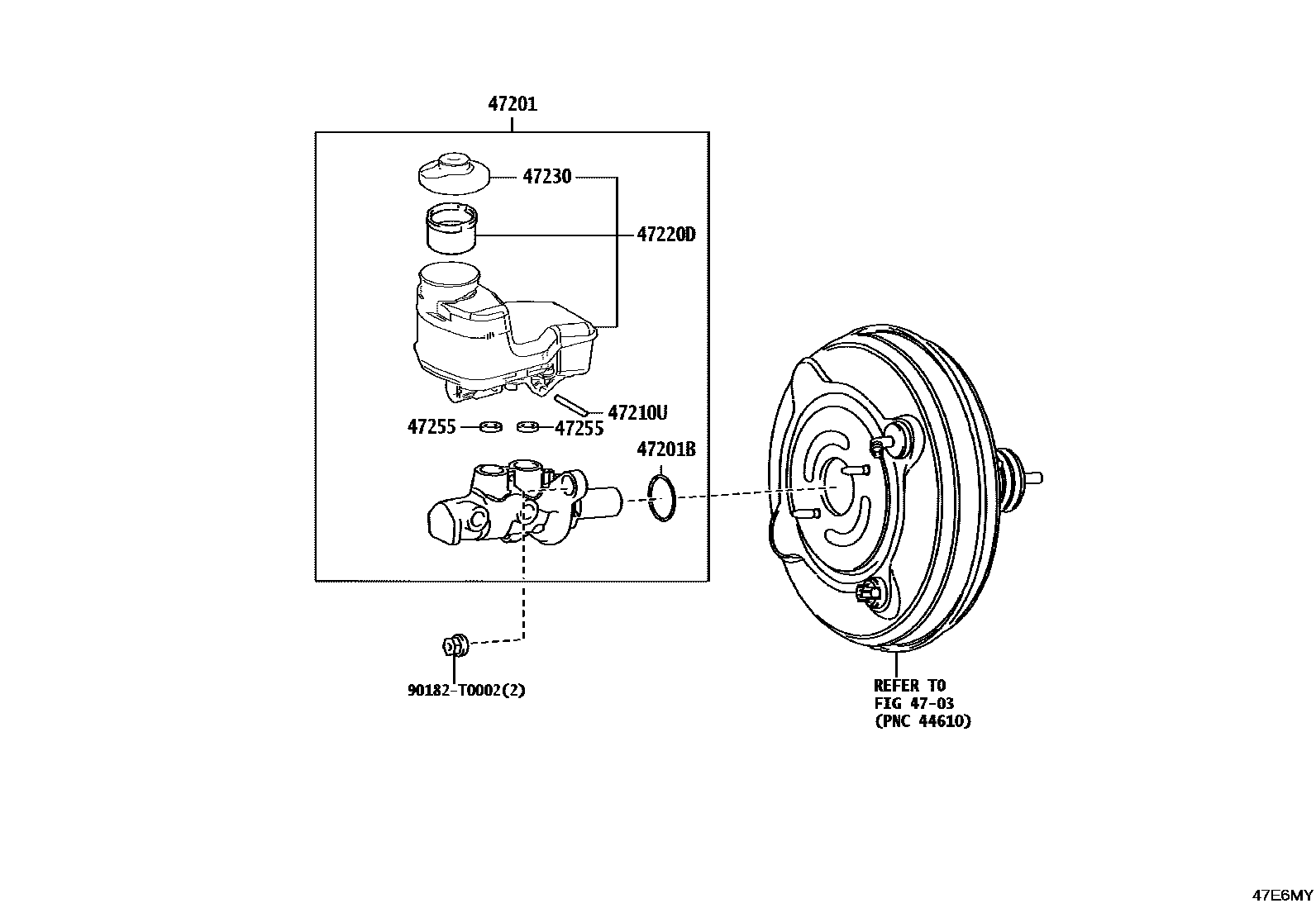

Toyota 280340 — BRAKE MASTER CYLINDER
4703BRAKE BOOSTER & VACUUM TUBE
47201BRING, O(FOR BRAKE MASTER CYLINDER)
47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)
47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER
47255GROMMET, MASTER CYLINDER RESERVOIR
90182T0002
8 parts on this diagram · 3 diagrams in section
BRAKE MASTER CYLINDER for Toyota 280340
This section contains 10 genuine Toyota parts for the BRAKE MASTER CYLINDER system of the Toyota 280340. Key components include: BRAKE BOOSTER & VACUUM TUBE, CYLINDER SUB-ASSY, BRAKE MASTER, RING, O(FOR BRAKE MASTER CYLINDER), BRAKE BOOSTER ASSY, W/MASTER CYLINDER, PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER).
