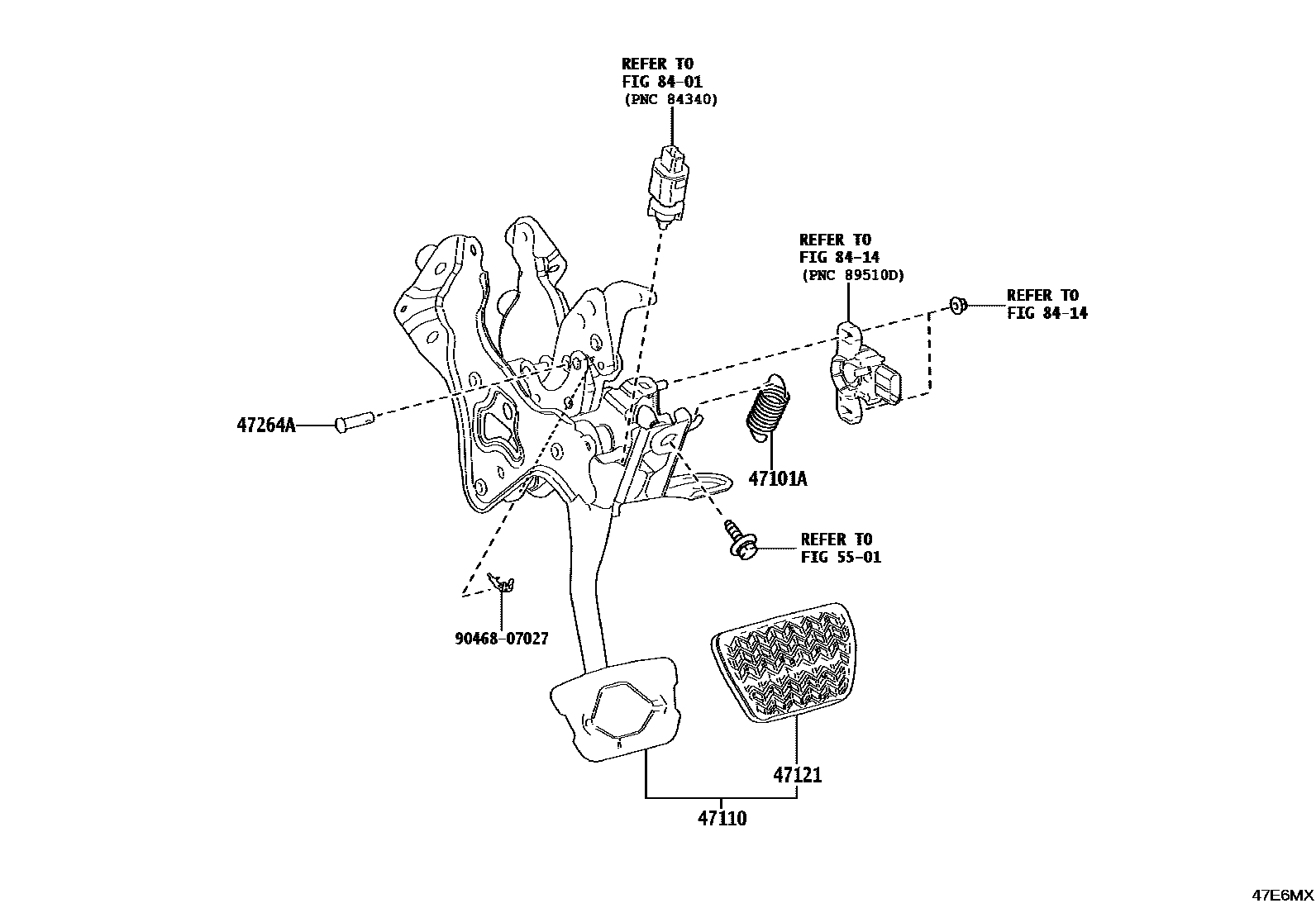

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iAXVA80,MXVA80202410

main90507-21003iAXVH80202410

47110SUPPORT ASSY, BRAKE PEDAL

main47110-06570iAXVA80202410

main47110-06580iAXVH80..RHD202410

main47110-33341iMXVA80202410

main47110-33371iAXVH80..LHD202410

47121PAD, BRAKE PEDAL

main47121-62010iAXVA80,AXVH80,MXVA80202410

47264APIN(FOR PUSH ROD)

main90240-08078iAXVA80,AXVH80,MXVA80202410

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

9046807027

main90468-07027

8 parts on this diagram · 2 diagrams in section
