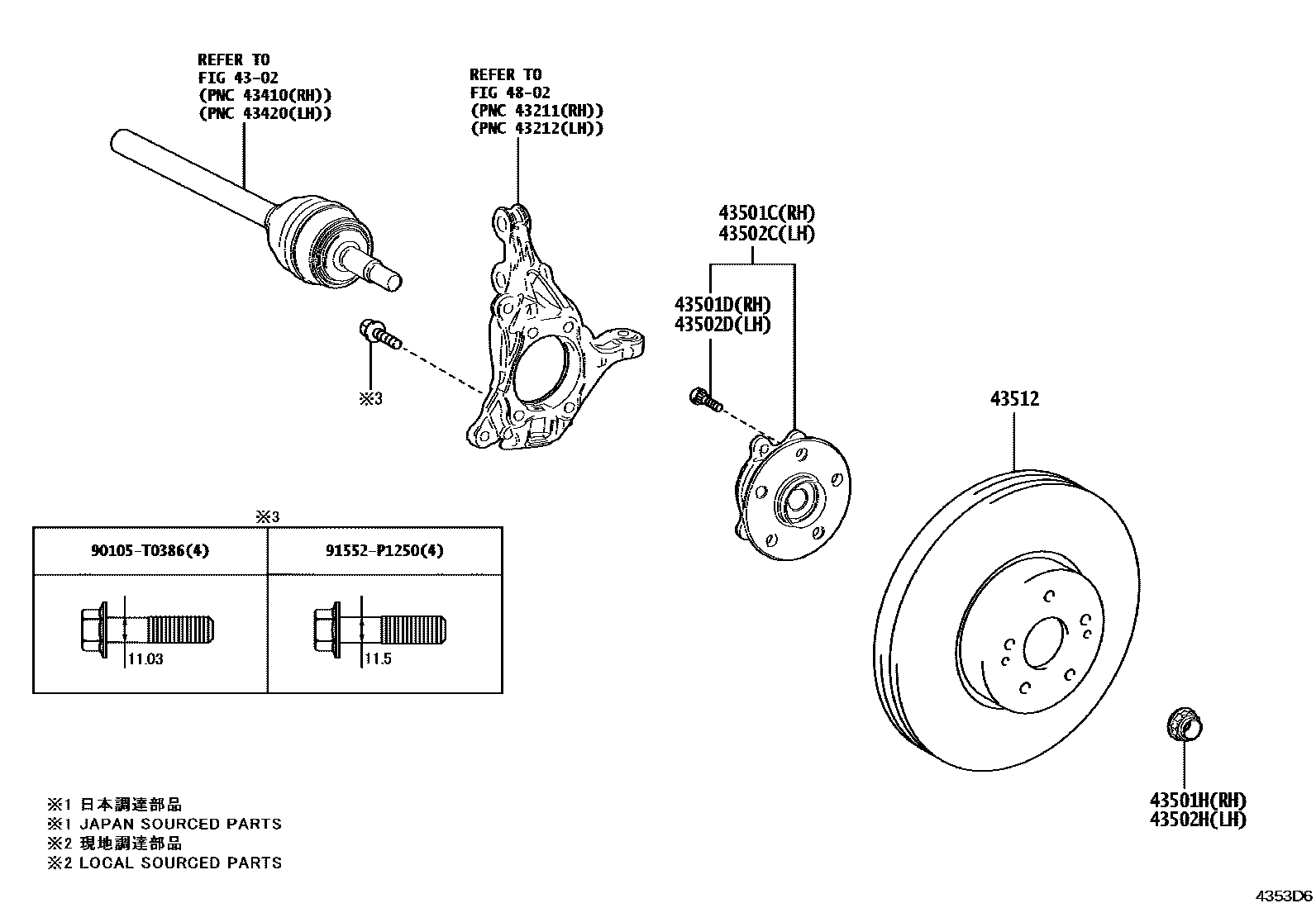

FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-06100iAXVA80,AXVH80,MXVA80..THAI202410

main43550-AQ010iAXVH80..IND202412

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iAXVA80,AXVH80,MXVA80202410

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iAXVA80,AXVH80,MXVA80202410

(J)

main90177-T0017iAXVA80,AXVH80,MXVA80202410

(L)

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-06100iAXVA80,AXVH80,MXVA80..THAI202410

main43550-AQ010iAXVH80..IND202412

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iAXVA80,AXVH80,MXVA80202410

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iAXVA80,AXVH80,MXVA80202410

(J)

main90177-T0017iAXVA80,AXVH80,MXVA80202410

(L)

43512DISC, FRONT

main43512-06180iAXVA80,AXVH80,MXVA80202410

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

90105T0386

main90105-T0386

91552P1250

main91552-P1250

11 parts on this diagram · 1 diagram in section
