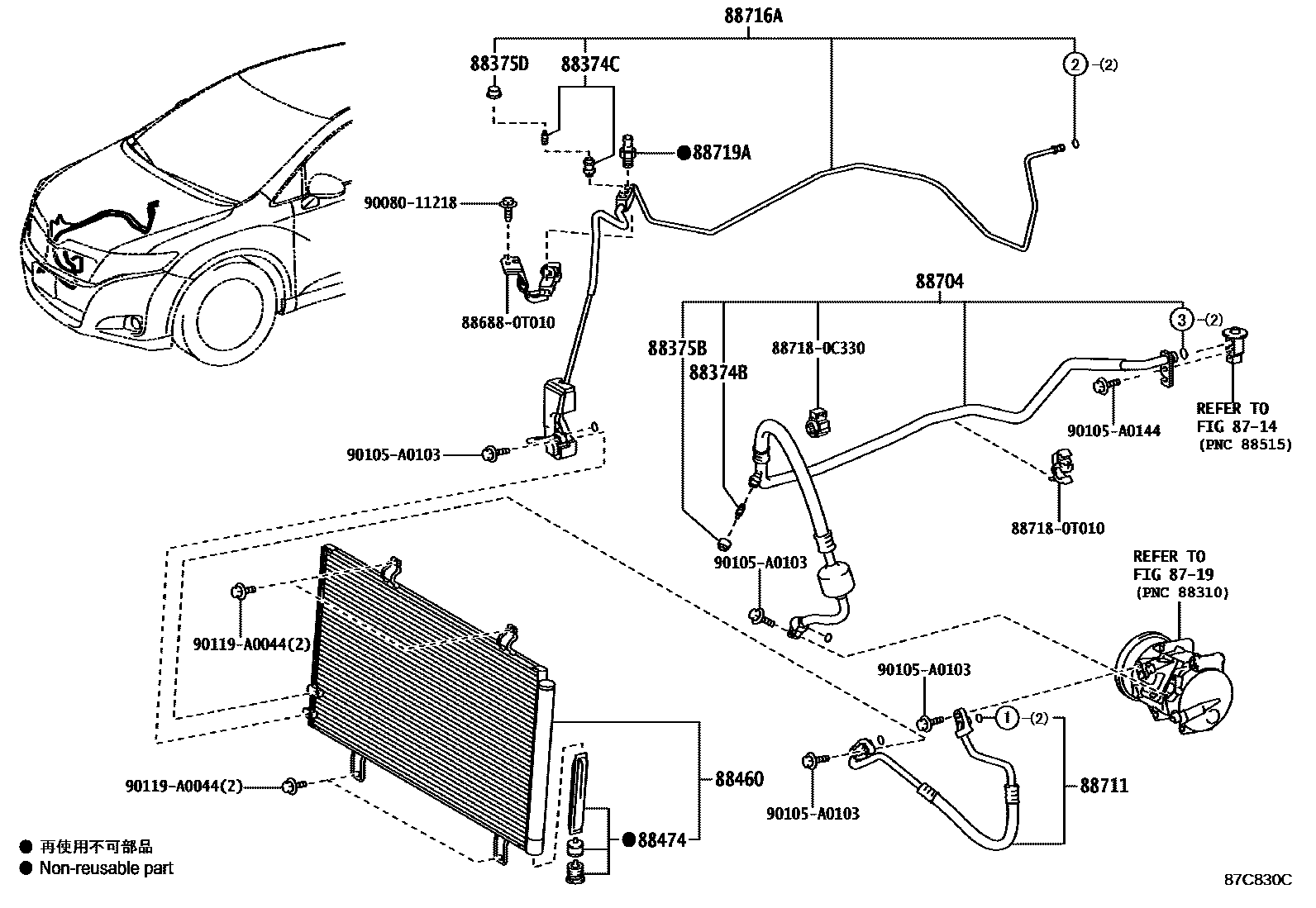

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iAGV1#201303-201506

88374CVALVE, SERVICE, NO.2

main88374-30010iAGV1#201303-201506

88375BCAP, SERVICE VALVE, NO.1

main88375-02070iAGV1#201303-201506

(L)

88375DCAP, SERVICE VALVE, NO.2

main88375-02060iAGV1#201303-201506

(L)

88460CONDENSER ASSY, COOLER

main88460-06210iAGV1#201303-201506

88474DRYER, COOLER

main88474-17010iAGV1#201303-201506

88704HOSE SUB-ASSY, SUCTION

main88704-0T020iAGV1#201303-201506

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-0T020iAGV1#201303-201506

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-0T010iAGV1#201303-201506

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iAGV1#201303-201506

886880T010BRACKET, COOLER DIAPHRAGM

main88688-0T010

887180C330PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0C330

887180T010PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0T010

9008011218

main90080-11218

90105A0103

main90105-A0103

90105A0144

main90105-A0144

90119A0044

main90119-A0044

19 parts on this diagram · 2 diagrams in section
