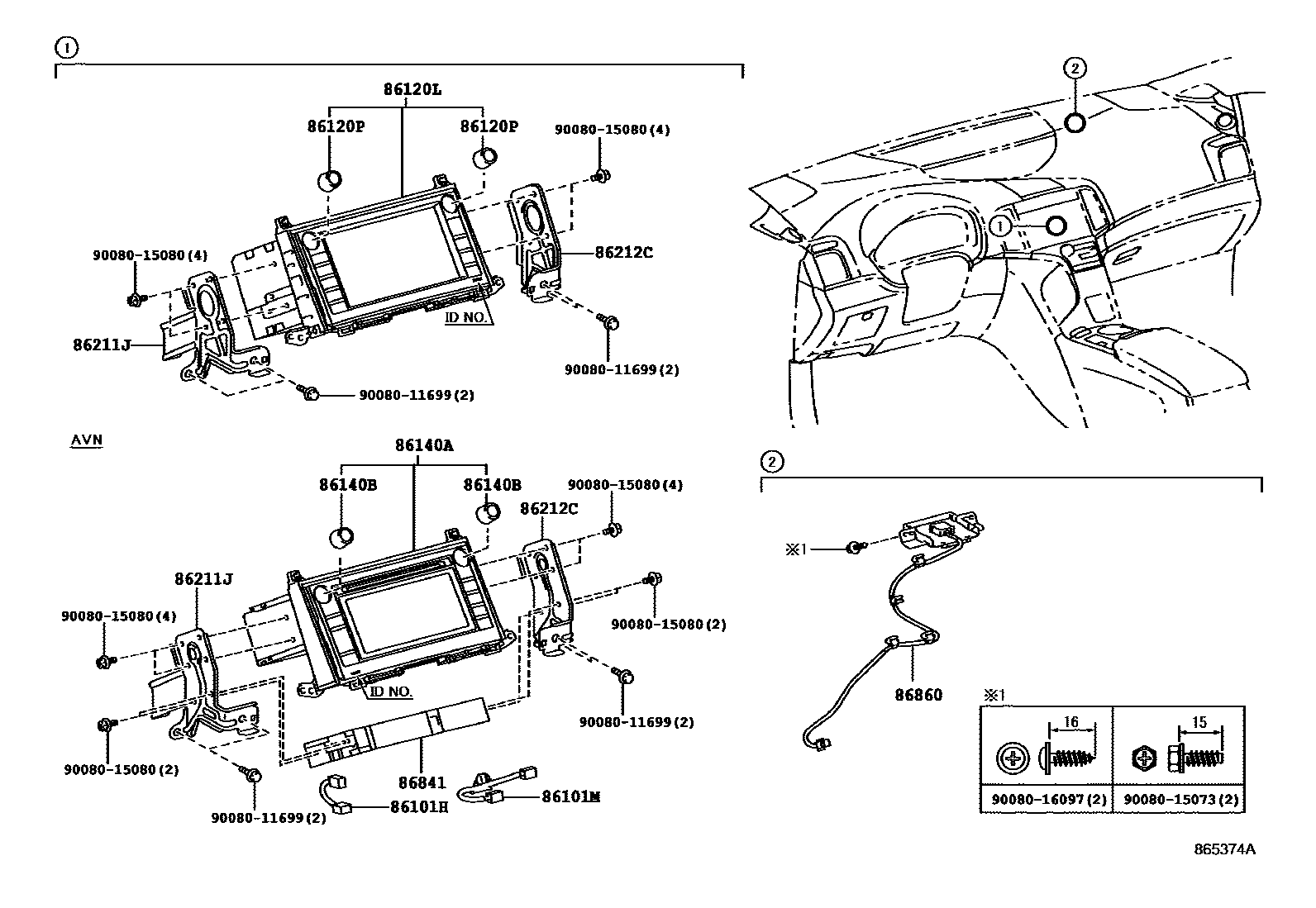

NAVIGATION & FRONT MONITOR DISPLAY
86101HCORD SUB-ASSY, ANTENNA
RUSSIA SPEC&EMV & NAVIGATION SYSTEM-EXTENSION BOX
86101MCORD SUB-ASSY, ANTENNA
RUSSIA SPEC&EMV & NAVIGATION SYSTEM-EXTENSION BOX
86120LRECEIVER ASSY, NAVIGATION
DENSO,AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICE NAVIGATION)
DENSO,AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICE NAVIGATION)
DENSO,AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICE NAVIGATION)
DENSO,AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICE NAVIGATION)
DENSO,AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICE NAVIGATION)
86120PKNOB, NAVIGATION RECEIVER SWITCH
AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICE NAVIGATION)
86140ARECEIVER ASSY, RADIO & DISPLAY
PANASONIC,ID=57059; PANASONIC,ID=57059,AUDIO-AVN JBL 13SPEAKER
PANASONIC,ID=59037,RUSSIA SPEC
PANASONIC,ID=59038,RUSSIA SPEC&AUDIO-*DA & 13SPEAKER
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
AUDIO-AVN JBL 13SPEAKER
86211JBRACKET, RADIO RECEIVER, NO.1
AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICE NAVIGATION)
RUSSIA SPEC
86212CBRACKET, RADIO RECEIVER, NO.2
AUDIO-AVN JBL 13SPEAKER
86841COMPUTER, NAVIGATION
RUSSIA SPEC&EMV & NAVIGATION SYSTEM-EXTENSION BOX
RUSSIA SPEC&EMV & NAVIGATION SYSTEM-EXTENSION BOX
RUSSIA SPEC&EMV & NAVIGATION SYSTEM-EXTENSION BOX
86860ANTENNA ASSY, NAVIGATION
EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICE NAVIGATION); RUSSIA SPEC&EMV & NAVIGATION SYSTEM-EXTENSION BOX
9008011699
main90080-11699
9008015073
main90080-15073
9008015080
main90080-15080
9008016097
main90080-16097
14 parts on this diagram · 1 diagram in section
