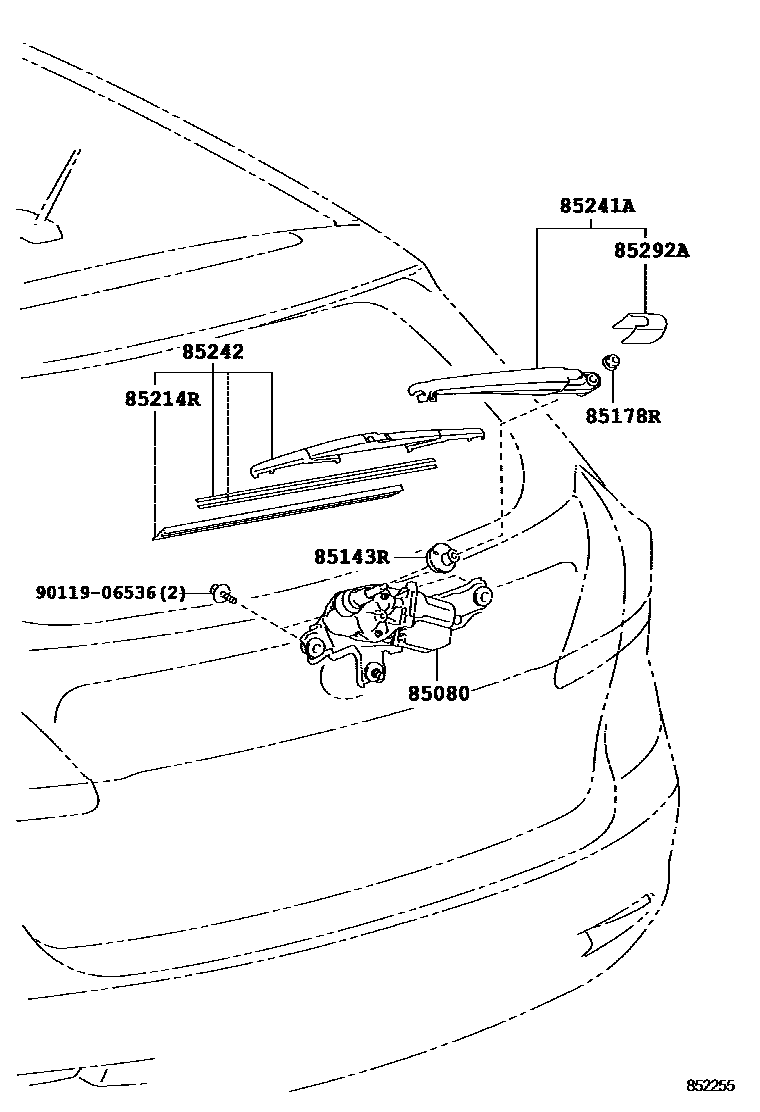

REAR WIPER

85080MOTOR & BRACKET ASSY, REAR WIPER

main85080-0T010iAGV1#201303-201506

85143RGROMMET, REAR WIPER MOTOR

main85143-02040iAGV1#201303-201506

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iAGV1#201303-201506

85214RRUBBER, REAR WIPER

main85214-05110iAGV1#201303-201506

85241AARM, REAR WIPER

main85241-0T010iAGV1#201303-201506

85242BLADE, RR WIPER

main85242-0T011iAGV1#201303-201506

85292ACAP, REAR WIPER ARM HEAD

main85292-02060iAGV1#201303-201506

9011906536

main90119-06536

8 parts on this diagram · 1 diagram in section
