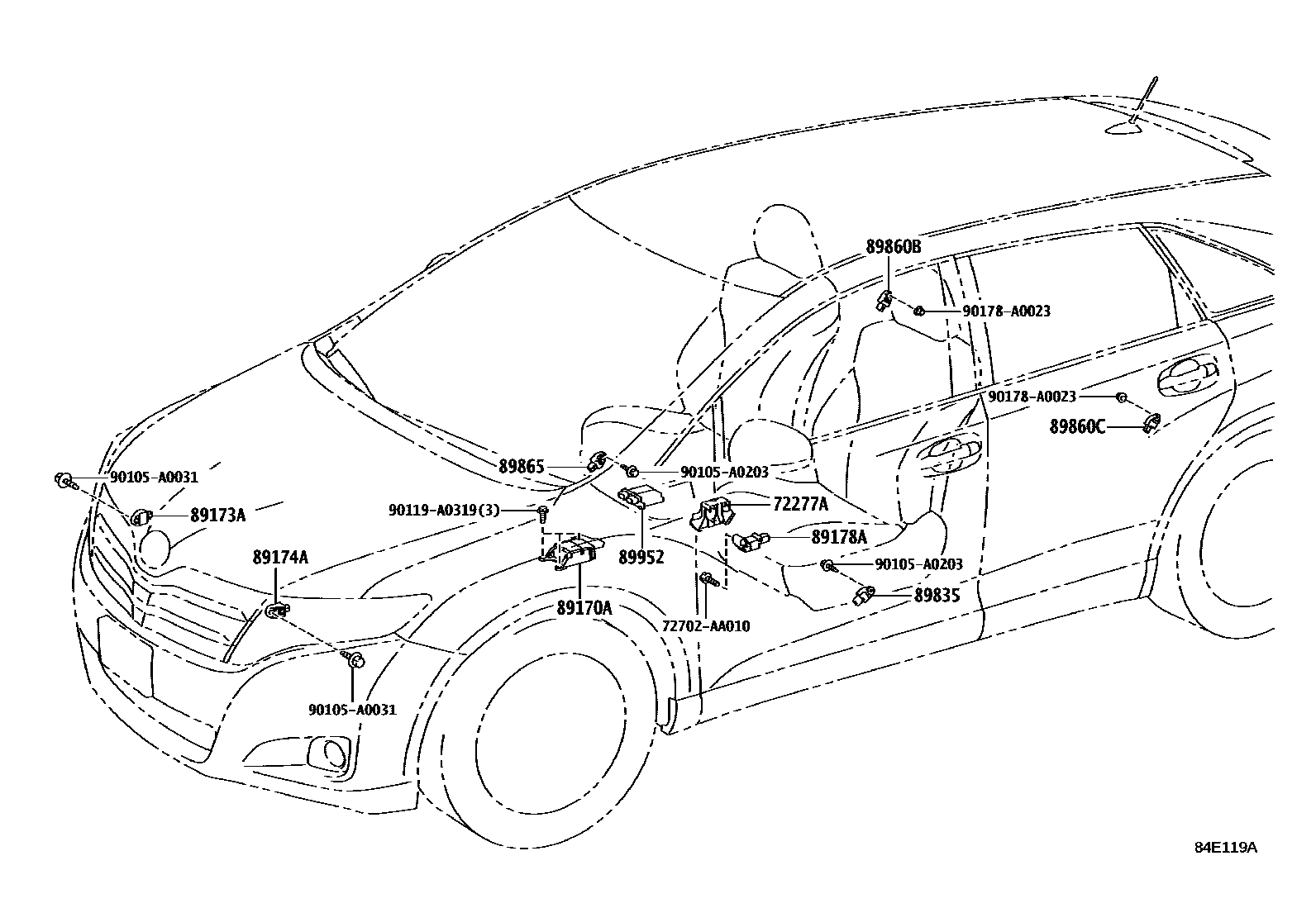

AIR BAG
72277APROTECTOR, SEAT SLIDE POSITION SENSOR
89170ACOMPUTER ASSY, AIRBAG
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89178ASENSOR, SEAT POSITION AIRBAG
89835SENSOR, DOOR SIDE AIRBAG, LH
89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2
89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2
89865SENSOR, DOOR SIDE AIRBAG, RH
89952COMPUTER, OCCUPANT DETECTION
72702AA010BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-AA010
90105A0031
main90105-A0031
90105A0203
main90105-A0203
90119A0319
main90119-A0319
90178A0023
main90178-A0023
15 parts on this diagram · 1 diagram in section
