WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1INSTRUMENT PANEL 0004 1DOOR 0005 1FLOOR & ROOF 0006 1SEAT 0007 1CABLE BOND 0008 1CLAMP & BRACKET 0009 1CONNECTOR 1/2 0010 1CONNECTOR 2/2

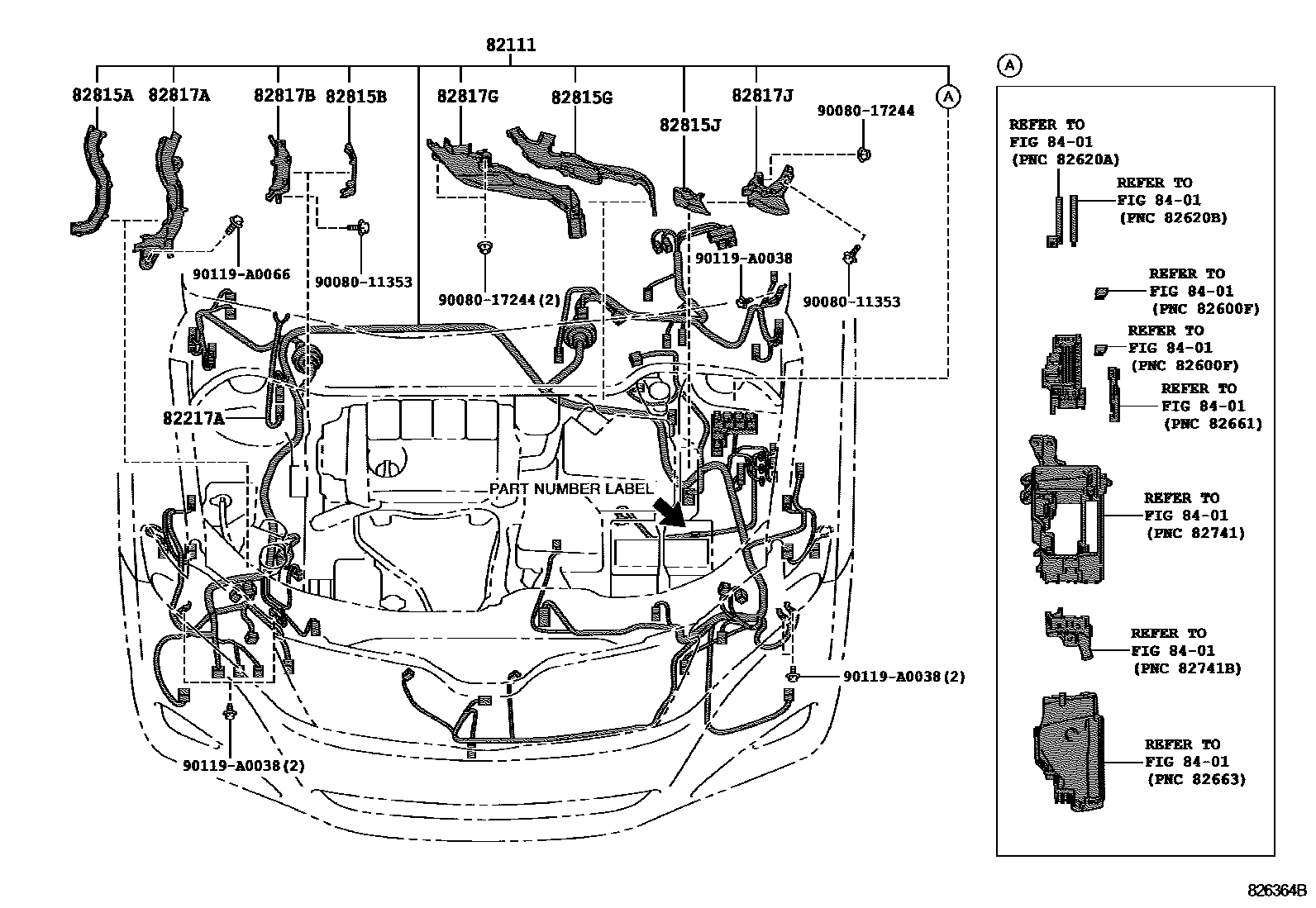

82111WIRE, ENGINE ROOM MAIN

main82111-0T321supersedes 82111-0T311iAGV1#201303-201408

WITH(SMART KEY)

main82111-0T322supersedes 82111-0T312iAGV1#201408-201506

WITH(SMART KEY)

82217AWIRE, FRONT WINDOW DEFOGGER

main82217-0T010iAGV1#201303-201506

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-0T010iAGV1#201303-201506

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-0T020iAGV1#201303-201506

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-0T030iAGV1#201303-201506

82815JCOVER, WIRING HARNESS PROTECTOR, NO.7

main82815-0T070iAGV1#201303-201506

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-0T010iAGV1#201303-201506

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-0T020iAGV1#201303-201506

82817GPROTECTOR, WIRING HARNESS, NO.8

main82817-0T030iAGV1#201303-201506

82817JPROTECTOR, WIRING HARNESS, NO.9

main82817-0T190iAGV1#201303-201506

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008011353

main90080-11353

9008017244

main90080-17244

90119A0038

main90119-A0038

90119A0066

main90119-A0066

15 parts on this diagram · 10 diagrams in section
