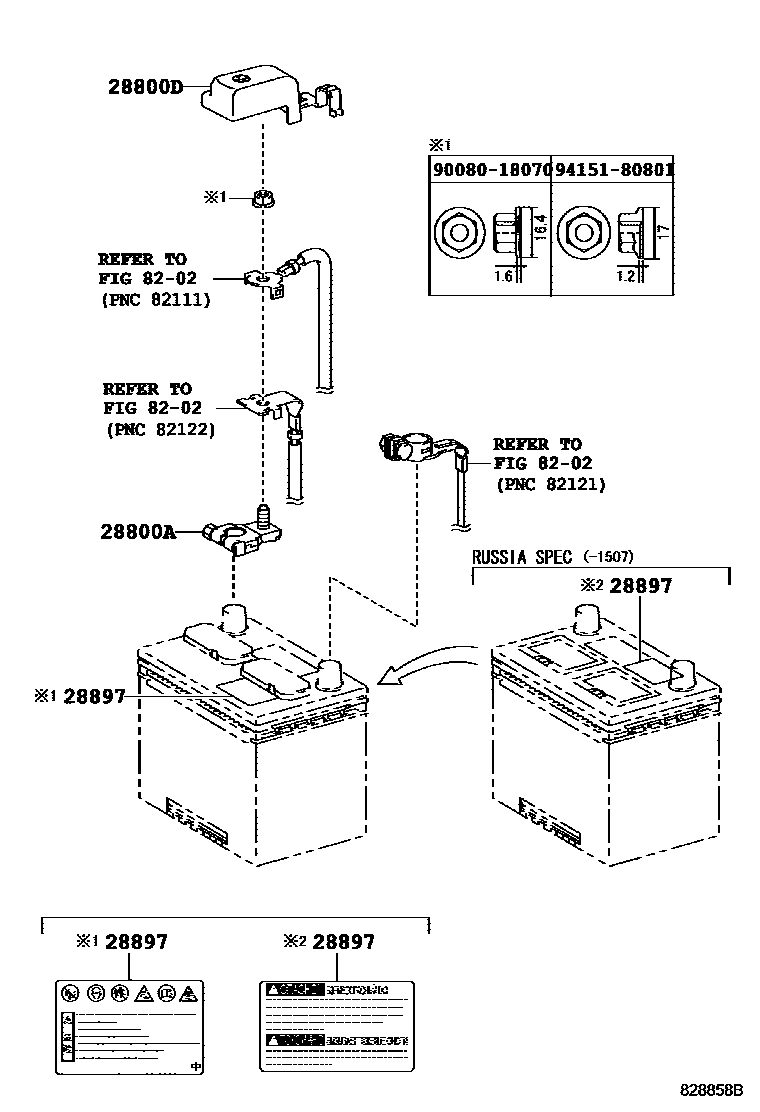

BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i1ARFE..AGV1#201303-201506

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-06040i1ARFE..AGV1#201303-201506

28897PLATE, BATTERY CAUTION

main28897-0P020supersedes 28897-0V020i1ARFE..AGV1#201303-201507

RUSSIA SPEC

8202WIRING & CLAMP

→ Go to FIG 82-02

9008018070

main90080-18070

9415180801

main94151-80801

6 parts on this diagram · 1 diagram in section
