INTERIOR LAMP

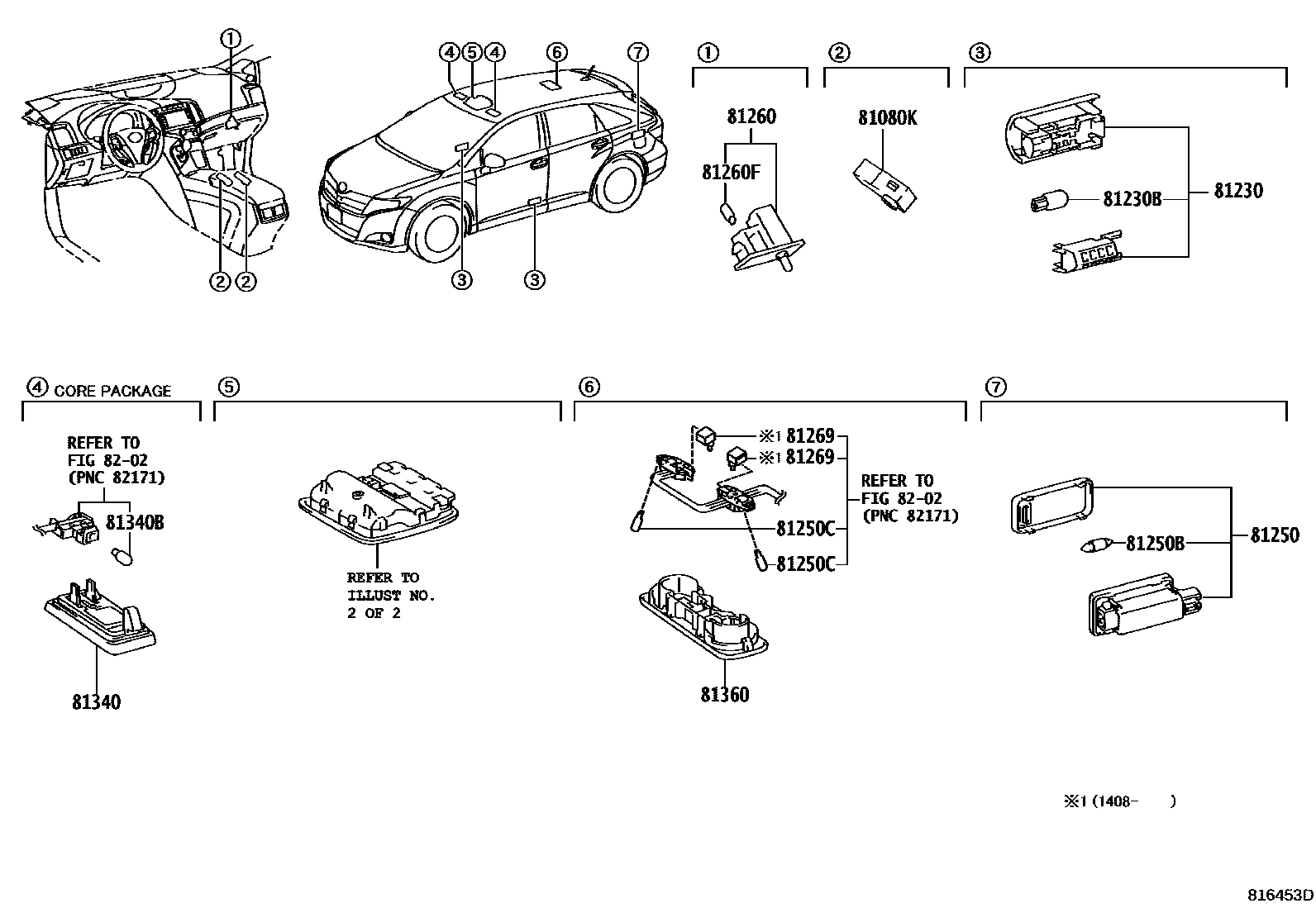

Parts diagram

81080KLAMP ASSY, CONSOLE BOX ILLUMINATION

main81080-22040×2i201303-201506

81230LAMP ASSY, COURTESY

main81230-06040×2i201308-201506

main81230-47010×2i201303-201307

81230BBULB(FOR COURTESY LAMP)

main90981-12010×2i201303-201506

12V 5W

81250LAMP ASSY, ROOM, NO.2

main81250-48010i201303-201506

81250BBULB, ROOM LAMP, NO.2

main99132-13050i201303-201506

12V 5W

81250CBULB, SPOT LAMP

main90981-11062×2i201303-201506

12V 8W

81260LAMP ASSY, GLOVE BOX

main81260-33030i201303-201506

81260FBULB(FOR GLOVE BOX LAMP)

main90981-11018i201303-201506

12V 1.2W W/O SOCKET

81269SWITCH, MAP LAMP

main84532-58010×2i201408-201506

81340LAMP ASSY, VANITY

main81340-30100-A1×2i201303-201408

IVORY,TRIM0#

main81340-30100-B0×2i201303-201408

LT.GRAY,TRIM1#,2#

main81340-30110×2i201408-201506

81340BBULB (FOR VANITY LAMP)

main90981-11062×2i201303-201506

12V 8W

81360LAMP ASSY, STEP OR SPOT

main81360-06060-A0i201408-201506

IVORY,TRIM0#

main81360-06060-B1i201408-201506

LT.GRAY,TRIM1#,2#

main81360-30050-A2i201303-201407

IVORY,TRIM0#

main81360-30050-B1i201303-201407

LT.GRAY,TRIM1#,2#

8202WIRING & CLAMP

→ Go to FIG 82-02

13 parts on this diagram · 2 diagrams in section
