REAR SEAT & SEAT TRACK

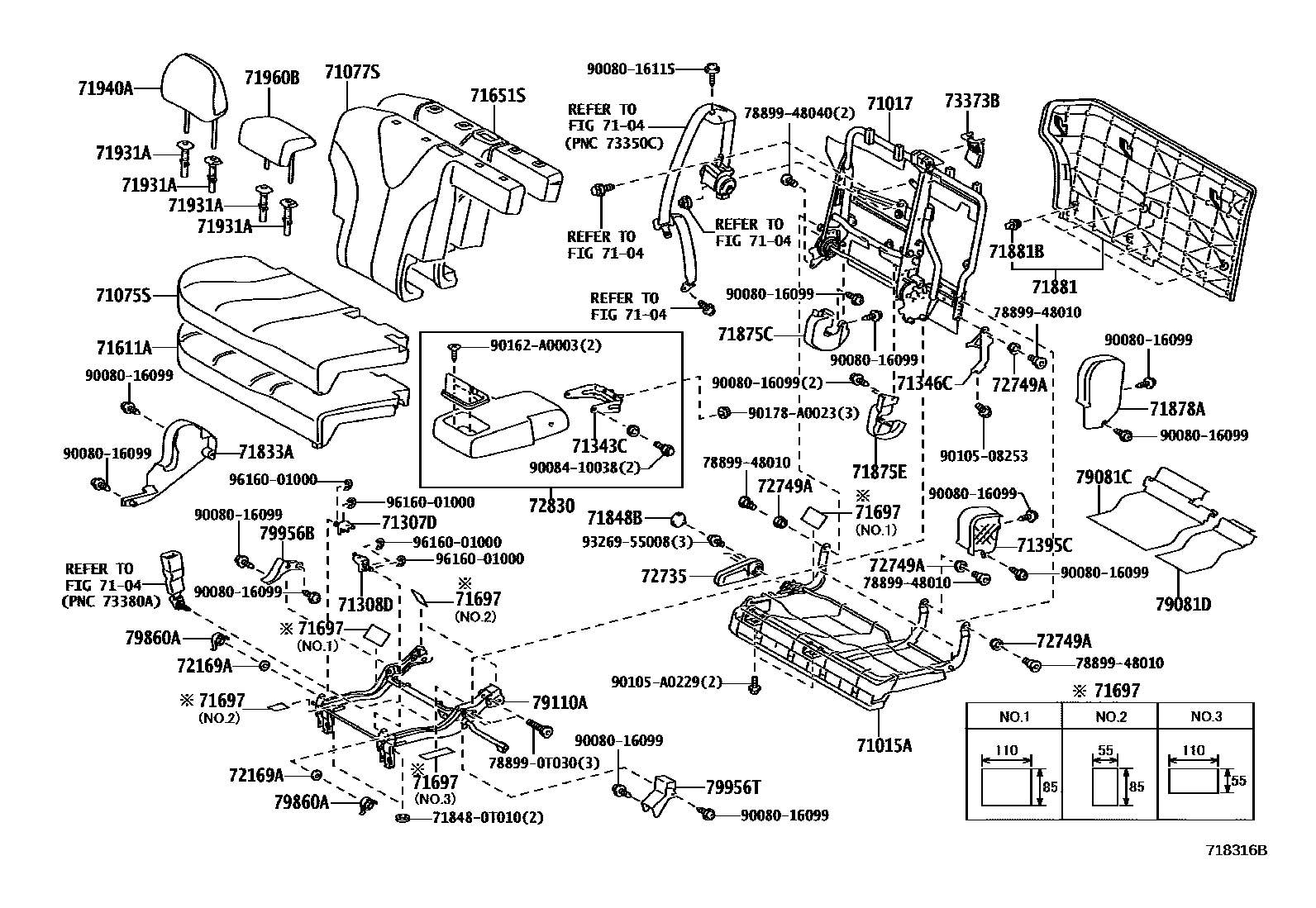

Parts diagram
71015AFRAME SUB-ASSY, REAR SEAT CUSHION, RH
main71015-0T011i201303-201506
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-0T010i201303-201506
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
main71075-0T022-A1i201303-201408
IVORY,TRIM0#
main71075-0T022-B1i201303-201408
LT.GRAY,TRIM1#
main71075-0T022-C0i201303-201408
BLACK,TRIM2#
main71075-0T023-A2i201408-201506
IVORY,TRIM0#
main71075-0T023-B2i201408-201506
LT. GRAY,TRIM1#
main71075-0T023-C0i201408-201506
BLACK,TRIM2#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-0T022-A1i201303-201408
IVORY,TRIM0#
main71077-0T022-B1i201303-201408
LT.GRAY,TRIM1#
main71077-0T022-C0i201303-201408
BLACK,TRIM2#
main71077-0T023-A2i201408-201506
IVORY,TRIM0#
main71077-0T023-B2i201408-201506
LT. GRAY,TRIM1#
main71077-0T023-C0i201408-201506
BLACK,TRIM2#
71307DBRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, RH
main71307-0T020×2i201303-201506
71308DBRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, LH
main71307-0T010×2i201303-201506
71343CHINGE, REAR SEATBACK, CENTER
main71346-0T020i201303-201506
71346CHINGE, REAR SEATBACK, LH
main71343-0T010i201303-201506
71395CCOVER, CENTER SEAT HINGE, RH
main71395-0T010-A0i201303-201506
IVORY,TRIM0#
main71395-0T010-B0i201303-201506
LT.GRAY,TRIM1#
main71395-0T010-C0i201303-201506
BLACK,TRIM2#
71611APAD, REAR SEAT CUSHION, RH
main71611-0T010i201303-201506
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-0T010i201303-201506
71697PROTECTOR, REAR SEATBACK EDGE
main71697-0T010×6i201303-201506
NO.1
main71697-0T020×2i201303-201506
NO.2
main71697-0T030i201303-201506
NO.3
71833ACOVER, REAR SEAT RECLINING, NO.1 RH
main71833-0T010-A0i201303-201506
IVORY,TRIM0#
main71833-0T010-B0i201303-201506
LT.GRAY,TRIM1#
main71833-0T010-C0i201303-201506
BLACK,TRIM2#
71848BCAP, SEAT ADJUSTER COVER, RH
main71848-0C020-A0i201303-201506
IVORY,TRIM0#
main71848-0C020-B1i201303-201506
LT.GRAY,TRIM1#
main71848-0C020-C0i201303-201506
BLACK,TRIM2#
71875CCOVER, RECLINING ADJUSTER INSIDE, RH
main71875-0T010-A0i201303-201506
IVORY,TRIM0#
main71875-0T010-B0i201303-201506
LT.GRAY,TRIM1#
main71875-0T010-C0i201303-201506
BLACK,TRIM2#
71875ECOVER, RECLINING ADJUSTER INSIDE, RH
main71875-0T020-A0i201303-201506
IVORY,TRIM0#
main71875-0T020-B0i201303-201506
LT.GRAY,TRIM1#
main71875-0T020-C0i201303-201506
BLACK,TRIM2#
71878ACOVER, REAR SEAT RECLINING, INNER RH
main71878-0T010-A0i201303-201506
IVORY,TRIM0#
main71878-0T010-B0i201303-201506
LT.GRAY,TRIM1#
main71878-0T010-C0i201303-201506
BLACK,TRIM2#
71881BOARD, REAR SEATBACK, RH
main71881-0T010-A1i201303-201506
IVORY,TRIM0#
main71881-0T010-B1i201303-201506
LT. GRAY,TRIM1#
main71881-0T010-C0i201303-201506
BLACK,TRIM2#
71881BCLIP, REAR SEATBACK BOARD
main90467-10188×7i201303-201506
71931ASUPPORT, REAR SEAT HEADREST
main71930-44020-A0×3i201303-201506
W(LOCK),IVORY,TRIM0#
main71930-44020-B8×3i201303-201506
W(LOCK),LT.GRAY,TRIM1#
main71930-44020-C0×3i201303-201506
W(LOCK),BLACK,TRIM2#
main71931-47010-A0×3i201303-201506
W/O(LOCK),IVORY,TRIM0#
main71931-47010-C0×3i201303-201506
W/O(LOCK),BLACK,TRIM2#
main71931-47010-P3×3i201303-201506
W/O(LOCK),LT.GRAY,TRIM1#
71940AHEADREST ASSY, REAR SEAT
main71940-0T030-A1×2i201303-201408
IVORY,TRIM0#
main71940-0T030-B1×2i201303-201408
LT.GRAY,TRIM1#
main71940-0T030-C1×2i201303-201408
BLACK,TRIM2#
main71940-0T031-A2×2i201408-201506
IVORY,TRIM0#
main71940-0T031-B2×2i201408-201506
LT. GRAY,TRIM1#
main71940-0T031-C1×2i201408-201506
BLACK,TRIM2#
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-0T031-A1i201303-201408
IVORY,TRIM0#
main71960-0T031-A2i201408-201506
IVORY,TRIM0#
main71960-0T031-B1i201303-201408
LIGHT GRAY,TRIM1#
main71960-0T031-B2i201408-201506
LT. GRAY,TRIM1#
main71960-0T031-C1i201303-201506
BLACK,TRIM2#
72169ASPACER, RR SEAT TRACK
main72169-0T020×4i201303-201506
72735LEVER, REAR SEAT RECLINING RELEASE
main72735-0C010-A0i201303-201506
IVORY,TRIM0#
main72735-0C010-B1i201303-201506
LT.GRAY,TRIM1#
main72735-0C010-C0i201303-201506
BLACK,TRIM2#
72749ASPACER, REAR SEAT RECLINING
main72749-48010×6i201303-201506
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-0T040-A0i201303-201506
IVORY,TRIM0#
main72830-0T040-B0i201303-201506
LT GRAY,TRIM1#
main72830-0T040-C0i201303-201506
BLACK,TRIM2#
73373BCOVER, REAR NO.1 SEAT SHOULDER BELT
main73373-0T010i201303-201506
79081CCOVER, REAR SEAT, NO.1
main72907-0T010i201303-201506
79081DCOVER, REAR SEAT, NO.2
main72907-0T020i201303-201506
79110ALEG ASSY, NO.1 SEAT, RH
main79110-0T010i201303-201504
main79110-0T011i201504-201506
79860ASPRING ASSY, FOLD SEAT CUSHION, RH
main79891-0T010×2i201303-201506
79956BCOVER, REAR SEAT LEG SIDE, RH
main79956-0T010-A0i201303-201506
IVORY,TRIM0#
main79956-0T010-B0i201303-201506
LT.GRAY,TRIM1#
main79956-0T010-C0i201303-201506
BLACK,TRIM2#
79956TCOVER, REAR SEAT LEG SIDE
main79956-0T040-A0i201303-201506
IVORY,TRIM0#
main79956-0T040-B0i201303-201506
LT.GRAY,TRIM1#
main79956-0T040-C0i201303-201506
BLACK,TRIM2#
718480T010ORNAMENT, FRONT SEAT BRACKET, LH
main71848-0T010
788990T030BOLT, FRONT SEAT
main78899-0T030
7889948010BOLT, FRONT SEAT
main78899-48010
7889948040BOLT, FRONT SEAT
main78899-48040
9008016099
main90080-16099
9008016115
main90080-16115
9008410038
main90084-10038
9010508253
main90105-08253
90105A0229
main90105-A0229
90162A0003
main90162-A0003
90178A0023
main90178-A0023
9326955008
main93269-55008
9616001000
main96160-01000

47 parts on this diagram · 3 diagrams in section
