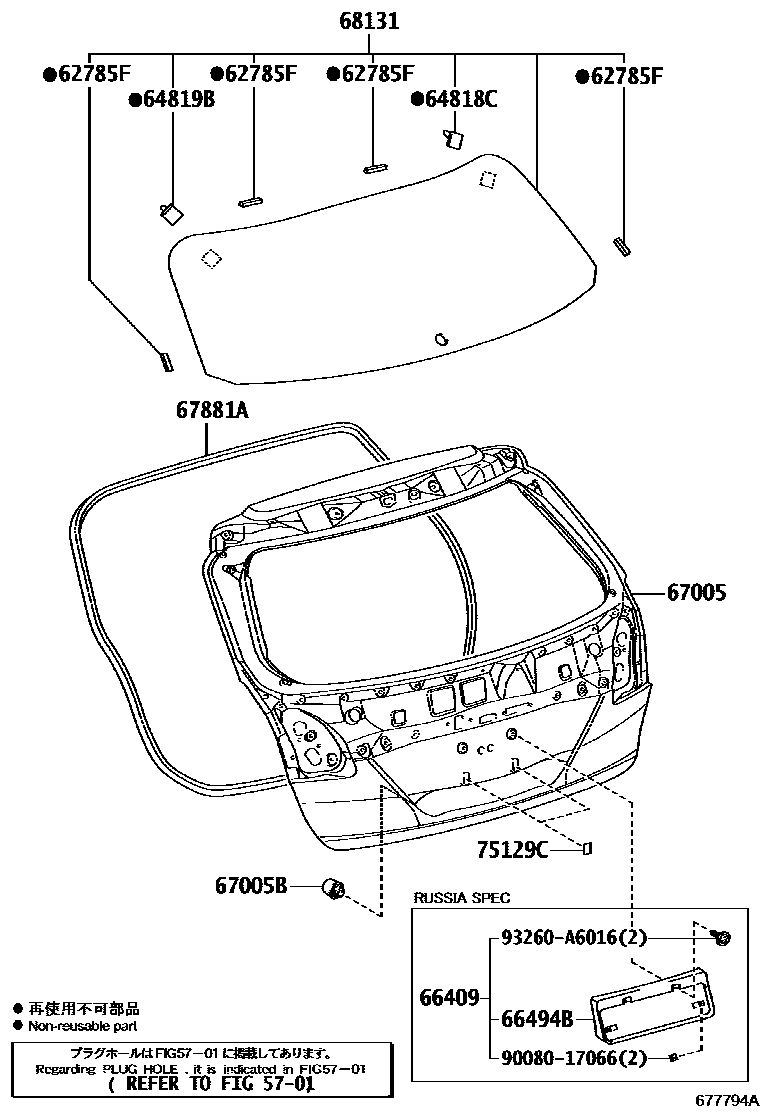

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

62785FSPACER, BACK DOOR GLASS

main62785-16030iAGV1#201303-201506

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-0T010iAGV1#201303-201506

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-0T010iAGV1#201303-201506

66409BRACKET SUB-ASSY, LICENSE HANGER

main66409-0T020

66494BPLATE, LICENSE BRACKET

67005PANEL SUB-ASSY, BACK DOOR

main67005-0T090iAGV1#201303-201506

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-A0001iAGV1#201303-201506

67881AWEATHERSTRIP, BACK DOOR

main67881-0T010iAGV1#201303-201506

68131GLASS, BACK DOOR

main68105-0T020iAGV1#201303-201506

*EHT,T=3.5,PRIVACY

75129CCUSHION, REAR LICENCE PLATE

main75129-AC010iAGV1#201303-201506

9008017066

main90080-17066

93260A6016

main93260-A6016

13 parts on this diagram · 2 diagrams in section
