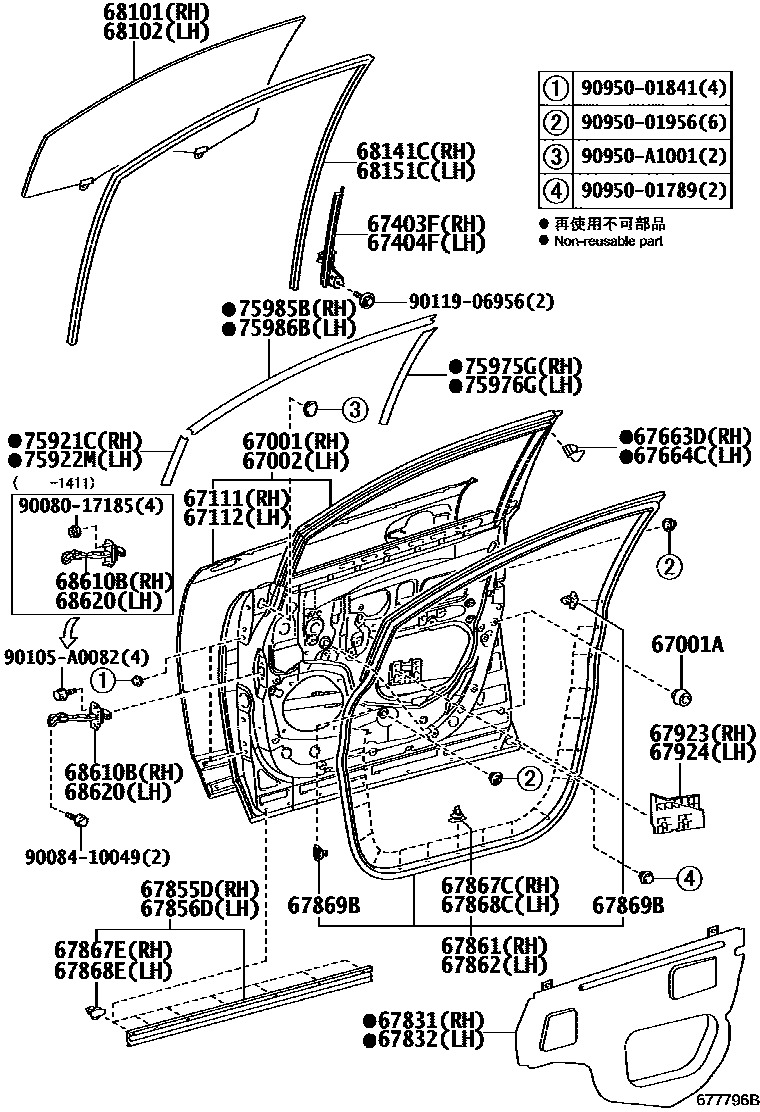

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67663DGARNISH, DOOR FRAME, RH
67664CGARNISH, DOOR FRAME, LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67855DPROTECTOR, FRONT DOOR PANEL, RH
67856DPROTECTOR, FRONT DOOR PANEL, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67867ERETAINER, FRONT DOOR LOWER PROTECTOR, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67868ERETAINER, FRONT DOOR LOWER PROTECTOR, LH
67869BCLIP, FRONT DOOR WEATHERSTRIP
67923CUSHION, FRONT DOOR STIFFENER, NO.1
67924CUSHION, FRONT DOOR STIFFENER, NO.2
68101GLASS SUB-ASSY, FRONT DOOR, RH
*HSEAL,T=4.96,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*HSEAL,T=4.96,GREEN
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68610BCHECK ASSY, FRONT DOOR, RH
75921CTAPE, BLACK OUT, NO.1 RH
75922MTAPE, BLACK OUT, NO.1 LH
75975GSTRIPE, FRONT DOOR, NO.2 RH
75976GSTRIPE, FRONT DOOR, NO.2 LH
75985BSTRIPE, FRONT DOOR, NO.3 RH
75986BSTRIPE, FRONT DOOR, NO.3 LH
9008017185
main90080-17185
9008410049
main90084-10049
90105A0082
main90105-A0082
9011906956
main90119-06956
9095001789
main90950-01789
9095001841
main90950-01841
9095001956
main90950-01956
90950A1001
main90950-A1001
42 parts on this diagram · 2 diagrams in section
