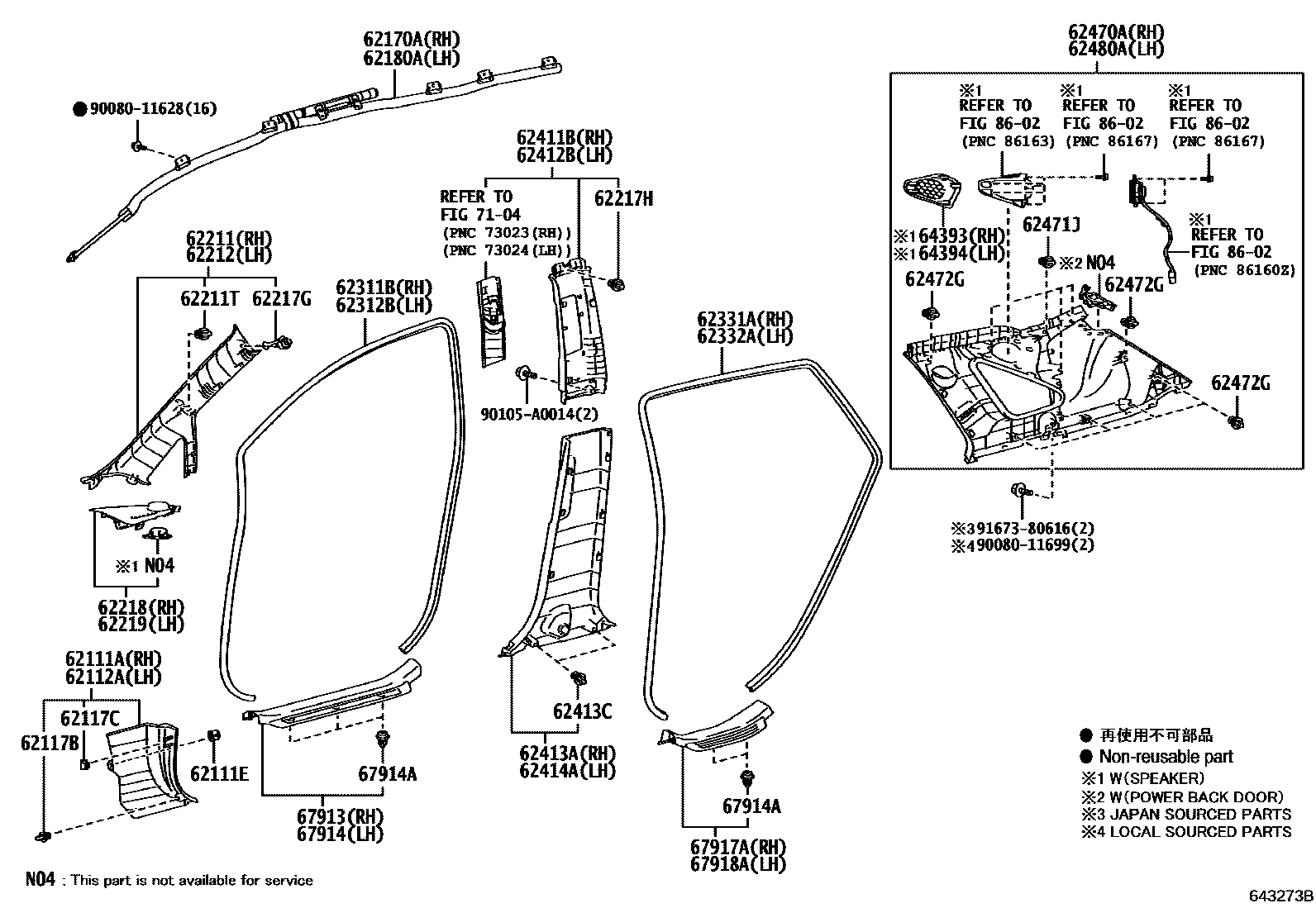

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111ATRIM SUB-ASSY, COWL SIDE, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
62111ERETAINER, COWL SIDE TRIM
62112ATRIM SUB-ASSY, COWL SIDE, LH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211GARNISH, FRONT PILLAR, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#,2#
62211TCLIP(FOR FRONT PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
IVORY,TRIM0#
LT.GRAY,TRIM1#,2#
62217GCLIP, FRONT PILLAR GARNISH
62217HCLIP, CENTER PILLER GARNISH
62218PIECE, FRONT PILLAR GARNISH CORNER, RH
AUDIO-*DA & 13SPEAKER,BLACK,TRIM0#,1#,2#; AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICE NAVIGATION),BLACK,TRIM0#,1#,2#
62219PIECE, FRONT PILLAR GARNISH CORNER, LH
AUDIO-*DA & 13SPEAKER,BLACK,TRIM0#,1#,2#; AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICE NAVIGATION),BLACK,TRIM0#,1#,2#
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62411BGARNISH, CENTER PILLAR, UPPER RH
IVORY,TRIM0#
LT.GRAY,TRIM1#,2#
IVORY,TRIM0#
LT.GRAY,TRIM1#,2#
62412BGARNISH, CENTER PILLAR, UPPER LH
IVORY,TRIM0#
LT.GRAY,TRIM1#,2#
IVORY,TRIM0#
LT.GRAY,TRIM1#,2#
62413AGARNISH, CENTER PILLAR, LOWER RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
IVORY,TRIM0#; RUSSIA SPEC&WITH(SMART KEY),IVORY,TRIM0#
LT.GRAY,TRIM1#; RUSSIA SPEC&WITH(SMART KEY),LT.GRAY,TRIM1#
BLACK,TRIM2#; RUSSIA SPEC&WITH(SMART KEY),BLACK,TRIM2#
AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICE NAVIGATION),IVORY,TRIM0#; RUSSIA SPEC&AUDIO-*DA & 13SPEAKER,IVORY,TRIM0#; RUSSIA SPEC&WITH(SMART KEY)&AUDIO-*DA & 13SPEAKER,IVORY,TRIM0#; WITH(SMART KEY)&AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICENAVIGATION),IVORY,TRIM0#
AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICE NAVIGATION),LT.GRAY,TRIM1#; RUSSIA SPEC&AUDIO-*DA & 13SPEAKER,LT.GRAY,TRIM1#; RUSSIA SPEC&WITH(SMART KEY)&AUDIO-*DA & 13SPEAKER,LT.GRAY,TRIM1#; WITH(SMART KEY)&AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICENAVIGATION),LT.GRAY,TRIM1#
AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICE NAVIGATION),BLACK,TRIM2#; RUSSIA SPEC&AUDIO-*DA & 13SPEAKER,BLACK,TRIM2#; RUSSIA SPEC&WITH(SMART KEY)&AUDIO-*DA & 13SPEAKER,BLACK,TRIM2#; WITH(SMART KEY)&AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICENAVIGATION),BLACK,TRIM2#
62471JCLIP (FOR ROOF SIDE GARNISH)
62472GCLIP (FOR ROOF SIDE GARNISH)
62480AGARNISH ASSY, ROOF SIDE, INNER LH
IVORY,TRIM0#; RUSSIA SPEC&WITH(SMART KEY),IVORY,TRIM0#
LT.GRAY,TRIM1#; RUSSIA SPEC&WITH(SMART KEY),LT.GRAY,TRIM1#
BLACK,TRIM2#; RUSSIA SPEC&WITH(SMART KEY),BLACK,TRIM2#
RUSSIA SPEC&WITH(SMART KEY)&AUDIO-*DA & 13SPEAKER,IVORY,TRIM0#; WITH(SMART KEY)&AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICENAVIGATION),IVORY,TRIM0#
RUSSIA SPEC&WITH(SMART KEY)&AUDIO-*DA & 13SPEAKER,LT.GRAY,TRIM1#; WITH(SMART KEY)&AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICENAVIGATION),LT.GRAY,TRIM1#
RUSSIA SPEC&WITH(SMART KEY)&AUDIO-*DA & 13SPEAKER,BLACK,TRIM2#; WITH(SMART KEY)&AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICENAVIGATION),BLACK,TRIM2#
AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICE NAVIGATION),IVORY,TRIM0#; RUSSIA SPEC&AUDIO-*DA & 13SPEAKER,IVORY,TRIM0#
AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICE NAVIGATION),LT.GRAY,TRIM1#; RUSSIA SPEC&AUDIO-*DA & 13SPEAKER,LT.GRAY,TRIM1#
AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICE NAVIGATION),BLACK,TRIM2#; RUSSIA SPEC&AUDIO-*DA & 13SPEAKER,BLACK,TRIM2#
WITH(SMART KEY),IVORY,TRIM0#
WITH(SMART KEY),LT.GRAY,TRIM1#
WITH(SMART KEY),BLACK,TRIM2#
64393GRILLE, REAR SPEAKER, NO.2 RH
AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICE NAVIGATION),IVORY,TRIM0#; RUSSIA SPEC&AUDIO-*DA & 13SPEAKER,IVORY,TRIM0#; RUSSIA SPEC&WITH(SMART KEY)&AUDIO-*DA & 13SPEAKER,IVORY,TRIM0#; WITH(SMART KEY)&AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICENAVIGATION),IVORY,TRIM0#
AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICE NAVIGATION),LT.GRAY,TRIM1#; RUSSIA SPEC&AUDIO-*DA & 13SPEAKER,LT.GRAY,TRIM1#; RUSSIA SPEC&WITH(SMART KEY)&AUDIO-*DA & 13SPEAKER,LT.GRAY,TRIM1#; WITH(SMART KEY)&AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICENAVIGATION),LT.GRAY,TRIM1#
AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICE NAVIGATION),BLACK,TRIM2#; RUSSIA SPEC&AUDIO-*DA & 13SPEAKER,BLACK,TRIM2#; RUSSIA SPEC&WITH(SMART KEY)&AUDIO-*DA & 13SPEAKER,BLACK,TRIM2#; WITH(SMART KEY)&AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICENAVIGATION),BLACK,TRIM2#
64394GRILLE, REAR SPEAKER, NO.2 LH
AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICE NAVIGATION),IVORY,TRIM0#; RUSSIA SPEC&AUDIO-*DA & 13SPEAKER,IVORY,TRIM0#; RUSSIA SPEC&WITH(SMART KEY)&AUDIO-*DA & 13SPEAKER,IVORY,TRIM0#; WITH(SMART KEY)&AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICENAVIGATION),IVORY,TRIM0#
AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICE NAVIGATION),LT.GRAY,TRIM1#; RUSSIA SPEC&AUDIO-*DA & 13SPEAKER,LT.GRAY,TRIM1#; RUSSIA SPEC&WITH(SMART KEY)&AUDIO-*DA & 13SPEAKER,LT.GRAY,TRIM1#; WITH(SMART KEY)&AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICENAVIGATION),LT.GRAY,TRIM1#
AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICE NAVIGATION),BLACK,TRIM2#; RUSSIA SPEC&AUDIO-*DA & 13SPEAKER,BLACK,TRIM2#; RUSSIA SPEC&WITH(SMART KEY)&AUDIO-*DA & 13SPEAKER,BLACK,TRIM2#; WITH(SMART KEY)&AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICENAVIGATION),BLACK,TRIM2#
67913PLATE, FRONT DOOR SCUFF, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
67914PLATE, FRONT DOOR SCUFF, LH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
67914ACLIP(FOR SCUFF PLATE)
67917APLATE, REAR DOOR SCUFF, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
67918APLATE, REAR DOOR SCUFF, LH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
7104SEAT BELT & CHILD RESTRAINT SEAT
8602SPEAKER
9008011628
main90080-11628
9008011699
main90080-11699
90105A0014
main90105-A0014
9167380616
main91673-80616
40 parts on this diagram · 1 diagram in section
